Amphenol
Industrial Operations
Amphenol Technology (Zhuhai) Co., LTD.
The Cable Assembly Work Instruction

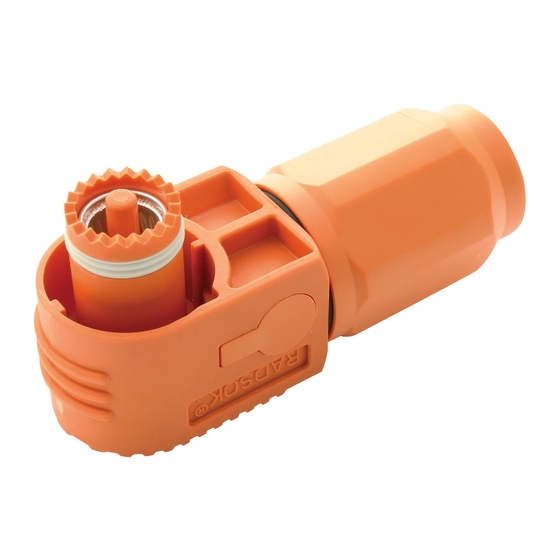

10.3mm Surlok Plus Right Angle Plug Connector
10.3mm Surlok+ 90度插头连接器
Amphenol Technology (Zhuhai) Co., LTD
No.63, Xinghan Road, Sanzao Town, Jinwan, Zhuhai, PRC, 519040
http://www.amphenol-industrial.com
装配作业指导书
Document NO. :
Date: 20171017
Rev.
C
Advertisement
Table of Contents
Related Manuals for Amphenol SLPPC70BSB1
Summary of Contents for Amphenol SLPPC70BSB1

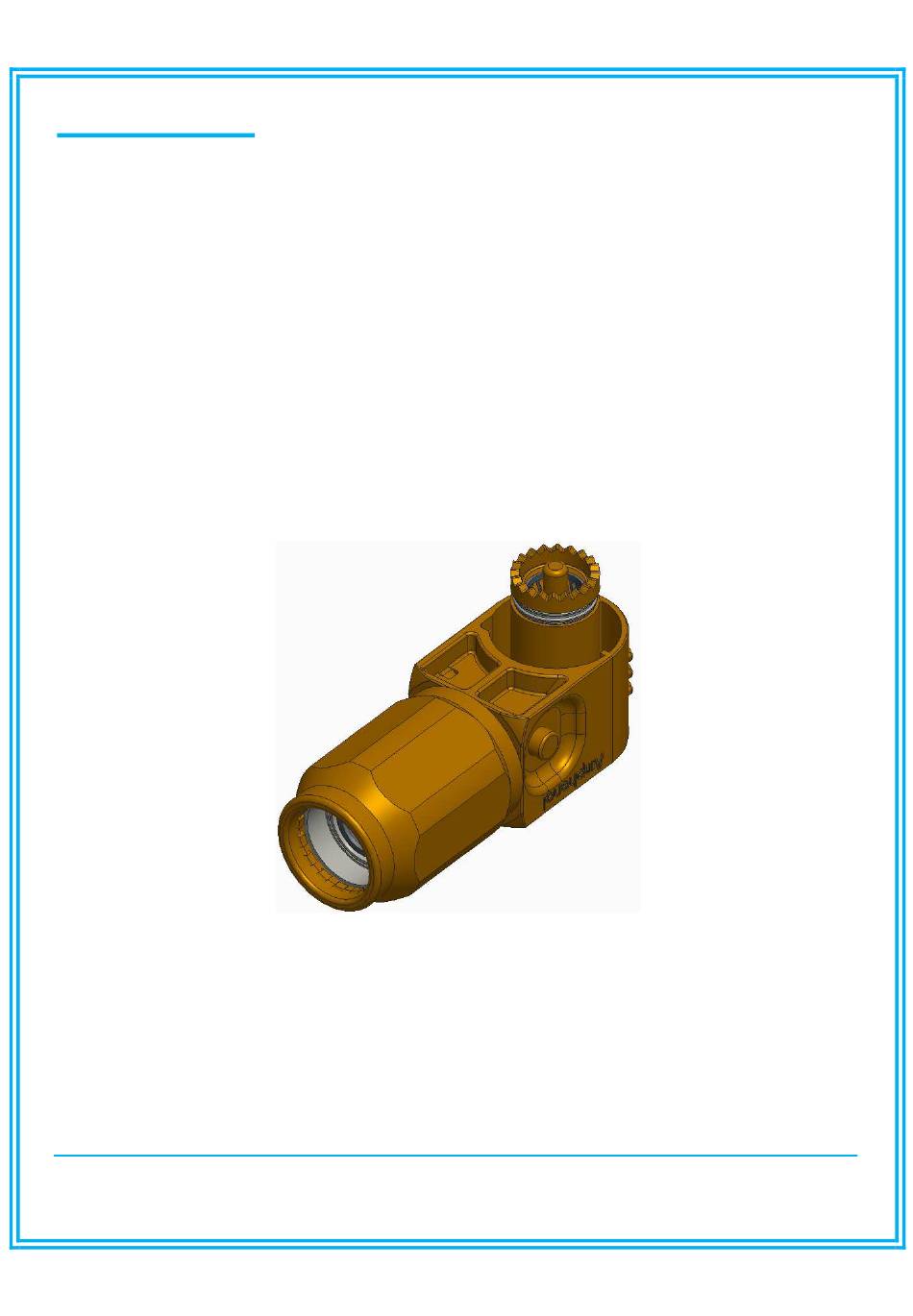

- Page 1 Amphenol Document NO. : Date: 20171017 Industrial Operations Amphenol Technology (Zhuhai) Co., LTD. Rev. The Cable Assembly Work Instruction 装配作业指导书 10.3mm Surlok Plus Right Angle Plug Connector 10.3mm Surlok+ 90度插头连接器 Amphenol Technology (Zhuhai) Co., LTD No.63, Xinghan Road, Sanzao Town, Jinwan, Zhuhai, PRC, 519040...
- Page 2 Part 1: Package contents 第一部分：包装清单 ① ：Connector Body 连接器本体 1-1: Barrel sealing (Not included when no sealing requirement) 前密封圈（无防水要求时不提供此零件） 1-2: O-Ring (Not included when no sealing requirement) 后密封圈（无防水要求时不提供此零件） ② ：Barrel (Only for cable size 50mm or 70mm 套筒(当线材规格为50mm 或者70mm 时使用此套筒) ③...
- Page 3 Part 2: Plug assembly 第二部分：插头组装 Step 1: Wire cutting and stripping （Apply for 50mm & 70 mm & 85 mm Cable ） 和 70 mm 和 85 mm 步骤1：线的裁剪和剥皮（适用于50mm 线材） Stripping conductor: 22±1mm 剥导体长度：22±1mm Step 2: Un-assemble item 2&3 &4&5 over the cable as shown Note: When 50/70mm cable to be used, put the barrel and then the cable conductor.
- Page 4 Step 3: Put the cable conductor into the lug 步骤3：将线材导体部分插入线耳中 Step 4: Crimping the lug as shown 步骤4：如图所示将线耳压接到线材导体部分 10.0±0.5 10.0±0.5 Recommended Recommended Cable size Cable pullout force Length of Side S Dist across Flats F 线材尺寸 线材压接拔出力 推荐压接边长度S 推荐压接平面距离F 50 mm 1500N Min.
- Page 5 Step 5: Install grommet and cable gland and back shell 步骤5：组装橡胶密封圈和密封压盖和后壳 Tighten back shell to the indicated location shown as picture above by hand or tool. 通过手或工具拧紧外壳至上图所示的位置. The recommended torque as below: 推荐扭矩如下： 50mm²: 2.5~3.0N.m 70mm²: 3.5~4.0N.m 85mm²: 3.5~4.0N.m...
