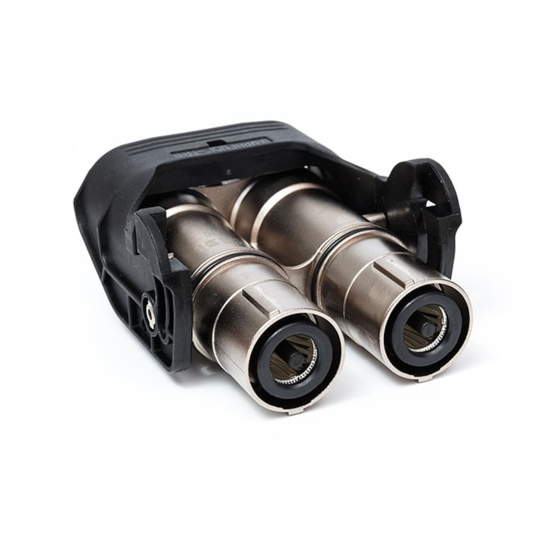

Amphenol PowerLok PL182X-301-50 Manual

2/3pos PowerLok 直头组装式插头安装规范(屏蔽款)
2/3pos PowerLok 180D Plug Assembly Specification(shielded
Notice 请严格按本指引实施装配作业！
:
plug assembly & cable harness operation job!
1
. 线缆准备：按生产需求选择合适尺寸的线缆;
2
. 按如下尺寸剥离 线缆绝缘皮和外被; strip off
cable insulation and jacket as following
size on the right;
3
. 拿取一套产品, 拆包, 拆分零件;
components, disassemble as on the right;
4
. 取各1pcs的①尾盖, ②胶圈和③不锈钢环1, 从右边依次穿过线缆;
ring and ③SS ring1, have cable insert through their holes from right in sequence;
5,
取1pcs的④不锈钢环2自左端穿过线缆, 并与③不锈钢环1按压在一起, 并剪去突出的多余的线头； take a
④SS ring2, load it to the cable end on the left, press together with ③SS ring1, cut off excessive braiding
wire;
®
please strictly follow this manual to proceed
take 1set plug
③SS ring1
不锈钢环1
④SS ring2
不锈钢环2
1 of 3
Doc NO.: AI-PL182&183-301-1
take right-sized cable according to production plan;
⑤R4 holder with anti-rotation
chamfer 带止转切面的R4端子
take each 1pcs of ①end cap, ②rubber
②Rubber
ring胶圈
③SS ring1
不锈钢环1
™
)
①end cap
尾盖
Rev. 2
