Assembly Instructions-C75
MCX
STRAIGHT CONNECTORS FOR SEMI-RIGID CABLE
Amphenol
Number
919-114J-51SX
919-120P-51SX
c
d
CONTACT MUST BUTT HERE
APPLY HEAT
FEED SOLDER HERE
Amphenol Corporation Tel: 800-627-7100
a
Contact
Connector
Cable
Type
RG-/U
Straight Jack
.086 Semi-Rigid
Straight Plug
.086 Semi-Rigid
Step 1
Step 2
Step 3
340
b
Connector Body
Stripping Dimensions, inches (mm)
c
d
.118
.039
.100
–

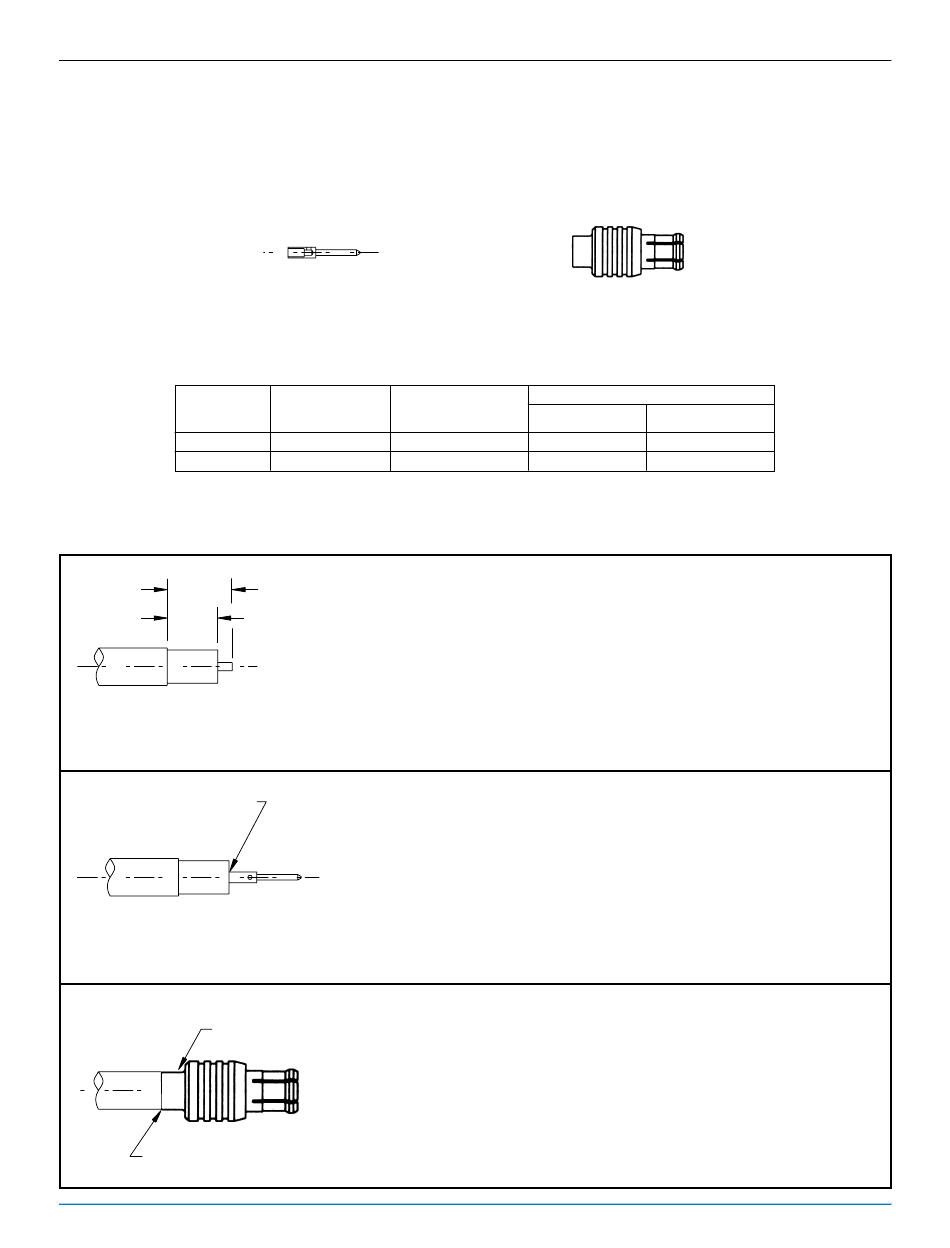

Prepare cable according to diagram. Remove burrs from
outer/inner conductors of cable.
Solder center contact "a" to inner conductor of cable using
Sn60 solder. Contact must butt on dielectric of cable as
shown.
Insert contact into body assembly "b" as shown. Holding
body and cable firmly, apply heat as shown and feed solder
(Sn-60) as indicated. Allow to cool. The dimension from the
contact tip to the end of the body should be .006 ±.007.
