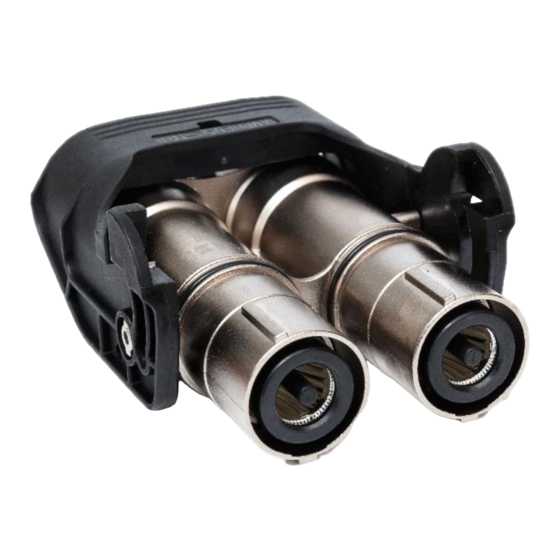

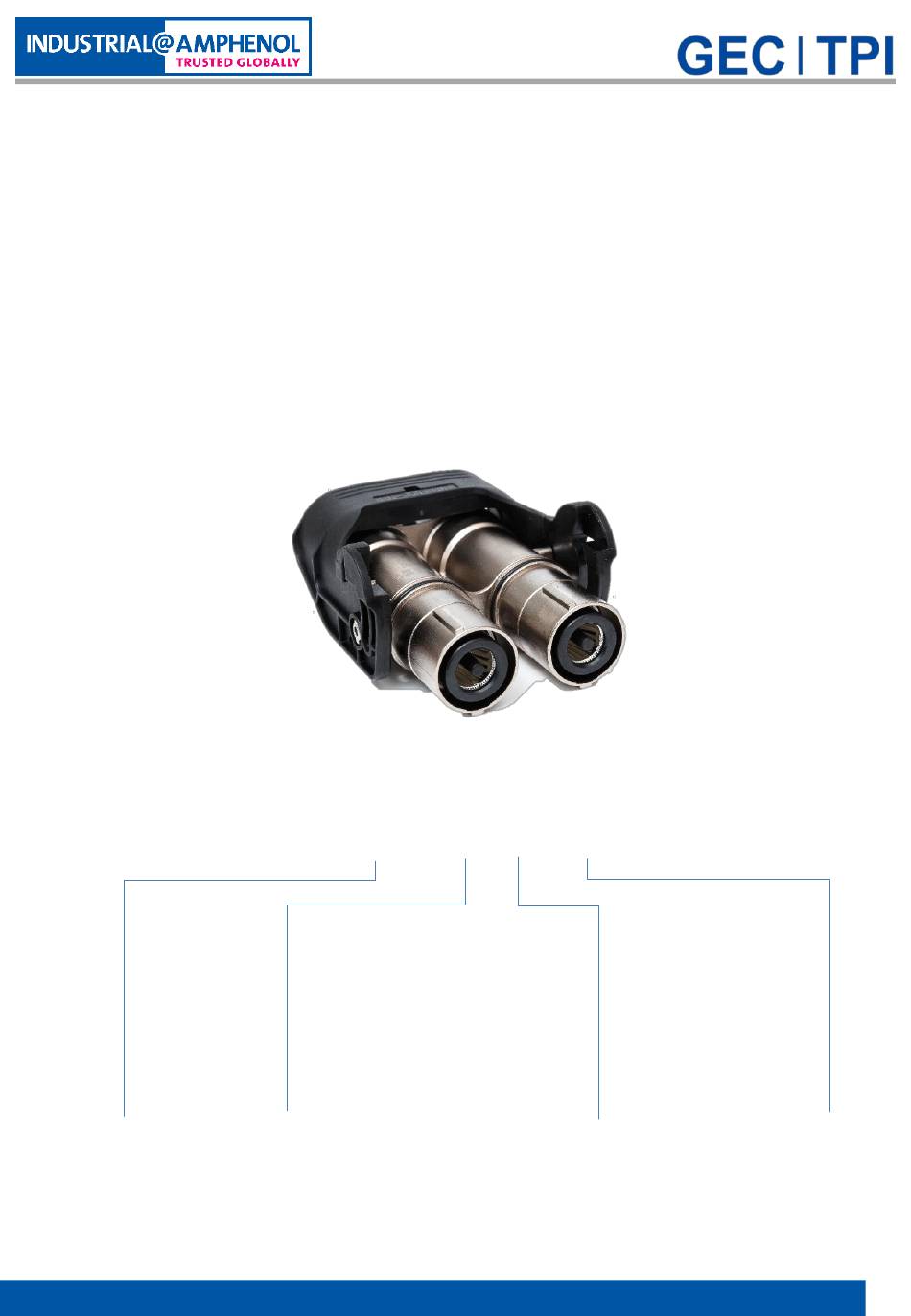

- Page 1 Manual P/N：8P1174 Rev.01 20221115 PL182X-301-70-G95 二芯 70mm2 直头插头组装规范 PL182X-301-70-G95 2 POS 70mm2 180D Straight Plug Assembly Manual PL182(X)-30(1)-70-G95 高压互锁 0：无 线缆大小 1：有 Cable Size 线缆类型 键位 HVIL X 键 福斯 0：NO Y 键 FHLR2GCB2G 1：WITH www.amphenol-gec.com...
- Page 2 PL182X-301-70-G95 二芯 70mm2 直头插头组装规范 PL182X-301-70-G95 2 POS 70mm2 180D Straight Plug Assembly Manual 第一部分：包装清单 Part 1： Package contents ③ ① ② ⑥ ⑧ ④ ⑤ ⑦ ① 屏蔽壳组件 Shielding shell assembly ×1 ② 带高压弹片的绝缘筒 Insulation sleeve with HVIL contact spring ×2 （300系列无高压互锁端子...
- Page 3 PL182X-301-70-G95 二芯 70mm2 直头插头组装规范 PL182X-301-70-G95 2 POS 70mm2 180D Straight Plug Assembly Manual 安装步骤 Assembly Instruction 步骤1：取出连接器, 如上页图示拆开零件 Step1：Take out the connector and take it apart as the picture shown on the previous page. 步骤2：选取合适线缆(参考手册最后的附录），按照表1尺寸剥离绝缘皮和外皮 Step2：Select the right cable(refer to the appendix), prepare the cable according to the sketch and Table 1 below 导体...
- Page 4 PL182X-301-70-G95 二芯 70mm2 直头插头组装规范 PL182X-301-70-G95 2 POS 70mm2 180D Straight Plug Assembly Manual 步骤5： 调试好免换模压接机BZW-6C，将端子压接在线材上(详细规格参照手册最后的附录） Step5： Set up the mould-free crimp machine BZW-6C, Then crimp the terminal on the wire. (please refer to the appendix at the end of this manual for more crimping information) 横截面...
- Page 5 PL182X-301-70-G95 二芯 70mm2 直头插头组装规范 PL182X-301-70-G95 2 POS 70mm2 180D Straight Plug Assembly Manual ① 屏蔽壳组件 Shield shell assembly 将密封圈推到底 Push the seal to the bottom 步骤9：建议客户参考下面的测试参数,对线束进行绝缘电阻测试和耐压测试 Step9：Insulation resistance and dielectric withstand voltage tests are obligated to be done according to below test parameters to guarantee the good electric performance of the whole harness 9-1 绝缘电阻测试...
- Page 6 PL182X-301-70-G95 二芯 70mm2 直头插头组装规范 PL182X-301-70-G95 2 POS 70mm2 180D Straight Plug Assembly Manual 附录APPENDIX 线缆压接的参考规范 Reference specification for cable crimping 导体外径 压接高度H(mm) 压接宽度 参考保持力 导体结构 电线外径 线缆型号 电线尺寸 (mm) (mm) (mm) Crimping W(mm) Retention Cable Type Cable Size Conductor Conductor...
- Page 7 Specifications are subject to change without notice. Contact your nearest Amphenol Corporation Sales Office for the latest specifications. All statements, information and data given herein are believed to be accurate and reliable but are presented without guarantee, warranty, or responsibility of any kind, expressed or implied.
