Amphenol
Industrial Operations
Amphenol Technology (Zhuhai) Co., LTD.
The Cable Assembly Work Instruction

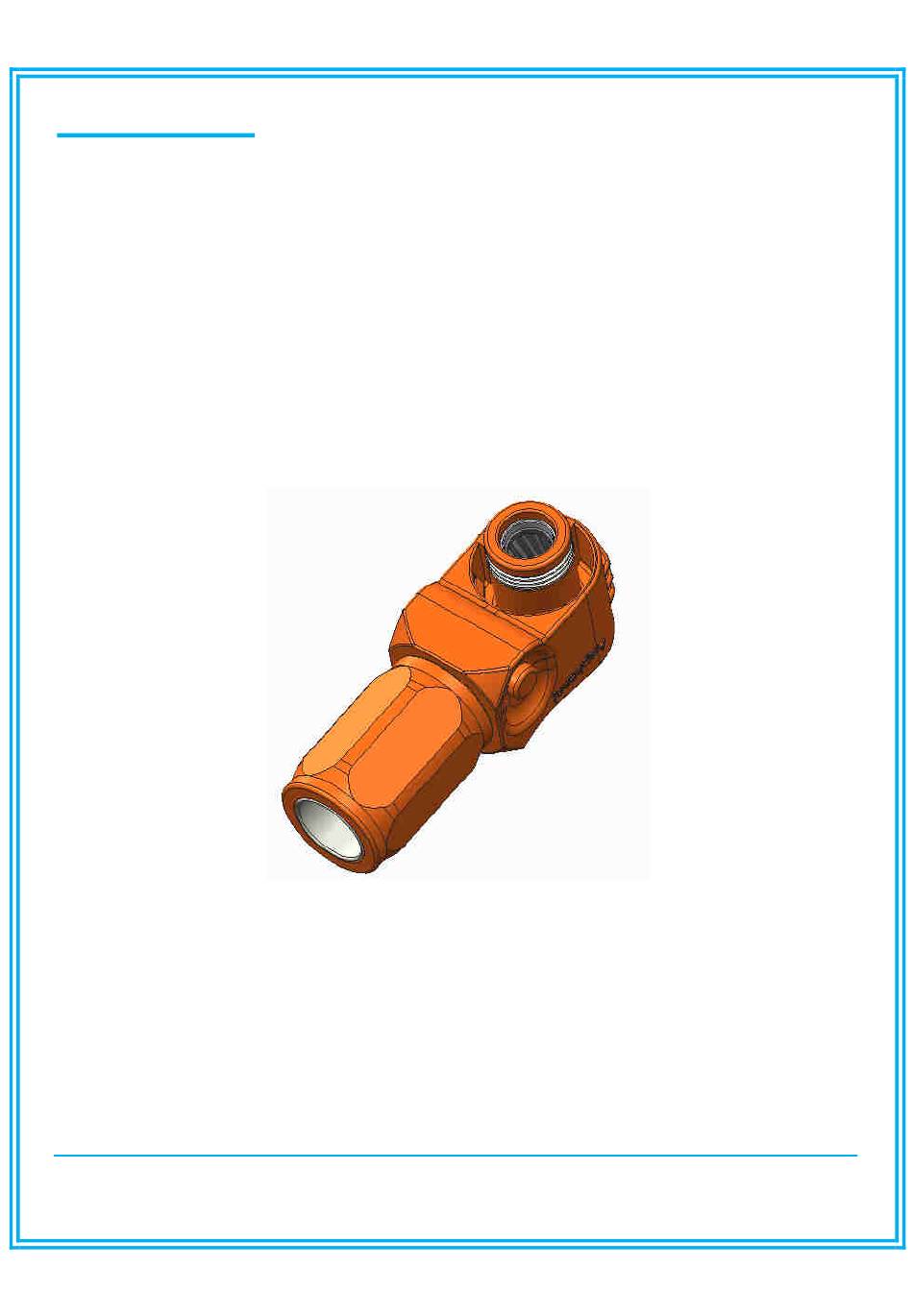

5.70mm Surlok Plus Right Angle Plug Connector
5.70mm Surlok+ 90度插头连接器
Amphenol Technology (Zhuhai) Co., LTD
No.63, Xinghan Road, Sanzao Town, Jinwan, Zhuhai, PRC, 519040
http://www.amphenol-industrial.com
装配作业指导书
Document NO. :
Date: 20171017
Rev.
C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amphenol Surlok Plus SLPPA16BSR
Summary of Contents for Amphenol Surlok Plus SLPPA16BSR
- Page 1 Amphenol Document NO. : Date: 20171017 Industrial Operations Amphenol Technology (Zhuhai) Co., LTD. Rev. The Cable Assembly Work Instruction 装配作业指导书 5.70mm Surlok Plus Right Angle Plug Connector 5.70mm Surlok+ 90度插头连接器 Amphenol Technology (Zhuhai) Co., LTD No.63, Xinghan Road, Sanzao Town, Jinwan, Zhuhai, PRC, 519040...
- Page 2 Part 1: Package contents 第一部分：包装清单 For 16mm2 For 25mm2 ① ：Connector Body 连接器本体 1-1: Barrel sealing (Not included when no sealing requirement) 前密封圈（无防水要求时不提供此零件） 1-2: O-Ring (Not included when no sealing requirement) 后密封圈（无防水要求时不提供此零件） ：Barrel(Only for cable size 16mm ② 套筒(当线材规格为16mm 时使用此套筒) ③...
- Page 3 Part 2: Plug assembly 第二部分：插头组装 Step 1: Wire cutting and stripping （Apply for 16mm Cable ） & 25 mm 步骤1：线的裁剪和剥皮（适用于16mm 和 25 mm 线材） Stripping conductor: 18±1mm 剥导体长度：18±1mm Step 2: Un-assemble item 3&4 over the cable as shown 步骤2：如下所示,将密封圈和后壳套在线材上 Item 3 Grommet Item 4 Back shell...
- Page 4 Step 3: Put the barrel and the cable conductor into the lug 步骤3：将套筒和线材导体部分插入线耳中 Tie closely in here 此处需贴紧 Step 4: Crimping the lug as shown 步骤4：如图所示将线耳压接到线材导体部分 Gap is 1.0mm max. 间隙不可超过1.0mm Cable size cable range Crimping heigth Cable pullout force 线材尺寸...
- Page 5 Step 5: Install grommet and back shell 步骤5：组装橡胶密封圈和后壳 Recommended gap is 0.9~1.0mm. 推荐间隙0.9~1.0mm. Tighten back shell to the indicated location shown as picture above by hand or tool. 通过手或工具拧紧外壳至上图所示的位置.。 The recommended torque is 0.7~0.8N.m 推荐扭矩0.7~0.8N.m...
