Krone Comprima F 155 XC X-treme Original Operating Instructions page 55

Moving parking support into support position
Prerequisite:
– The machine is attached to the tractor.
2
1
4
5

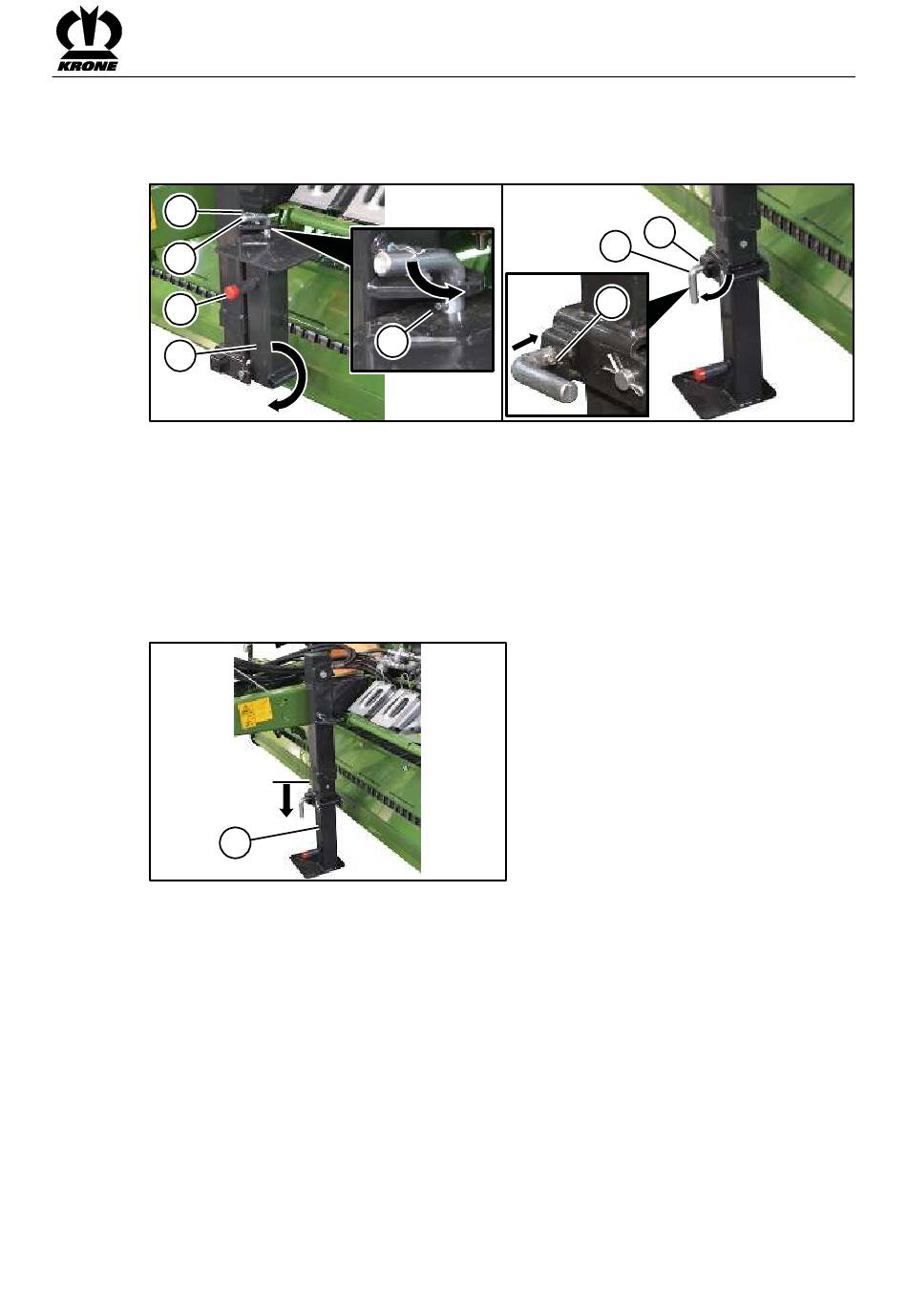

Fig. 24
• Loosen the bolt (1) from the locking spring (2) and turn it by 90° to the right so that the
locking pin (3) is no longer locked.
• Pull out bolt (1).
CAUTION! Crushing hazard caused by swinging down support jack! Only fold up or fold
down the support jack by means of handle (4).
• Fold down support jack (5) by 180°.
• Guide bolt (1) with handle to the right into the opening (6) and turn it by 90° to the left so
that the locking pin (3) locks.
1
Fig. 25
• Extend support jack (1) via control unit of tractor.
3
COM00411
6
1
3
Safety
COM00412
55
