C8051F064-EK
7. Evaluation board
The C8051F064 Evaluation Kit includes an evaluation board with a C8051F064 device pre-installed for evaluation
and preliminary software development. Numerous input/output (I/O) connections are provided to facilitate
prototyping using the evaluation board. Refer to Figure 3 for the locations of the various I/O connectors.
J1
DEBUG USB port connector for code download and on-chip debug functions
J2
Evaluation board power supply selector
J3
Analog I/O terminal block
J4
External voltage reference supply selector
J5
External conversion start header
J7
DATA USB port connector for data communications with the PC
J6, J8
Op-amp supply voltage headers
J11, J14 External memory interface connectors
J12, J13 ADC1 & ADC0; BNC connectors for analog inputs
J15
Port 0 header
J16
ADC differential input header
6
RESET
P3.6
ADC1
C8051
J12
J16
ADC0
J5
J13
V+
Pin 1
J6
J8
V-

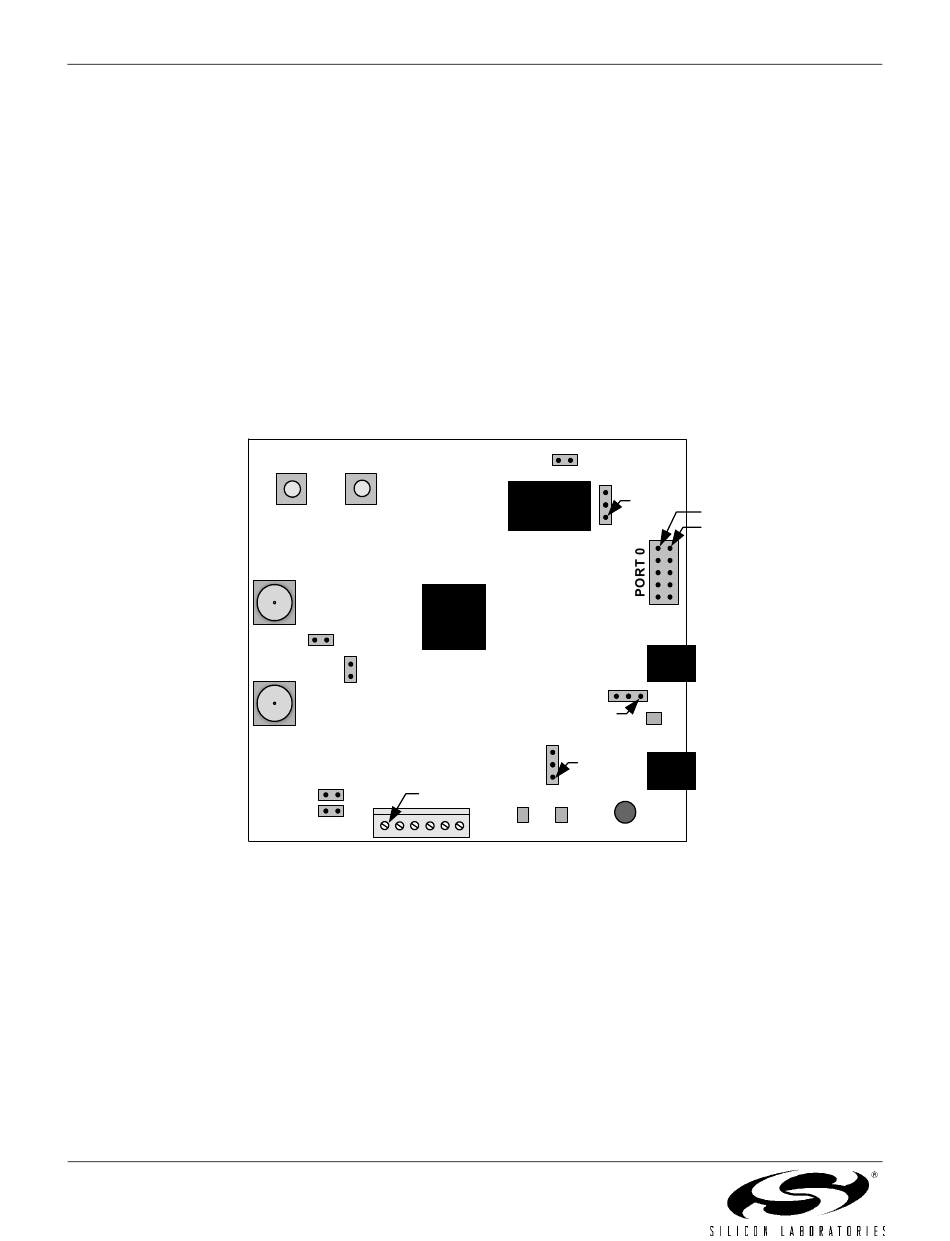

Figure 3. C8051F064 Evaluation Board
J11
SRAM
J14
F064
+3.3V
J2
Pin 1
5VDD
Pin 1
J4
J4
D1
D3
D4
J3
P1.6 PWR
STOP/RUN
Rev. 0.2
Pin 1
Pin 1
Pin 2
J15
DEBUG
J1
D2
DATA
J7
