1. Kit Contents
C8051F064 Evaluation Kits contain the following items:
C8051F064 Evaluation Board
Silicon Laboratories Evaluation Kit IDE and Product Information CD-ROM. CD content includes the following:
Silicon Laboratories Integrated Development Environment (IDE)
Keil Software 8051 Development Tools (evaluation assembler, linker, and "C" compiler)
Source code examples and register definition files
Documentation
Evaluation Kit Demos, C8051F064 ADC Demo
USB Cable
C8051F064 Evaluation Kit User's Guide
2. Kit Overview
Figure 1 illustrates the block diagram of the C8051F064 Evaluation Kit. The board includes an analog front end to
signal condition and digitize (through the C8051F064) analog input signals. The board also includes two USB ports
to transfer conversions to a PC: the DATA Port and the Self-Demo/IDE Debug port. The DATA port consists of a
Silicon Laboratories CP2101 (UART to USB bridge) and a USB connector. The Self-Demo/IDE Debug port
consists of Silicon Laboratories' debug interface hardware and a USB connector.
Power for the C8051F064 board can be supplied from either USB connection. An alternative lower noise supply
can be used for better measurement performance if desired. Refer to Section 7 "Evaluation board" for more details.
Analog Front End
The C8051F064EK has three purposes:
Noise Performance Demonstration—Demonstrates 16-bit dc performance; displays FFT plot and key
parameters.
Performance Evaluation—Facilitates easy programming and analog front end input for dynamic performance
evaluation of ac signals.
Tools Test Drive—Allows easy evaluation of the Silicon Laboratories Integrated Development Environment
(IDE) (code download and on-chip debug function).
Rev. 0.2 10/04
K
V A L U A T I O N
ALT. VOLT SUPPLY
VOLT
SUPPLY
INTERFACE
C8051F064
BNC
16-BIT
SERIAL
SAR
INPUT
I/F
CKT
16-BIT
DEBUG
SAR
I/F
BNC
Dual 1 Msps High-Resolution Data Acquisition
INL: ±0.75 LSB
SiNAD: 89 dB
Power: 20 mW

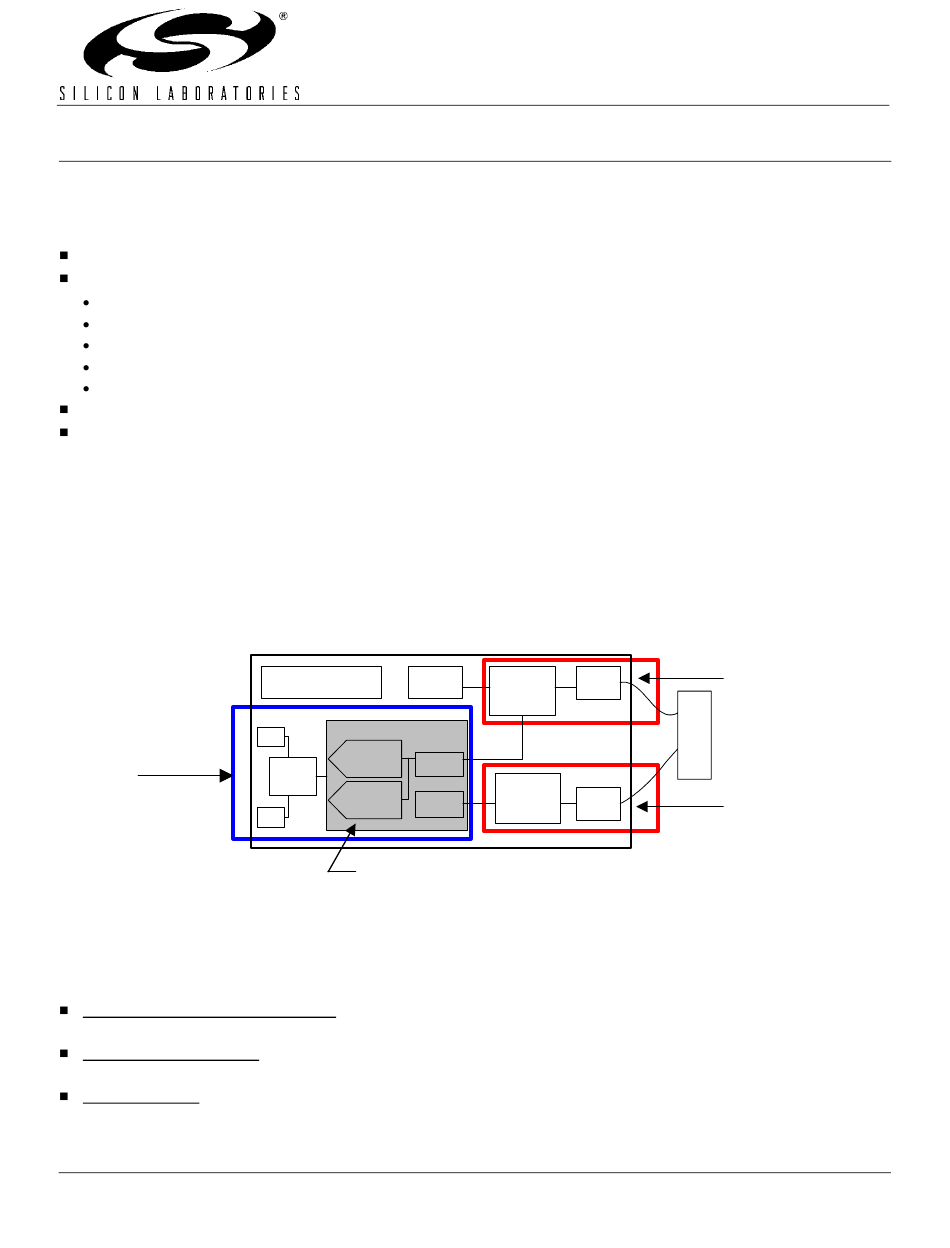

Figure 1. C8051F064 Evaluation Board Block Diagram
Copyright © 2004 by Silicon Laboratories
C 8 0 5 1 F 0 6 4 - E K
U
'
G
I T
S E R
S
U I D E
USB
DATA
CONN
PORT
PROGRAM
USB
/DEBUG
CONN
PORT
Data Port
PC
1. Self-Demo Port
2. IDE Debug Port
(Tools Test Drive)
C8051F064-EK
