1. Kit Contents
The C8051F04x Development Kit contains the following items:
•

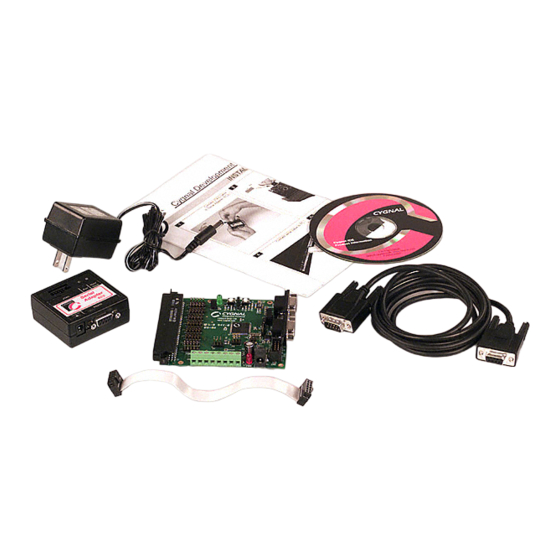

Two C8051F040 Target Boards
•
Serial Adapter (RS232 to Target Board Debug Interface Protocol Converter)
•
Silicon Laboratories IDE and Product Information CD-ROM. CD content includes:
•
Silicon Laboratories Integrated Development Environment (IDE)
•
Keil 8051 Development Tools (macro assembler, linker, evaluation 'C' compiler)
•
Installation Utility (SETUP.EXE)
•
Source code examples and register definition files
•
Documentation
•
Two AC to DC Power Adapters
•
RS232 Serial Cable
•
CAN Cable (DB-9 connectors)
•
7" Ribbon Cable
•
Quick-start Guide
•
C8051F04x Development Kit User's Guide (this document)
2. Hardware Setup
The target board is connected to a PC running the Silicon Laboratories IDE via the Serial Adapter as shown in
Figure 1.
1. Connect one end of the RS232 serial cable to a Serial (COM) Port on the PC.
2. Connect the other end of the RS232 serial cable to the DB-9 connector on the Serial Adapter.
3. Connect the Serial Adapter to the JTAG connector on the target board with the10-pin ribbon cable.
4. Connect the AC/DC power adapter to power jack P1 on the target board.
PC
Serial Port
Note: The Reset switch on the target board is disabled when the serial adapter is connected to the
target board. Use the Reset button in the Silicon Laboratories IDE toolbar to reset the target when
connected to the Serial Adapter.
Rev. 0.4 1/04
E V E L O P M E N T
Serial
Serial
Adpater
Cable

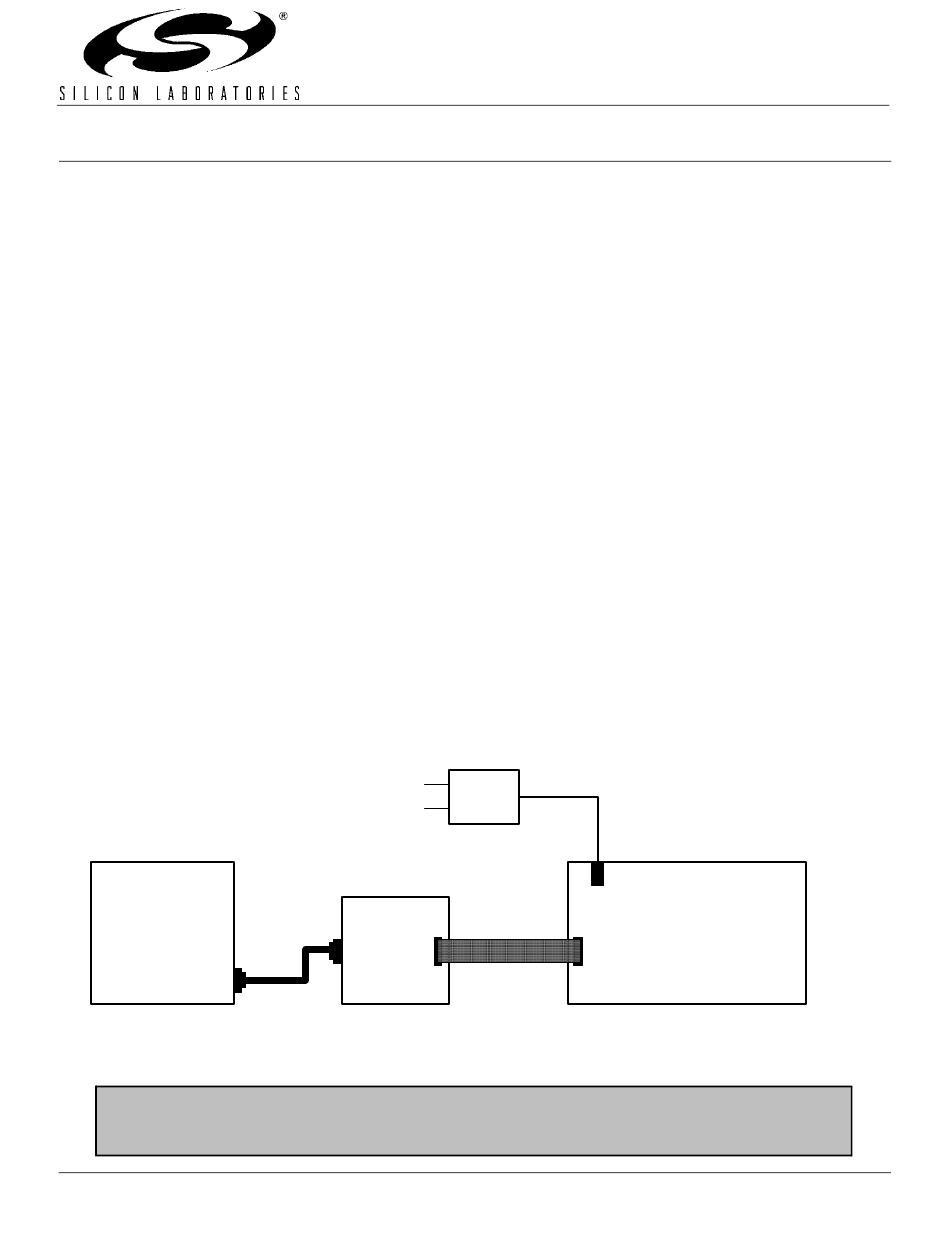

Figure 1. Hardware Setup
Copyright © 2004 by Silicon Laboratories
C 8 0 5 1 F 0 4 x - D K
K
U
'
G
I T
S E R
S
AC/DC
Adapter
Ribbon Cable
U I D E
Target Board
C8051F04x-DK
