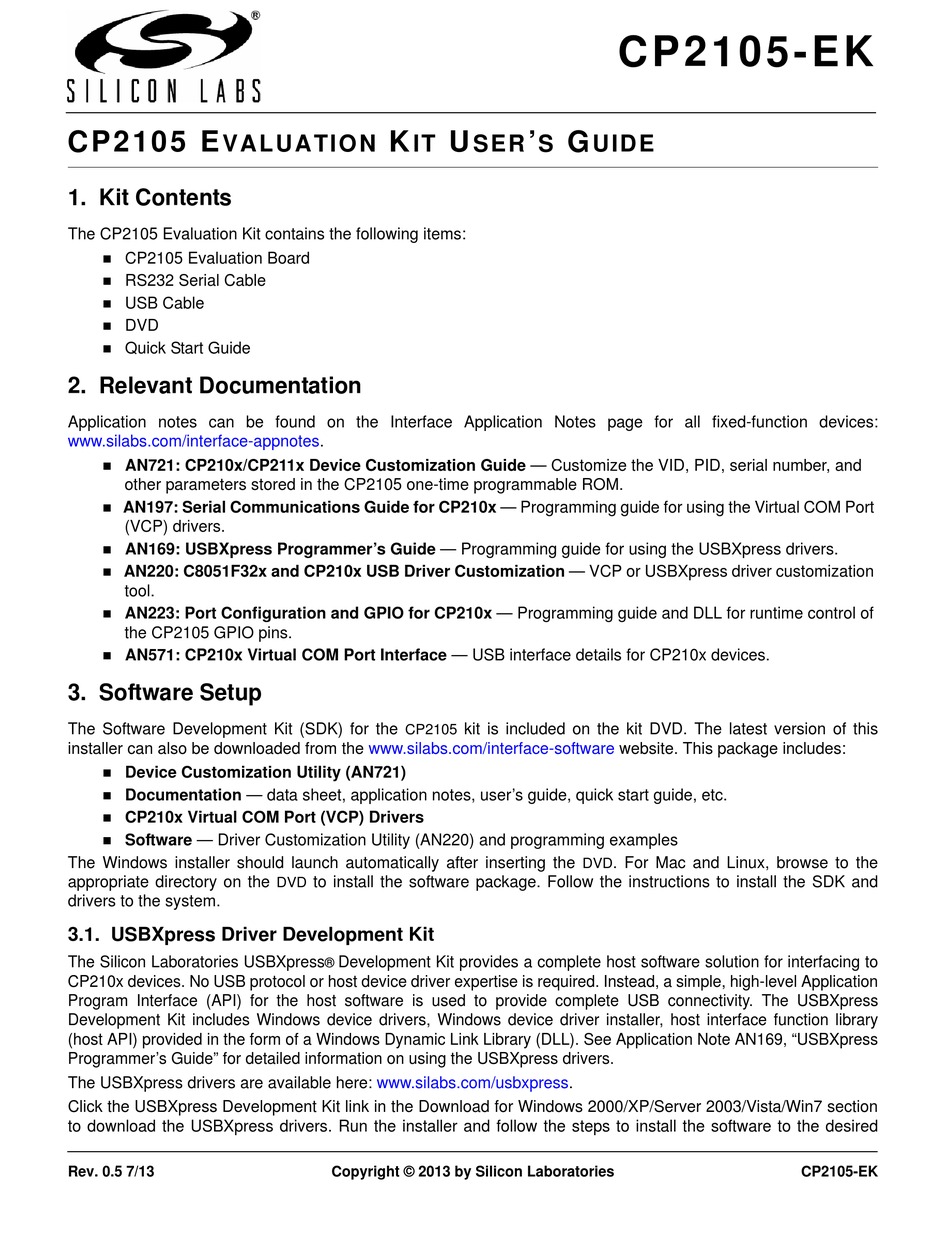

CP2105 E
VALUATION

1. Kit Contents

The CP2105 Evaluation Kit contains the following items:

CP2105 Evaluation Board

RS232 Serial Cable

USB Cable

DVD

Quick Start Guide
2. Relevant Documentation
Application notes can be found on the Interface Application Notes page for all fixed-function devices:
www.silabs.com/interface-appnotes.

AN721: CP210x/CP211x Device Customization Guide — Customize the VID, PID, serial number, and
other parameters stored in the CP2105 one-time programmable ROM.

AN197: Serial Communications Guide for CP210x — Programming guide for using the Virtual COM Port
(VCP) drivers.

AN169: USBXpress Programmer's Guide — Programming guide for using the USBXpress drivers.

AN220: C8051F32x and CP210x USB Driver Customization — VCP or USBXpress driver customization
tool.

AN223: Port Configuration and GPIO for CP210x — Programming guide and DLL for runtime control of
the CP2105 GPIO pins.

AN571: CP210x Virtual COM Port Interface — USB interface details for CP210x devices.

3. Software Setup

The Software Development Kit (SDK) for the
installer can also be downloaded from the

Device Customization Utility (AN721)

Documentation — data sheet, application notes, user's guide, quick start guide, etc.

CP210x Virtual COM Port (VCP) Drivers

Software — Driver Customization Utility (AN220) and programming examples
The Windows installer should launch automatically after inserting the
appropriate directory on the
drivers to the system.
3.1. USBXpress Driver Development Kit
The Silicon Laboratories USBXpress
CP210x devices. No USB protocol or host device driver expertise is required. Instead, a simple, high-level Application
Program Interface (API) for the host software is used to provide complete USB connectivity. The USBXpress
Development Kit includes Windows device drivers, Windows device driver installer, host interface function library
(host API) provided in the form of a Windows Dynamic Link Library (DLL). See Application Note AN169, "USBXpress
Programmer's Guide" for detailed information on using the USBXpress drivers.
The USBXpress drivers are available here: www.silabs.com/usbxpress.
Click the USBXpress Development Kit link in the Download for Windows 2000/XP/Server 2003/Vista/Win7 section
to download the USBXpress drivers. Run the installer and follow the steps to install the software to the desired
Rev. 0.5 7/13
K
U
IT
CP2105
www.silabs.com/interface-software
to install the software package. Follow the instructions to install the SDK and
DVD
Development Kit provides a complete host software solution for interfacing to
®
Copyright © 2013 by Silicon Laboratories
C P 2 1 0 5 - E K
'
G
SER
S
UIDE
kit is included on the kit DVD. The latest version of this
website. This package includes:
. For Mac and Linux, browse to the
DVD
CP2105-EK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP2105 and is the answer not in the manual?

Questions and answers

Summary of Contents for Silicon Laboratories CP2105

  • Page 1: Kit Contents

     AN721: CP210x/CP211x Device Customization Guide — Customize the VID, PID, serial number, and other parameters stored in the CP2105 one-time programmable ROM.  AN197: Serial Communications Guide for CP210x — Programming guide for using the Virtual COM Port (VCP) drivers.
  • Page 2: Cp2105 Hardware Interface

    1. Connect one end of the USB cable to a USB Port on the PC. 2. Connect the other end of the USB cable to the USB connector on the CP2105 evaluation board. 3. Connect one end of the RS232 serial cable to the DB-9 connector on the CP2105 evaluation board.
  • Page 3: Cp2105 Software Interface

    5. CP2105 Software Interface If the Virtual COM Port drivers are used, the CP2105 will appear as two COM ports in the Device Manager, as shown in Figure 2. The CP2105 will always use the lowest available COM ports for operation. For instance, if COM ports 1 and 2 are in use by other peripherals and applications, the CP2105 will use COM 3 and COM 4.
  • Page 4: Target Board

    6.1. LED Headers (J2, J3) Connectors J2 and J3 are provided to allow access to the GPIO pins on the CP2105 when in GPIO mode. Place shorting blocks on J2 and J3 to connect the GPIO pins to the five green LEDs DS0–DS4. These LEDs can be used to indicate active communications through the CP2105.
  • Page 5 Two RS232 transceiver circuits and DB-9 connectors (P2, P3) are provided on the evaluation board to connect the CP2105 virtual serial ports to external serial devices. See Table 3 for the RS232 P2 and P3 pin descriptions. The J2 and J6 connectors are provided to facilitate direct access to the CP2105’s UART signals. Shorting blocks on J1 are required to connect the Standard UART signals to P2, and the shorting blocks on J6 are required to connect the Enhanced UART signals to P3.
  • Page 6 VIO from an external source.  Pins 3–4 connect the main +3 V net to the CP2105 VDD (Pin 6). The main +3 V net powers the other components (five green LEDs and RS-232 Sipex Part) on the board. 6.5. SUSPEND LED Source Selector(J7, J8) These headers (J7, J8) are included on the evaluation board to provide several options for the SUSPEND LED source.
  • Page 7 CP2105-EK 7. Schematic Rev. 0.5...
  • Page 8: Document Change List

    Revision 0.2 to Revision 0.3  Updated Figure 3 with shorting blocks installed. Revision 0.3 to Revision 0.4  Updated "Figure 2. CP2105 in Device Manager" on page 3. Revision 0.4 to Revision 0.5  Updated “1. Kit Contents” to change CD-ROM to DVD.
  • Page 9 CP2105-EK OTES Rev. 0.5...
  • Page 10: Contact Information

    Silicon Laboratories products are not designed, intended, or authorized for use in applications intended to support or sustain life, or for any other application in which the failure of the Silicon Laboratories product could create a situation where per- sonal injury or death may occur.
