Air-Powered
HPUTP Series
Hydraulic Pump
Operating Instructions for:
HPUTP150001K
HPUTP150002K
Form No. TAP 11024
Rev. 5 March 8, 2012
Advertisement
Table of Contents
Related Manuals for SPX HPUTP Series
Summary of Contents for SPX HPUTP Series
- Page 1 Operating Instructions for: HPUTP150001K HPUTP150002K SPX Bolting Systems Tel: +44 (0) 1670 850580 Unit 4, Wansbeck Business Park Fax: +44 (0) 1670 850655 Rotary Parkway Ashington Northumberland NE63 8QW spxboltingsystems.com Original Instructions Air-Powered HPUTP Series Hydraulic Pump Form No. TAP 11024 Rev.
- Page 2 Form No. TAP 11024 Rev. 5 March 8, 2012 © SPX...
-
Page 3: Table Of Contents
HPUTP Series Air/Hydraulic Pumps ........ -
Page 4: Description
Description The HPUTP series hydraulic pumps are designed to have a maximum of 1500 bar (21,750 psi) at a flow rate of 0.72 litres/min (44 cu. in/min) or 1.14 liters/min (70 cu.in/min) depending on model. All pumps come fully assembled, less fluid, and ready for work. -
Page 5: Safety Symbols And Definitions
Only the user can decide the suitability of this product in these conditions or extreme environments. SPX Hydraulic Technologies will supply information necessary to help make these decisions. Consult your nearest SPX Hydraulic Technologies facility, refer to SPX Hydraulic Technologies Facilities in this document. - Page 6 Safety Precautions continued • The pump must be used in an upright position. • Repairs to the pump unit should only be carried out by SPX Bolting Systems or an authorized Service Agent. • Do not connect pump to hydraulic system powered by another pump.
- Page 7 • Keep the cylinder clean at all times. • Always use protective covers on disconnected quick couplers. • Limiting the stroke and pressure on all cylinders will prolong their life. Form No. TAP 11024 Rev. 5 March 8, 2012 © SPX...
-
Page 8: Initial Setup
Loose pieces of sealant could travel through the system and obstruct the flow of fluid or cause jamming of precision-fit parts. Form No. TAP 11024 Rev. 5 March 8, 2012 © SPX... -
Page 9: Operating Instructions
Although the pump may be have been pre-set to stall at a certain pressure, always monitor the pressure gauge during pressure build up. Always depressurize before leaving the system unattended. Form No. TAP 11024 Rev. 5 March 8, 2012 © SPX... -
Page 10: Performance Specifications

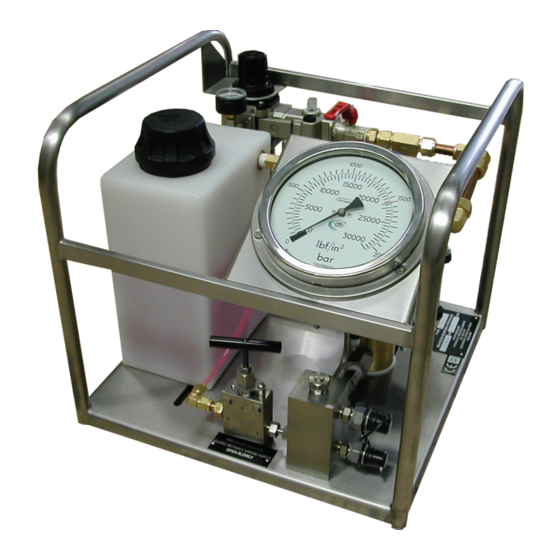

Pressure Release Valve Air Pressure Gauge Lubricator Oil Level Reservoir Filler Cap Air Filter/Regulator 6 in. Oil Pressure Gauge Fluid Reservoir Air Lubricator Fluid Outlet(s) Water Trap Lubricator Drip Adjuster Form No. TAP 11024 Rev. 5 March 8, 2012 © SPX... -
Page 11: General Maintenance
• Compatible with the hydraulic fluid used. A system that does not meet these requirements can fail, possibly resulting in serious injury. If you are in doubt about the components of your hydraulic system, contact SPX Bolting Systems or authorized service agent. - Page 12 END OF LIFE AND DISPOSAL In accordance with our End of Life Policy, should the product be no longer required for use, it should be returned to SPX Bolting Systems where it shall be disposed of in a safe and environmentally friendly manner.
-
Page 13: Spx Bolting Systems Facilities
SPX Bolting Systems Facilities UNITED ST ATES CHINA EUROPE C E R T I F I E D SPX Hydraulic Technologies Albert Thijsstraat 12 No. 1568 Hua Shan Road International Park Center 6471 WX Eygelshoven 5885 11th Street Shanghai 200052, China...
