1-2) Installation of external slider and load
Consider the following two points for mounting of external slider and load.
Ⅰ-a) The cylinder is deflected by self-weight as shown on Fig. 2. This means longer stroke produces
larger displacement of alignment.
A

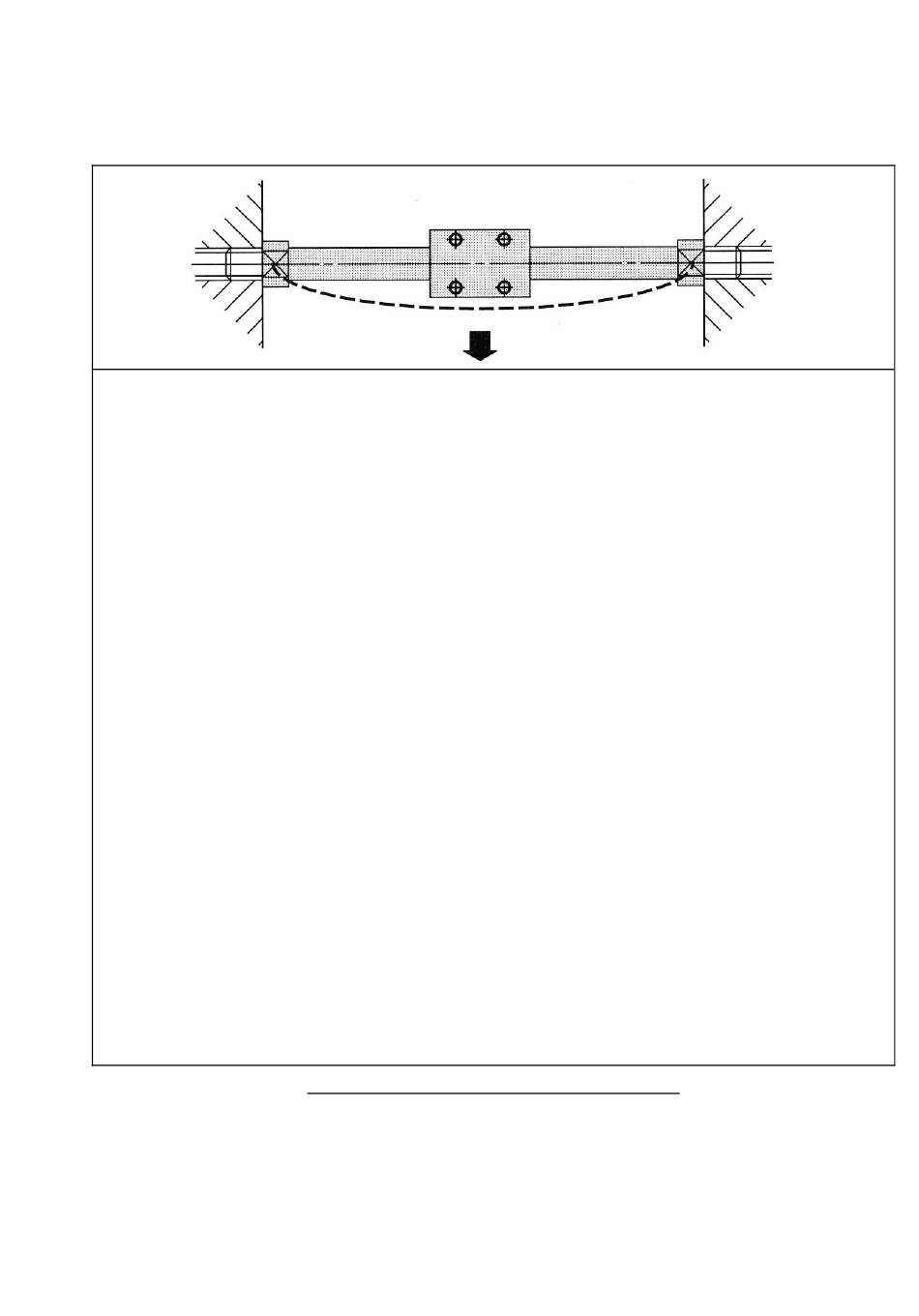

Fig. 2 Deflection of rodless cylinder by self-weight
