Summary of Contents for Scaleo medical Shado 160

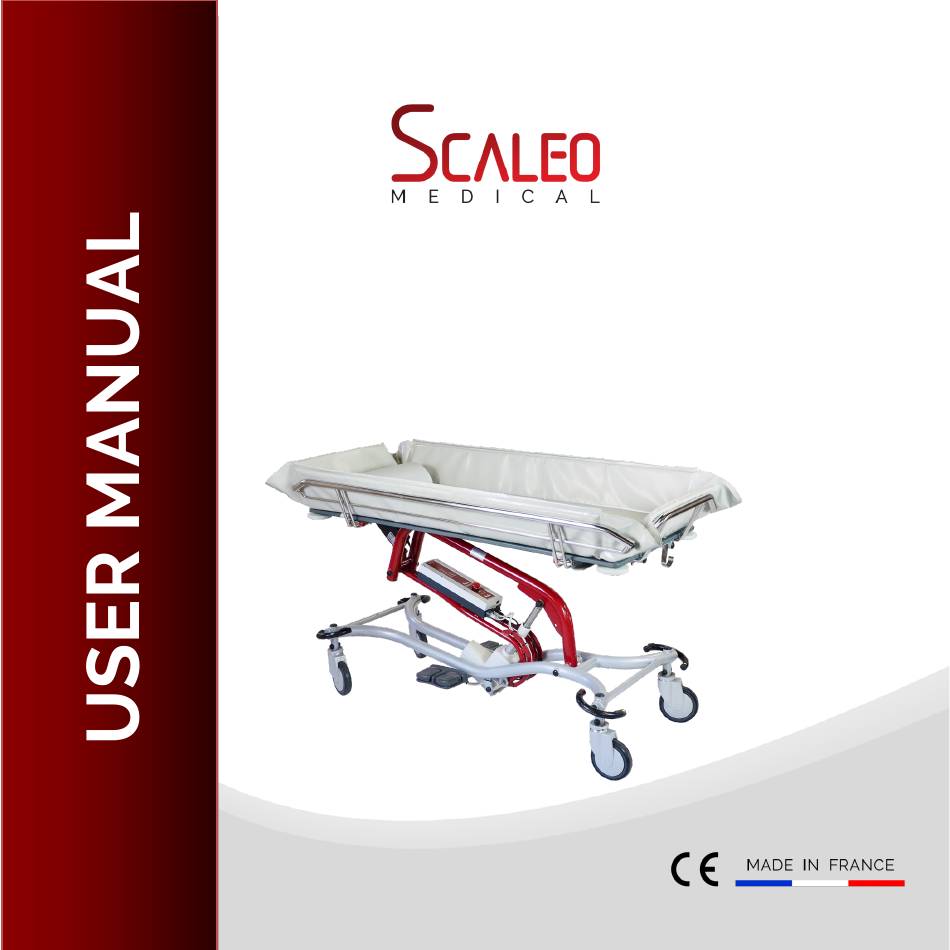

  • Page 1 Shado ® Shower trolley...
  • Page 2 DOMU019_EN_v16_20221206_Shado® shower trolleys user manual...

  • Page 3: Table Of Contents

    Content Warning and safety instructions Symbols and pictograms ® General information about the Shado Identifying the parts of the Shado® shower trolleys ..................8 Accessories ..............................10 Intended use ..............................10 Contraindications ............................11 Assembly & commissioning instructions Instructions for assembly ..........................12 Head rail mounting ............................
  • Page 4 End of life, recycling EC Declaration of conformity Contact information DOMU019_EN_v16_20221206_Shado® shower trolleys user manual...

  • Page 5: Warning And Safety Instructions

    Warning and safety instructions This user manual contains important safety information concerning the Shado ® shower trolleys. Carefully read the manual before using the equipment. This user manual concerns the complete Shado® shower trolley range reference S2700XXX, except the RGO version, which has its own user manual. The last two or three digits of the reference (XX) are the variants depending on the model: 160, 180, 200, 240, 350;...
  • Page 6 In the case of a mechanical or electrical problem, please contact SCALEO Medical who will either take care of your problem directly or will refer it to the closest authorized dealer. In all cases, you should ask for original spare parts.

  • Page 7: Symbols And Pictograms

    Symbols and pictograms Symbols used in this manual: This symbol is used to point out instructions and information related to safety in the working environment, where injury may occur if the information is disregarded or ignored. Follow these instructions and be careful and attentive at all times.

  • Page 8: General Information About The Shado

    We would like to thank you for the trust you have placed in our company. SCALEO Medical offers a complete range of shower trolleys, with six maximum safety loads available: 160 kg, 180 kg, 200 kg, 240 kg, 290 kg and 350 kg.
  • Page 9 Shado ® Hydraulic « H » versions 1. One PVC mattress 2. Two side rails 3. Four side rails security pin 4. One tilting control 5. One foot rail 6. Four head rail mount locking nuts (not pictured) 7. Four foot rail mount locking nuts(not pictured) 8.

  • Page 10: Accessories

    Accessories The Shado® can be used with the following accessories (not included): Accessories Reference COSA shower & disinfection panel S28001 Trans'Gliss® transfer boards (foldable models) S8210417, S8210418, S8210419 Trans'Gliss® transfer boards (non-foldable S8210420, S8210425, S8210427 models) Sliding sheets S8210172 S8210173, S8210174, S8210175, S8210178 Headrest grey cushion triangular S2752200...

  • Page 11: Contraindications

    • When shower trollies are used in marine spas, swimming pools or similar environments (aggressive conditions: condensation, salt, chlorine vapors, etc.), meticulous care should be taken at the end of the day, as described on page 25. • Shower trollies should be stored in a dry environment. Contraindications •...

  • Page 12: Assembly & Commissioning Instructions

    Assembly & commissioning instructions Unpack the parcel with the usual care. Remove the shower trolley from its box after having unlocked the brake pedals. One N°5 Allen wrench and one 13mm flat wrench are necessary (not provided). Instructions for assembly Head rail mounting 1.

  • Page 13: Commissioning The Shado Shower Trolley

    3. The same procedures applies to the right side, but the drain hose hook must be installed between the foot rail and the washers and licking nuts. Left side installation of the foot rail Right side installation of the foot rail 4.

  • Page 14: Instructions For Use Security Devices

    This function requires that the battery has not been removed and that is NOT fully discharged. Contact SCALEO Medical if one of these elements has a dysfunction or if some of the parts are damaged. Additional security features of the control box The Shado ®...

  • Page 15: Battery Management

    Battery management When the battery discharge threshold is reached, the user is alerted by a beep. If the battery does not recharge quickly, the unit turns off and the raising/lowering functions are not active anymore. A power reserve allows the Shado ®...

  • Page 16: Maintenance Of The Battery

    It is recommended to have 2 batteries to replace the discharged battery with the charged one. Therefore, Shado® will remain functional at all times. Using the external charger The external charger allows you to charge one battery while a second battery in being used. To remove the battery from its compartment (device or wall charger): 1.

  • Page 17: Brakes And Directional Lock Casters

    Compliance with these precautions will help you keep your batteries longer and use your equipment in the best conditions. Failure to follow these instructions will void the warranty of batteries that would come to fail due to lack of maintenance. Brakes and directional lock casters Depending on the model, some Shado®...

  • Page 18: Raising And Lowering The Stretcher

    Independent brakes Models including independent brakes enable to activate and deactivate the brakes of each caster independently. When the brake lever is up, the brake is deactivated and the caster is free. When the brake lever is pressed, the brake is activated and the caster is locked. Free caster Blocked caster Raising and lowering the stretcher...

  • Page 19: Slope Command

    Hydraulic model The stretcher can be raised by pressing several times on the raising side of the pedal, which is the longest side. The stretcher can be lowered by keeping the lowering pedal pressed, which is the shortest side Lowering side = short side Raising side = long side Slope command...

  • Page 20: Handheld Remote Control

    Hand remote control The hand remote control is available in option for electric models. The wired remote control allows users to control the ® configuration of the Shado Electric models using the hands, in particular the raising, lowering and the slope functions. The remote control of Shado ®...

  • Page 21: Backrest

    Closing the rails Lift the rail up again until the limit stop, locking of the rails is automatic. A “click” sound must be heard. Each time you use the trolley, please check that the locks are fulfilling their function: the patient may fall off the trolley if the rail opens unexpectedly.

  • Page 22: Transferring With The Shado Shower Trolley

    Using the backrest function is easy: pressing the BLUE lever will unlock the gas spring and allows the back rest to be moved. To raise the head of the patient while the tray is on a horizontal position, simply press the BLUE lever.
  • Page 23 2. Set the trolley next to the patient’s bed, either on the right hand side or on the left hand side, with the drain hole towards the feet of the patient. 3. Fold back the removable side rail on the bed side. 4.
  • Page 24 Release the brakes. Move the Shado® to the side and pull up and lock the side rails on the transfer side. Remove the Trans'Gliss® from the patient. Adjust the height to a comfortable position. Transfer to the shower room 1. Position the stretcher to the most convenient height to operate the Shado ®...
  • Page 25 The draining hose on its holder DOMA019_EN_v16_20221206_Shado® shower trolleys user manual...

  • Page 26: Cleaning And Disinfectin

    Cleaning and disinfecting If you are using an electrical model : - make sure to unplug the trolley before going through any kind of maintenance, cleaning, or transport. - press the emergency stop button to avoid any unwanted movement of the device during cleaning process.

  • Page 27: Periodic Inspection And Preventive Maintenance

    Periodic inspection and preventive maintenance Annual periodical inspection The aim of a periodic control visit is to control the safety and the maintenance issues on the equipment. This control, as well as the preventive maintenance must be performed regularly every year–...
  • Page 28 The equipment should not be used until the problem is corrected. One copy of this form should be handed to the customer, one copy held by SCALEO Medical and by the authorized distributor.

  • Page 29: The Shado ® Shower Trolley Range

    The Shado ® shower trolley range The Shado ® shower trolley range is composed of the following models: Electric models Independent brakes - Electric jack for adjustable height and Hydraulic jack for Proclive/Declive S 27 00 050 Shado ® 160 PVC tray + hand control Child XS S 27 00 051 Shado ®...

  • Page 30: Hydraulic Models

    S 27 00 065 Shado ® 240 PVC tray + hand control S 27 00 066 Shado ® 350 PVC tray + hand control S 27 00 020 Shado ® 160 PVC tray Child XS S 27 00 014 Shado ® 180 PVC tray Child S S 27 00 018 Shado ®...
  • Page 31 Brakes controlled by pair - Hydraulic jacks for height and for Proclive/Declive S 27 00 019 Shado ® 160 PVC tray Child XS S 27 00 013 Shado ® 180 PVC tray Child S S 27 00 017 Shado ® 180 PVC tray Medium S 27 00 011 Shado ®...

  • Page 32: Technical Specifications

    They may be required to be replaced during the lifetime of the equipment. SCALEO Medical engages to have on stock all spare parts for a period of 10 years. Electric Shado ®...
  • Page 33 ® ® Electric Shado Hydraulic Shado Total weight 82 kg to 163 kg depending on the Approx. 83 kg depending model and options on the model and options Tray Gray in PVC, Thickness = 15 mm Specifications of the actuators Enfant Adult Long tray...
  • Page 34 Enfant Adult Long tray position Side rails (cm) height Tray Tray in height position Side rails (cm) height Note: The dimensions of the models manufactured in series are indicative and can slightly vary due to the variations on the assembly process. Other specifications Environmental tolerance for use Input AC voltage range...

  • Page 35: Technical Specifications Of The Accessories

    • All the Shado® shower trolleys meet the requirements of European standard EN 10535 relating to hoists for disabled persons and EN 12182 relating to technical aids for disabled persons • Safety of electro medical devices: • All the Shado® shower trolleys electric models meet the requirements of European standard EN 60601.

  • Page 36: Electromagnetic Compatibility (E.m.c)

    Electromagnetic compatibility (E.M.C) • The Shado ® shower trolleys require special care regarding the E.M.C. They must be installed and commissioned considering the EMC information provided in this user manual. • ® The RF communication devices and portable phones may affect the Shado shower trolleys.
  • Page 37 Non applicable 0,35 Non applicable Non applicable Directives and manufacturer's declaration - electromagnetic immunity The Shado® is designed to be used in the electromagnetic environment specified below. The user should ensure it is used in such an environment. INMMUNITY Test level - IEC Level of Electromagnetic environment guidelines test...
  • Page 38 Portable and mobile RF communications should not be used closer to any part of the Shado®, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of transmitter. Recommended separation distance Conducted 3 Vrmsf 150 kHz to applicable Non applicable disturbances...

  • Page 39: Warranty

    Warranty The Shado ® shower trolley have a two (2) years warranty, except for the battery and the accessories that are guaranteed one (1) year. • Any intervention on the device contrary to this manual will entirely void the warranty. •...

  • Page 40: Liability

    Liability SCALEO Medical assumes no liability for any injury or harm and consequences thereof directly or indirectly caused to operators, patients, or any third party in the following cases: • Non-compliance with the instructions or recommendations supplied within this User Manual, •...
  • Page 41 EC Declaration of conformity DOMA019_EN_v16_20221206_Shado® shower trolleys user manual...
  • Page 42 DOMU019_EN_v16_20221206_Shado® shower trolleys user manual...
  • Page 43 DOMA019_EN_v16_20221206_Shado® shower trolleys user manual...
  • Page 44 Contact information The information and advice provided in this user manual are also intended to inform you of the importance of paying attention to safety measures and the necessity of regular maintenance. This is a matter of responsibility for your establishment, and a question of safety for your patients and staff.
