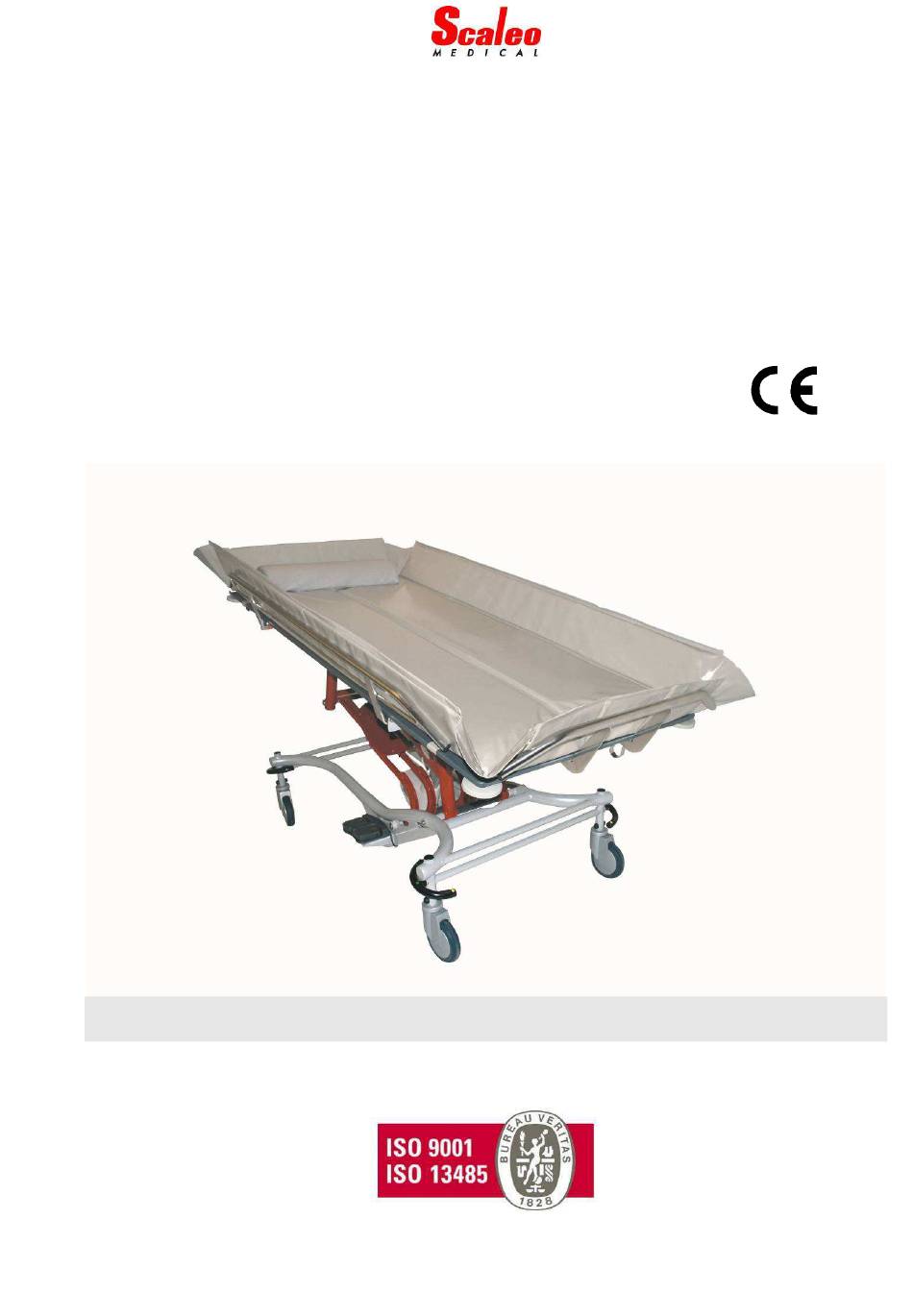

- Page 1 Shado ® Shower Trolley Made In France User Manual ® DOMA019EN v8_10-2015– Shado User Manual Page 1 / 24...
- Page 2 Options and features may vary depending on the model (160, 180, 200, 240, 350) and options (centralized or independent brakes, hand remote, size of the tray …) This user manual applies to all SHADO shower trolley range. For a safe and comfortable use of the device, please read carefully the sections relating to your model.
-
Page 3: Table Of Contents
About the Shado shower trolley range ................4 Warnings and safety notes ....................5 Head and foot rail mounting ..................... 6 Identifuying the parts of the Shado(r) trolley ..............7 ® Using the Shado shower trolley ..................9 Brakes and directional lock castors ................ 9 Safety features of the electric models .............. -
Page 4: About The Shado Shower Trolley Range
They combine comfort and safety for both the patient and the caregiver. SCALEO Medical offers a complete range of shower trolleys, with five maximum safety loads available : 160kg, 180 kg, 200 kg, 240kg, 350 kg. -
Page 5: Warnings And Safety Notes
• Trying to connect the Shado ® E to an incompatible electric plug or voltage source • Using the Shado without prior explanation by a patient or anyone else or by a child. • Using the Shado ® with a patient weighting more than the maximum load capacity. -
Page 6: Head And Foot Rail Mounting
With the help of the fixing bolts, secure the foot rail and the draining hose holder hook to the stretcher. Locking nuts Foot rail Locking Draining hose holder hook nuts ® DOMA019EN v8_10-2015– Shado User Manual Page 6 / 24... -
Page 7: Identifuying The Parts Of The Shado(R) Trolley
® Identifying the parts of a Shado Hydraulic « H » versions The picture above is only intended to show and name the main parts. For maintenance purposes detailed drawings and spare parts list are available on demand or in our website for registered customers. - Page 8 Slope actuator Emergency stop button Control and power pack (battery) Stretcher raising jack ( actuator) Stretcher raising pedals Pedals for multifunctional wheels Castors (single or double tired depending on the model) ® DOMA019EN v8_10-2015– Shado User Manual Page 8 / 24...
-
Page 9: Using The Shado ® Shower Trolley
Please refer to the sections relating to the model you use. You can also contact SCALEO Medical or your local distributor for further information. Brakes and directional lock castors. Centralized brakes versions... -
Page 10: Safety Features Of The Electric Models
This function requires that the battery has not been removed and NOT fully discharged Contact SCALEO Medical if one of these elements has a dysfunction or if some of the parts are damaged. Charging and discharging the battery ®... - Page 11 • If the battery is completely discharged, charge it for at least 8 hours before using it again. After a charge cycle, do not forget to cut out the main/24Vcc transformer from ® the main circuit then from the Shado connection current collector. The transformer is not guaranteed if the feeding cord is cut (even partially).
-
Page 12: Raising And Lowering The Tray
The stretcher can be raised by pressing several times on the raising side of the pedal, which is the longest side. The stretcher can be lowered by keeping the lowering pedal pressed, which is the shortest side Lowering side = short side Raising side = long side ® DOMA019EN v8_10-2015– Shado User Manual Page 12 / 24... -
Page 13: Slope Command
The wired remote control allows manual remote control of the raise and lowering, and the slope of ® Shado electric models. ® The remote control of Shado is IP65, perfectly sealed against spray water. Raising button Lowering button Head down Head up ®... -
Page 14: Opening And Closing The Side Rails
DANGER the trolley is safe The rail may open unexpectedly NEVER use the side rail for moving the trolley, the rail attachment could be deteriorated, and the rail fail unexpectedly ® DOMA019EN v8_10-2015– Shado User Manual Page 14 / 24... -
Page 15: Taking Care Of The Patient
Put the brakes of the trolley on. ® Roll over the patient on the Shado Raise the back of the stretcher with the pedal. Release the wheels and pull the trolley a step further from the bed. - Page 16 Refer to the “servicing and maintenance” section of this manual. Optional equipments: Wall mounted sanitary box: Allows patient showering and equipment disinfection. ® Stainless steel waste disposer: Used to collect the Shado water. ® DOMA019EN v8_10-2015– Shado User Manual Page 16 / 24...
-
Page 17: Servicing, Periodical Inspection And Preventive Maintenance
If the trolley breaks down or if you observe any kind of problems, do not try to repair it by yourself. To get it repaired, get in contact with SCALEO Medical customer services, a qualified technician or your authorised dealer. In all cases, insist on using original spare parts. - Page 18 Competent health authorities insist on periodical inspections and maintenance of medical devices in order to insure the safety of patients and caregivers. Please do not hesitate to contact SCALEO Medical after-sales services or your distributor in order to plan inspection and maintenance visits.
- Page 19 C = Conform NC = Non Conform The cause of non conformity must be indicated One copy of this form should be handed to the customer, one copy held by SCALEO Medical or by the authorized distributor ® DOMA019EN v8_10-2015– Shado...
-
Page 20: Technical Specifications
All the Shado® shower trolleys models are compliant with essential requirements of the 93/42/EEC Directive relating to Medical Devices. All the Shado® shower trolleys models meet the requirements of European standard EN 10535 relating to hoists for disabled persons and EN 12182 relating to technical aids for disabled persons... - Page 21 Easily cleaned using conventional cleaning products, it also supports the application of aggressive disinfectants due to its excellent chemical resistance. Dirty trays can be easily cleaned using an organic solvent without alteration. ® DOMA019EN v8_10-2015– Shado User Manual Page 21 / 24...
-
Page 22: Terms Of Warranty
Liability SCALEO Medical assumes no liability for any injury or harm and consequences thereof directly or indirectly caused to operators, patients, or any third party in the following cases: - Non compliance to the instructions or recommendations supplied within this User Manual,... -
Page 23: Ec Declaration Of Conformity
SHADO shower trolley ® Le chariot douche SHADO Class I, according with article 4 first paragraph of the appendix IX in the European directive 93/42/EEC, “All non-invasive devices are in Class I, unless one of the rules set out hereinafter applies”... -
Page 24: How To Contact Us
Parc 2000, 107 rue Dassin, 34080 MONTPELLIER - FRANCE Tél : + 33 467 72 94 86 - Fax : + 33 499 74 01 79 http://www.scaleomedical.com Email : info@scaleomedical.com ® DOMA019EN v8_10-2015– Shado User Manual Page 24 / 24...
