- Page 1 Poweo CITY ® Standing - Raising aid DOMU120_EN_6_20221109_ Poweo ® City user manual...
-
Page 2: Table Of Contents
Content WARNING AND SAFETY INSTRUCTIONS SYMBOLS AND PICTOGRAMS ® GENERAL INFORMATION ABOUT POWEO CITY Accessories Intended use Contraindications ASSEMBLY AND COMMISSIONING INSTRUCTIONS Unpacking the Poweo ® City Instructions for assembly INSTRUCTIONS FOR USE Security devices Maintenance of the battery The remote control Knees supports Casters brakes Standing and transferring with the Poweo... -
Page 3: Warning And Safety Instructions
City is designed and manufactured to safely raise patients up to 150 kg / 330 lbs. Beyond this weight, do not use the Poweo® City: please contact SCALEO Medical which will propose you the best patient lifter that satisfies to your transfer needs. - Page 4 This manual is intended for users of Poweo® City lifters and must not be communicated, or made available to any third party, without the prior written consent of SCALEO Medical. The first Poweo® City was released on January 7, 2020.
-
Page 5: Symbols And Pictograms
Symbols and pictograms The symbols used in this manual are: This symbol indicates instructions and safety information, when injuries may occur if warnings are ignored or partially followed. It is important to follow the advice and warnings carefully. This symbol indicates important information regarding the use of the equipment. Failure to follow this information may result in damage or malfunction of the lift or other equipment. -
Page 6: General Information About Poweo ® City

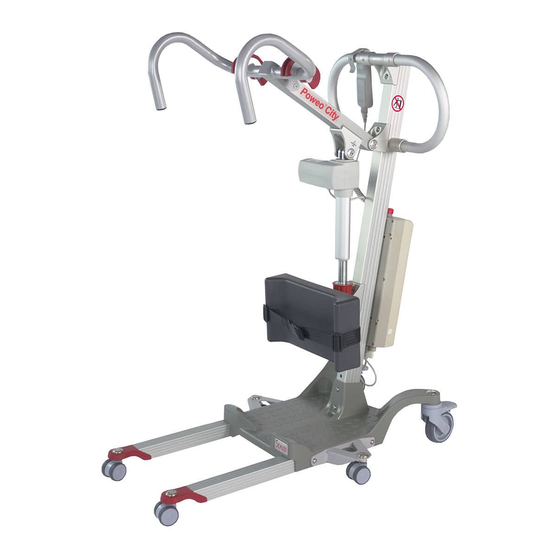

General information about Poweo ® City ® You have recently purchased a Poweo City. We would like to thank you for the trust you have placed in our company. ® The Poweo City is an innovative standing and transfer aid. The movement of the lifting arm is unique and ergonomic. -
Page 7: Intended Use
Intended use Poweo® City is an active mobile patient lifter. It is intended to be used on horizontal floors to lift patients without disabilities of the lower limbs that are capable of maintain the upright posture, as well as to transfer them to and from a sitting position. Poweo®... -
Page 8: Assembly And Commissioning Instructions
Please read this instruction entirely before beginning, while checking that all the parts are present and in good condition. SCALEO Medical tests and charges all batteries before packaging. However, the batteries must always be fully charged before first use. ®... -
Page 9: Instructions For Assembly
Since the protections and carton are specific, it will be useful to keep them for any subsequent shipment of the Poweo ® City for inspection or maintenance. Instructions for assembly Installing the column on the base Step 1: Position the column (1) on the base (2): the notches help to guide the mast on its location. -
Page 10: Instructions For Use
The provided power plug must be adapted to the electrical outlet of the country of use: if this information was provided to SCALEO Medical at the time of the order, the supplied power supply cord will be fully compatible. -
Page 11: Security Devices
City must rest in a temperate room until the equipment has achieved proper working temperature. SCALEO Medical may train the users for the commissioning and the use of all the equipments manufactured by SCALEO Medical. If the device has been provided by a distributor, we advise you to contact your dealer for a training course. - Page 12 Contact SCALEO Medical if the reasons for the dysfunction are unknown, or if any part is damaged. Do NOT use the lifter until the problem is solved. Be very careful because the lifting arm goes down very quickly: your arm or your hand could be injured during the lowering process.
- Page 13 Charging the battery The bar graph on the remote control allows to check the status of the battery. Red + buzzer: the battery is Green, one bar: the Green, three bars: the Green, two bars: the discharged, stop using the battery is almost battery is fully charged, the Poweo®...
-
Page 14: Maintenance Of The Battery
Maintenance of the battery It is not possible to overcharge the battery. However, to ensure optimal performance through-out its lifetime, we recommend giving the battery a rest for a couple of minutes after charging so it can cool down before being used. It is also important to fully charge a battery that will not be used for a long time period (≥1 month). -
Page 15: Knees Supports
according to the state of charge: green if the charge is good, orange, then red when the battery is to be recharged. Knees supports The height of the knee support is adjusted using the adjustment knob. Please refer to the Installation of knee support section here above for detailed instructions on how to adjust the height. -
Page 16: Standing And Transferring With The Poweo ® City
Standing and transferring with the Poweo ® City For an ergonomic transfer, it is recommended to maintain a 90° angle for the back, the knees, and the ankles. If the patient to be transferred is on a wheelchair, do not forget to block the brakes of the chair before any transfer procedure. - Page 17 Pull down the rope to secure the installation. “Standard” installation: the rope is slid in the hook. The cords must be tightened firmly before lifting. They will slide and lock under the effect of the weight during lifting. If the cords are not tight enough, lifting could be asymmetrical and less comfortable.
-
Page 18: Choosing The Sling
Choosing the sling The recommended slings for the Poweo® City are the slings mentioned in the “Accessories” section of this manual, which are manufactured by SCALEO Medical. Reminder: It is essential to use the appropriate type of sling to the pathology, weight and size of the patient. -
Page 19: Cleaning And Disinfecting
Cleaning and disinfecting The following program for cleaning and disinfection has been established in compliance with the “Guide to good practices for disinfection of medical devices” edited by the French council of public Health. Device classification: Not critical Infectious hazard: low risk Level of treatment required: Low-level disinfection This procedure is relevant to any medical device of the described category: apply the items when relevant... - Page 20 • Organic solvents like halogenated hydrocarbons / aromatic or acetone, • Products with a pH> 8 and <5, • Products containing corrosive or caustic substances. DOMU120_EN_6_20221109_ Poweo ® City user manual...
-
Page 21: Periodic Inspection And Preventive Maintenance
Periodic Inspection and preventive maintenance The aim of a periodic control visit is to control the safety and the maintenance issues on the equipment. This control, as well as the preventive maintenance must be performed regularly every year for the patient lifter and twice a year for the slings – according to annex B of the EN ISO 10535 standard and the recommendations from health authorities. - Page 22 The equipment should not be used until the problem is corrected. SCALEO Medical should be informed of the result of inspections performed on its devices. DOMU120_EN_6_20221109_ Poweo ®...
-
Page 23: Technical Specifications
Technical specifications Technical specifications of the Poweo ® City All Poweo® lifters are built in France in our workshop under the ISO 13485 quality system. The Poweo ® City in its standard version is equipped with aluminum feet, mast and arm, allowing for an extremely light device. - Page 24 Value in Description Maximum reach at 600 mm Maximum reach from base 1278 Minimum distance between the wall and the CSP @ maximum height Minimum distance between the wall and the CSP @ minimum height Height of the legs 82,4 CSP minimal height Internal width Maximum height...
-
Page 25: Technical Specifications Of Parts And Accessories
Lifting speed (no load) 10,3 mm/sec Lifting speed (max/ 2 load) 7,8 mm/sec Lifting speed (full load) 5,4 mm/sec Other specifications Class I medical device according to the European Regulations Medical device regulation 2017/745 Compliant with the standards EN ISO 10535, EN Compliance with standards 60601-1, EN 60601-1-2 Service factor... - Page 26 Compliance to standards EN 60601-1 :2005 +C1:2006 +C2:2007 Temperature range of operation 5°C to 40°C Condition of use For indoor use only Technical specifications of the charger Permissible AC tensions 100~240V AC Permissible AC frequencies 50/60Hz, 1A Maximum charge current 28V DC, 1.5A Compliance to standards EN 60601-1 :2005 +C1:2006 +C2:2007, RoHS...
-
Page 27: Electromagnetic Compatibility
Electromagnetic compatibility • The Poweo ® City requires special care regarding the Electromagnetic compatibility (EMC). It must be installed and commissioned by the EMC information provided in this user manual. • The RF communication devices and portable phones may affect the Poweo ®... - Page 28 Non applicable Directives and manufacturer's declaration - electromagnetic immunity The Poweo® is designed to be used in the electromagnetic environment specified below. The user must make sure it is used in such an environment. INMMUNITY test Test level - IEC 60601 Level of compliance Electromagnetic environment guidelines Electrostatic...
- Page 29 level between equipment marked with the following symbol: 9V/m and 28V/m NOTE 1: At 80 MHz and 800 MHz frequency range applicable is the highest. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
-
Page 30: Complementary Safety Advices
2. If the lifter breaks down or malfunctions, do not try to repair it yourself. You should seek the help of a qualified technician, an authorized distributor, or the customer service department of SCALEO Medical. 3. Always demand original authorized spare parts. - Page 31 Injury or damage to the equipment may occur if the Poweo ® is not properly used, more precisely if: • The protective covers of the chassis are taken off by non-qualified personnel, • A regular maintenance is not carried out, •...
-
Page 32: Warranty & Liability
Batteries not serviced in compliance with the servicing process of this manual will not be taken under warranty. Liability SCALEO Medical assumes no liability for any injury or harm and consequences thereof directly or indirectly caused to operators, patients, or any third party in the following cases: •... -
Page 33: End Of Life & Recycling
The lifespan of the Poweo® City is 10 years if the standing aid is used according to the manufacturer requirements. SCALEO Medical lifters and accessories are at least 90% recyclable. The end-of-life disposal of the device must be done respecting the recycling circuit and local relevant regulation. -
Page 34: Eu Declaration Of Conformity
EU Declaration of Conformity DOMU120_EN_6_20221109_ Poweo ® City user manual... - Page 35 ® DOMU120_EN_6_20221109_ Poweo City user manual...
-
Page 36: Contact Information
Please do not hesitate to contact us if you require electrical diagrams, lists of components, descriptions and/or any information that could be useful for your qualified technicians. SCALEO Medical ZAC Parc 2000, 107 rue Dassin 34080 Montpellier - France Ph : +33 (0)467 72 94 86 info@scaleomedical.com...
