INSTALLATION
3.2.

Installation with Mounting Kit

®
ULTIMA
X
mounting plate.

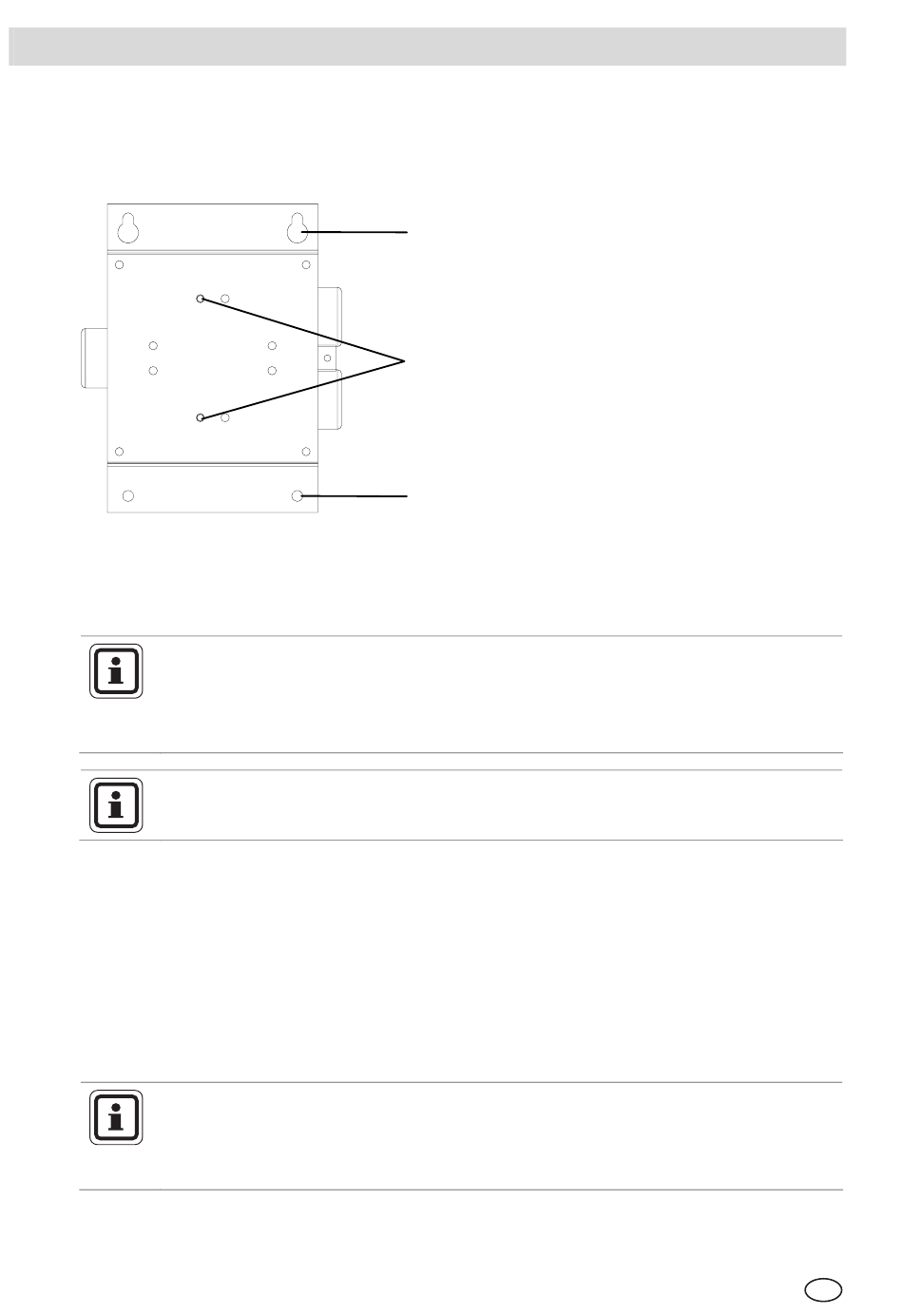

Fig. 3
Mounting plate
1
Wall mounting fixing holes
2
Instrument fixing holes
Use Ø6 x 20 mm screws and suitable plugs for attaching the mounting
plate to the wall.
M6 x 20 screws will also be required for fixing the mounting plate to the
ULTIMA
When preparing the assembly, make sure that the mounting
arrangement is correct for the particular instrument type.
Mount the instrument as follows:
(1) Using the mounting plate as a template, mark the holes for the four fixing
screws.
(2) Drill four holes of appropriate diameter.
(3) Attach mounting plate to the Gas Monitor enclosure with M6 x 20 screws.
(4) Attach Gas Monitor with mounting plate, using four
place of installation.
During assembly, the ULTIMA
rotated 360°, to ensure easy access to any of the four cable entries. For
correct positioning of the display, the electronics assembly can be
installed in any of the four self-aligning positions.
