1. Preparing the WSTK
1. Connect a Bluetooth Smart Module Radio Board to the WSTK Main Board as shown in the figure below.
Note: WSTK6101A includes only one Radio Board while WST6101B includes two.
2. Connect the WSTK to a PC using the "Main Board USB" connector.
3. Turn the Power switch to "AEM" position.
Note: At this stage you might be prompted to install the drivers for the WSTK Main Board but you can skip this for now.
Verifying the Setup
1. Check that the blue "USB Connection Indicator" LED turns on or starts blinking.
2. Check that the Main Board LCD display turns on and displays a Silicon Labs logo.
Before starting to test the demo application functionalities note the following parts on the WSTK Main Board
1. Note the location of the Temperature & Humidity Sensor.
2. Note the location of PB1 and RESET push buttons.
3. Note the location of LED0

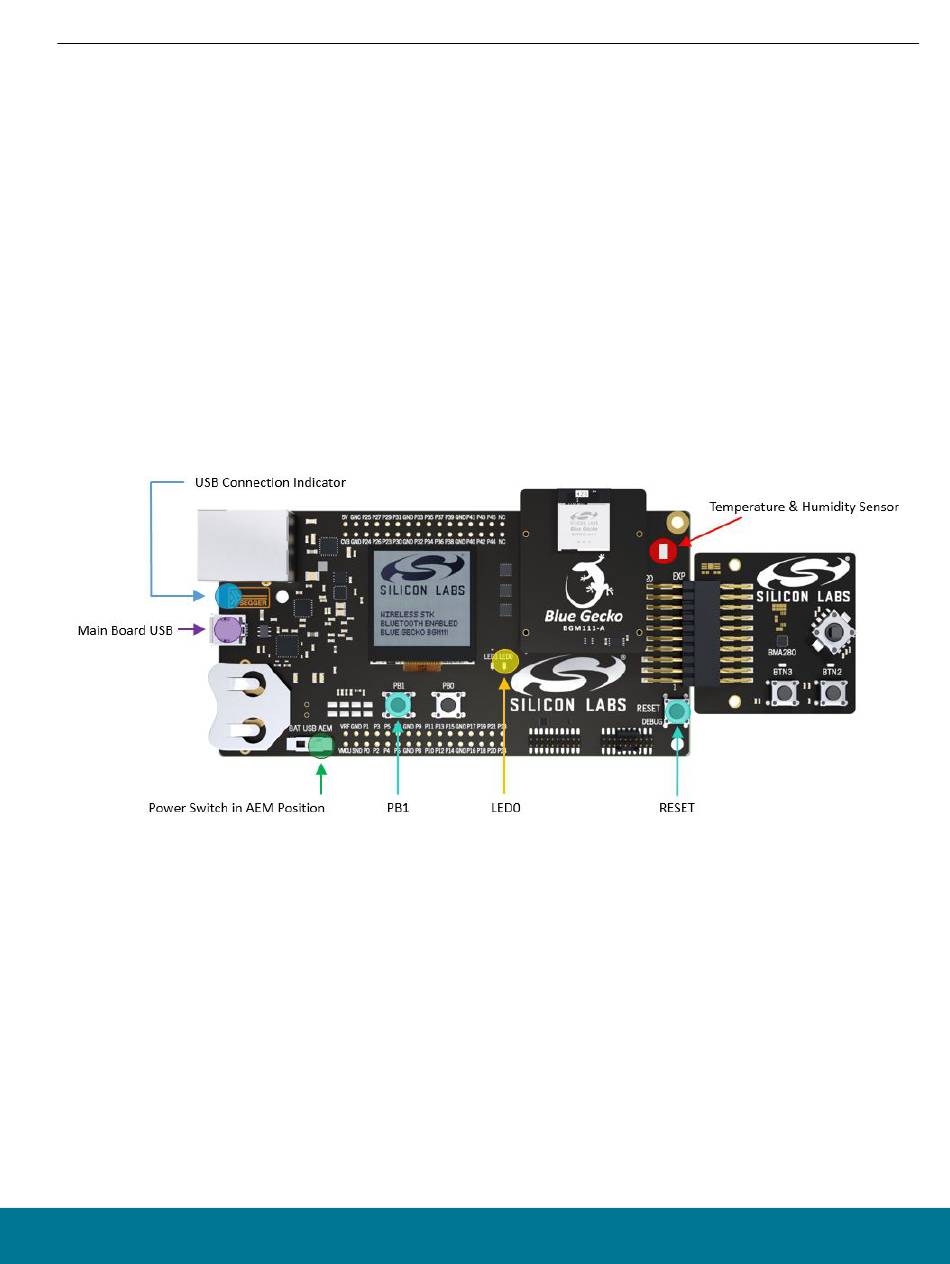

Figure 1.1. WSTK Main Board with a Radio Board and the Expansion Board Attached
