QSG107: SLWSTK6101A/B Quick-Start

Guide

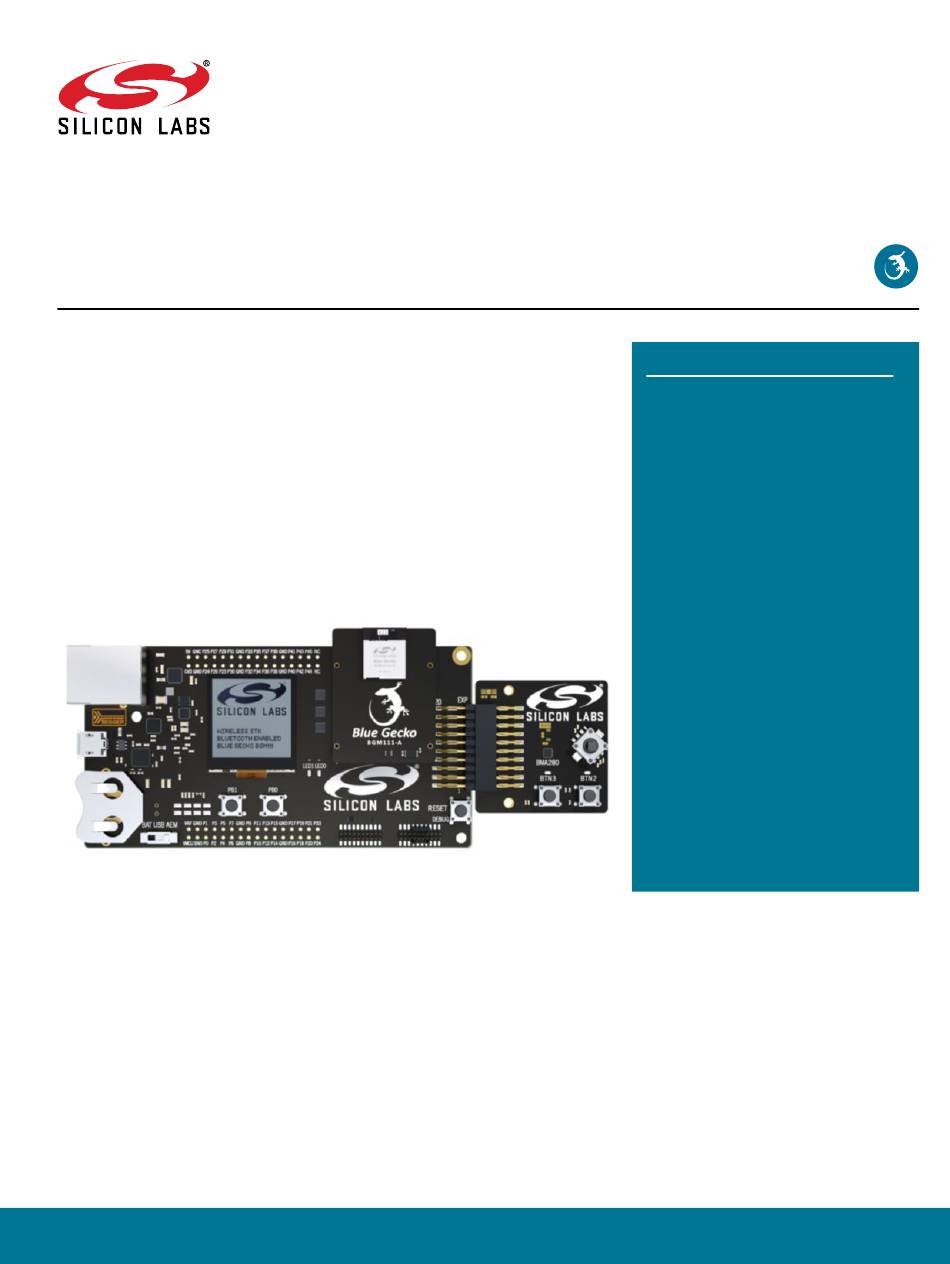

The Blue Gecko Bluetooth Smart Wireless Starter Kit is meant to help you evaluate Sil-

icon Labs' Blue Gecko Bluetooth Smart modules and get you started with your own

software development.

This Wireless Starter Kit includes either one of two Radio Boards. SLWSTK6101A con-

tains the BRD4300A Radio Board with the Blue Gecko BGM111 Bluetooth Smart mod-

ule whereas the SLWSTK6101B contains in addition also the BRD4301A with the Blue

Gecko BGM113 Bluetooth Smart module. Both the BGM111 and BGM113 have the

same factory installed demo application software installed in them. This quick-start

guide includes instructions on how to test the built-in demo application using an An-

droid or an iOS mobile phone together with the WSTK and a Radio Board.

The Silicon Labs Blue Gecko SDK available as a free download from the Silicon Labs

web enables the flashing of BGM111 and BGM113 modules with further demo applica-

tions contained in the SDK or with your own software projects.

ORDERING INFO

• SLWSTK6101A

• SLWSTK6101B

silabs.com | Smart. Connected. Energy-friendly.

KIT CONTENTS

• BRD4001A Main Board

• BRD4300A Radio Board

1, 2

• BRD4301A Radio Board

• Expansion Board

• USB cable

• CR2032 battery

1 = SLWSTK6101A

2 = SLWSTK6101B

WSTK KIT FEATURES

• BRD4300A (SLWSTK6101A/B)

• BRD4301A (SLWSTK6101B)

• Common Main Board Features

• Ethernet and USB connectivity

• SEGGER J-Link on-board debugger

• Debug Multiplexer supporting external

hardware and the Radio Board

• Silicon Labs' Si7021 Relative Humidity

and Temperature sensor

• Ultra low power 128x128 pixel Memory

LCD

• 2 x Push button / LED

• Reset button

• 20-pin 2.54 mm header for expansion

boards

• Breakout pads for direct access to all

radio I/O pins

• Power sources

• USB

• CR2032 coin cell battery

EXPANSION BOARD FEATURES

• Accelerometer

• Buttons and LEDs

• Joystick

• I

C expansion

SOFTWARE SUPPORT

• Blue Gecko Bluetooth Smart Software

• Blue Gecko Bluetooth Smart SDK

• Factory demo application

• Example applications in SDK

• iOS and Android applications

• PC tools
