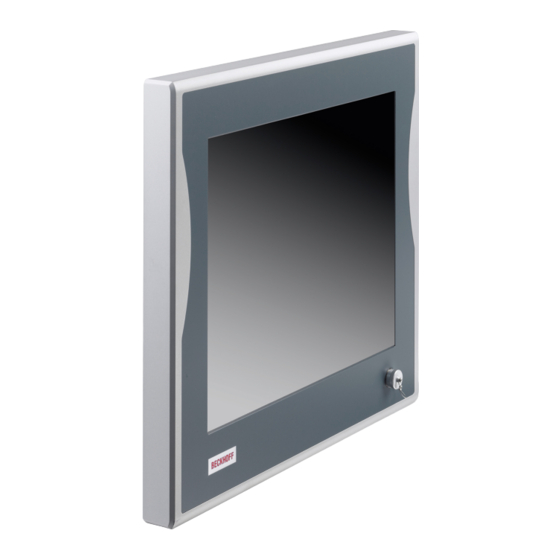

- Page 1 Manual | EN CP77xx Panel PC 2023-1-18 | Version: 3.0...
-
Page 3: Table Of Contents
Mounting ............................ 17 Connecting the panel PC ........................ 18 4.3.1 Grounding the panel PC.................... 19 4.3.2 Connecting cables and power supply ................ 20 5 Beckhoff Device Manager ........................ 21 6 Decommissioning ........................... 23 7 Maintenance ............................ 24 Cleaning ............................ 24 Maintenance............................ 26 7.2.1 Replacing the battery ....................... - Page 4 Table of contents Version: 3.0 CP77xx...
-
Page 5: Notes On The Documentation
Copyright © Beckhoff Automation GmbH & Co. KG. Publication of this document on websites other than ours is prohibited. Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design. -
Page 6: For Your Safety
Exclusion of liability Beckhoff shall not be liable in the event of non-compliance with this documentation and thus the use of the devices outside the documented operating conditions. Description of safety symbols The following safety symbols are used in these operating instructions. -
Page 7: Fundamental Safety Instructions
For your safety Fundamental safety instructions The following safety instructions must be observed when handling the device. Application conditions • Never use the device in hazardous areas. • Do not carry out any work on the device while it is live. Always switch off the supply voltage for the device before mounting it, replacing device components or rectifying malfunctions. -
Page 8: Notes On Information Security
For your safety Notes on information security The products of Beckhoff Automation GmbH & Co. KG (Beckhoff), insofar as they can be accessed online, are equipped with security functions that support the secure operation of plants, systems, machines and networks. Despite the security functions, the creation, implementation and constant updating of a holistic security concept for the operation are necessary to protect the respective plant, system, machine and networks against cyber threats. -
Page 9: Product Overview
Product overview Product overview The CP77xx Panel PC series is designed for installation on the mounting arm and represents a powerful platform for use in machine and system engineering. Thanks to its processors, you can use the panel PC for the following applications, among others: •... -
Page 10: Structure
Product overview Structure Fig. 1: CP77xx_structure Table 1: Legend CP77xx structure Component Description 4 threaded holes M6 x 18 mm For installation on the wall Name plate Information on the equipment of the panel PC Connection section Access to interfaces Cover Access to battery and storage media Display and touch screen glass Operation of the panel PC Version: 3.0... -
Page 11: Interface Description
Product overview Interface description In the basic configuration, the panel PC includes the following interfaces: • RS232 (X100) • Power supply (X101) • Ethernet RJ45 (X102, X103) The interfaces are located at the rear of the panel PC (see fig. 2). A 19-inch device is shown as an example, with the interfaces located at the bottom right at the rear. -
Page 12: Rs232
Product overview 3.2.1 RS232 The COM1 serial interface (X100) is fed out via a 12-pin round connector. The signals comply with the RS232 standard. The interface is used to connect serial peripheral devices. The C9900-K234 adapter cable is supplied with the panel PC. This allows you to connect serial peripheral devices with standard D-sub connector. -
Page 13: Power Supply
Product overview 3.2.2 Power supply The panel PC is supplied with a nominal voltage of 24 V. The connection to the power supply is made via the 4-pin M12 voltage socket (X101). The main supply voltage is applied between PIN 1 (24 V) and PIN 3 (0 V) of the socket. -
Page 14: Ethernet Rj45
Product overview 3.2.3 Ethernet RJ45 The panel PC has two Gigabit LAN ports (X102, X103). The 100Base-T and 1000Base-T Ethernet standards enable the connection of corresponding network components and data rates of 100/1000 Mbit/s. The required speed is selected automatically. The RJ45 connection technology with twisted-pair cables is used. -
Page 15: Name Plate
Product overview Name plate The name plate provides information about the panel PC equipment. The name plate shown here serves only as an example. xxxxxxx xxxxxxxxxxxx xxxxxxxxxxxx Fig. 6: CP77xx_name plate Table 7: Legend CP77xx name plate Description Model: The last four digits indicate the device generation. Serial number (BTN) Date of manufacture Mainboard... -
Page 16: Commissioning
If you, as the user, require additional protection for the touch screen against dirt and scratching, for example due to dirty hands, this can be achieved with a Beckhoff protective film. The film provides short-term protection for a few days. -
Page 17: Transport And Unpacking
Extreme environmental conditions can cause damage to the device. • Avoid extreme environmental conditions. • Protect the device against dust, moisture and heat. Dimensions The dimensions of the control panel can be found on the Beckhoff website: https://www.beckhoff.com/de- de/support/downloadfinder/technische-zeichnungen/. All dimensions are in mm. CP77xx... -
Page 18: Connecting The Panel Pc
Commissioning Connecting the panel PC CAUTION Risk of electric shock Dangerous touch voltages can lead to electric shock. To avoid electric shock, observe the following: • Never connect or disconnect the device cables during a thunderstorm. • Provide protective earthing for handling the device. To make the panel PC ready for operation, you have to connect it. -
Page 19: Grounding The Panel Pc
Commissioning 4.3.1 Grounding the panel PC Potential differences are minimized and electrical currents are diverted to the ground through grounding or potential equalization of electronic devices. This is to prevent dangerous touch voltages and electromagnetic interference. On the rear side of the panel PC there is the protective conductor connection PE (see Fig. 7), which ensures both the protective earthing of the PC and the functional earthing. -
Page 20: Connecting Cables And Power Supply
Commissioning 4.3.2 Connecting cables and power supply NOTE Incorrect connection procedure Incorrect procedure when connecting the cables and the power supply can cause hardware damage. • Follow the documented procedure for connecting the cables and the power supply. • Always connect all cables first and only then switch on the power supply. •... -
Page 21: Beckhoff Device Manager
• User name: Administrator • Password: 1 You also have the option of using the Beckhoff Device Manager to remotely configure the industrial PC via a web browser. More detailed information is available in the Beckhoff Device Manager manual. First start Beckhoff Device Manager When your industrial PC is booted for the first time, the Beckhoff Device Manager also starts automatically for the first time. -
Page 22: Fig. 9 Beckhoff Device Manager - Start Page
Secure passwords Strong passwords are an important prerequisite for a secure system. Beckhoff supplies the device images with standard user names and standard passwords for the operating system. It is imperative that you change these. Controllers are shipped without a password in the UEFI/BIOS setup. Beckhoff recommends assigning a password here as well. -
Page 23: Decommissioning
Decommissioning Decommissioning NOTE Hardware damage due to power supply A connected power supply can cause damage to the panel PC during disassembly. • Disconnect the power supply from the device before starting to disassemble it. As part of the decommissioning of the panel PC, you must first disconnect the power supply and cables. You can then dismantle the device. -
Page 24: Maintenance
Maintenance Maintenance CAUTION Risk of electric shock Working on the panel PC when live can lead to electric shock. • Turn off the supply voltage before cleaning the device or replacing device components. Maintenance measures increase the efficiency of the device by ensuring long-term functionality. Cleaning and maintenance of certain device components and the replacement of other device components contribute to this. -
Page 25: Fig. 10 Cp77Xx_Select "Cleaning Mode
You can clean the front screen of the panel PC during operation. In order to avoid inadvertent touch entries when doing this, you must first set the device to "Cleaning Mode" with the help of the Beckhoff Control Tool. The Beckhoff Control Tool does not start automatically when the PC starts up. Proceed as follows to activate the "Cleaning Mode"... -
Page 26: Table 8 Replacement Recommendations For Pc Components
NOTE Use of incorrect spare parts The use of spare parts not ordered from Beckhoff Service can lead to unsafe and faulty operation. • Only use spare parts that you have ordered from Beckhoff Service. Beckhoff Panel PCs are manufactured from components of the highest quality and robustness. They are selected and tested for best interoperability, long-term availability and reliable function under the specified environmental conditions. -
Page 27: Fig. 12 Cp77Xx_Access To Device Components
Maintenance ESD protection NOTE Electrostatic discharge The replacement of device components without ESD protection can lead to functional impairment and de- struction of the device. • If possible, apply ESD protection measures during maintenance work. When working on electronic devices, there is a risk of damage due to ESD (electrostatic discharge), which can impair the function or destroy the device. -
Page 28: Replacing The Battery
NOTE Incorrect battery type Inserting the wrong type of battery can damage the device. • Only replace the battery with a replacement battery from Beckhoff Service. • When replacing the battery, make sure that the polarity is correct. NOTE Battery damage Incorrect handling of the motherboard battery can damage it. -
Page 29: Fig. 13 Cp77Xx_Battery Replacement
Maintenance To replace the battery, follow the steps below: 1. Place a lever made on the negative pole of the battery holder below the battery. 2. Lift the battery side out of the holder. ð The battery is now in an oblique position (see fig. 13). Fig. 13: CP77xx_battery replacement 3. -
Page 30: Replacing The Storage Media
If you want to exchange a storage medium according to Beckhoff's recommendation, you must copy the data from the old to the new storage medium. You can use the Beckhoff Service Tool (BST) for this purpose. BST is a graphical backup and restore program for PCs with a Windows operating system. You can create an image of your operating system and use it to back up the operating system. -
Page 31: Troubleshooting
No power supply to the panel PC Check the power supply cable Cable not connected 1. Correctly connect the cable 2. Call Beckhoff Service Panel PC boots, software starts, The cause of the error is the Call the machine or software... -
Page 32: Technical Data
Technical data Technical data Table 11: Technical data Product designation CP77xx Supply voltage 20.4-30 V (24 V power supply unit, NEC class 2) Maximum power consumption with 12-inch: approx. 41 W basic configuration 15-inch: approx. 45 W 19-inch: approx. 50 W Protection rating IP65 Vibration resistance (sinusoidal EN 60068-2-6: 10 ... -
Page 33: Appendix
Telephone: + 49 (0) 5246/963-0 Fax: + 49 (0) 5246/963-198 email: info@beckhoff.de The addresses of the worldwide Beckhoff subsidiaries and agencies can be found on our website at http:// www.beckhoff.com/. You will also find further documentation for Beckhoff components there. -
Page 34: Approvals
Appendix 10.2 Approvals The following table shows the approvals of the panel PC based on the device generation: Table 12: Approvals CP22xx Device generation Approvals CP77xx-xxxx-0040 CE, EAC, UKCA, FCC CP77xx-xxxx-0050 CE, EAC, UKCA, FCC You will find all other applicable approvals on the name plate of your device. FCC approvals for the United States of America FCC: Federal Communications Commission Radio Frequency Interference Statement This device was tested and complies with the limits for a digital device of class A, according part 15 of the... - Page 35 CP77xx_Ethernet interface pin numbering .................. Fig. 6 CP77xx_name plate........................Fig. 7 CP77xx_protective conductor connection..................Fig. 8 Beckhoff Device Manager - Change passwords ................Fig. 9 Beckhoff Device Manager – Start page ..................Fig. 10 CP77xx_Select "Cleaning Mode"....................Fig. 11 CP77xx_configuration "Cleaning Mode" ..................
- Page 36 List of tables List of tables Table 1 Legend CP77xx structure......................Table 2 RS232 pin assignment ......................... Table 3 Voltage socket pin assignment CP77xx-0040................Table 4 Voltage socket pin assignment CP77xx-0050................Table 5 Ethernet interface pin assignment....................Table 6 Connection cable CP77xx......................Table 7 Legend CP77xx name plate......................
- Page 38 More Information: www.beckhoff.com/cp77xx Beckhoff Automation GmbH & Co. KG Hülshorstweg 20 33415 Verl Germany Phone: +49 5246 9630 info@beckhoff.com www.beckhoff.com...
