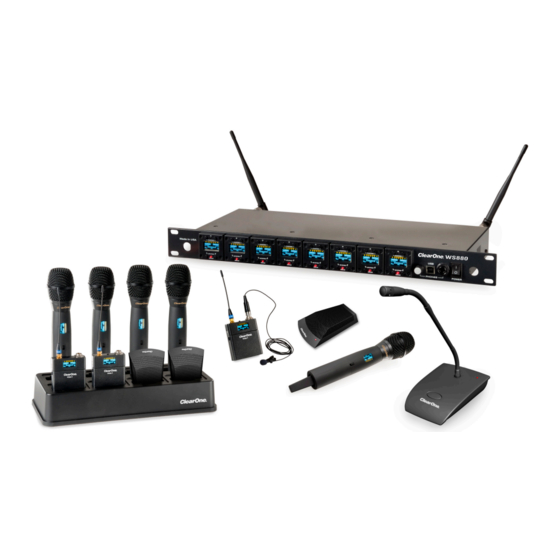

ClearOne WS800 Application Manual
Wireless microphone system antenna application guide
Hide thumbs
Also See for WS800:
- Quick start manual (15 pages) ,
- Application manual (12 pages) ,
- Manual (5 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ClearOne WS800
Summary of Contents for ClearOne WS800
- Page 1 Application Guide WS800 Wireless Microphone System Antenna Application Guide...
- Page 2 ClearOne Extension Antennas Application Guide ClearOne’s digital technology supports much larger microphone systems than is possible with analog technology. It should be noted that marginal antenna designs may work well with smaller systems, but they can cause hits and dropout as the channel counts go up. On the other hand, a well designed antenna system delivers excellent performance with both big and small systems.
- Page 3 Case I: Flexible Configurations Conference Room 1st Choice Factor Antennas In Drop Ceiling All of the transmitters are about the same distance to the closest antenna. The IMD product is small compared to the transmitter signal. It meets the design rule. Diversity The antennas are separated so at least one antenna is always out of the null.
- Page 4 Case II: Split Flexible Configurations Conference Room 1st Choice Factor 4 Antennas In Drop Ceiling All of the transmitters are about the same distance to the closest antenna. The IMD product is small compared to the transmitter signal. It meets the design rule. Diversity The antennas are separated so at least one antenna is always out of the null.
- Page 5 Case III: Small Auditorium or Church 1st Choice Factor 2 Antennas In Drop Ceiling All of the transmitters are about the same distance to the closest antenna. The IMD product is small compared to the transmitter signal. This meets the design rule. Diversity The antennas are separated so at least one antenna is always out of the null.
- Page 6 Case III: (continued) Small Auditorium or Church 3rd Choice Factor 2 Antennas On Back Wall All of the transmitters are about the same distance to the closest antenna. The IMD product is small compared to the transmitter signal. This meets the design rule. Diversity The antennas are separated so at least one antenna is always out of the null.
- Page 7 Separate the antennas sufficiently so at least one receives a strong signal. (3) Dipole Antennas: ClearOne systems are shipped with dipole (rabbit ear) antennas, but they are only recommended with small systems and only when they are in the line of sight. They provide only a minimal diversity.
- Page 8 (5) RF Scan: Antenna Power Measument Run the ClearOne Remote software RF Scanner to verify the antennas and cables are working correctly. Each transmitter is represented by two green lines, one for each antenna. The received power from at least one antenna should always be between -40 and -60 dBm.
-
Page 9: Antenna Mounting Instructions
Paint: The plastic case can be painted with non-metalic paint to match the decor. Outdoor Mounting: ClearOne extension antennas are designed for outdoor use, but they operate normally mounted inside a waterproof plastic box. Polar Pattern: ClearOne extension antennas have a 160 degree polar pattern. Ceiling mounted antennas typically cover the entire room. - Page 10 Mounting Instructions for Mic Stands icrophone tand ounting Thread the antenna onto the mic stand. Gently pry the exterior case from the rest of the antenna assembly. Attach antenna cable to TNC connector on the antenna assembly. Hand tighten only. Reattach the exterior case. Position antennas according to the rules in the case studies above.
- Page 11 Sales: 800-707-6994 Other product names may be registered trademarks of their respective owners who do not necessarily endorse ClearOne or ClearOne’s products. All rights reserved. Information in Fax: 801-977-0087 this document subject to change without notice. © 2012 ClearOne. DOC-0082-001 Revision 1.0 December 2012.
