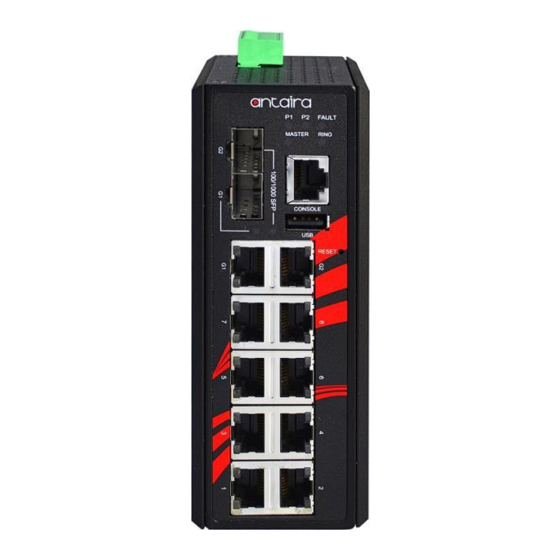

ANTAIRA LMP-1002C-SFP-24 Series Hardware Manual

10-port industrial poe+ gigabit managed ethernet switch with 8*10/100tx 30w/port and 2*gigabit combo ports 2*10/100/1000tx rj45 and 2*100/1000 sfp slots; 12-36vdc power input
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Antaira Industrial Ethernet Switches
LMP-1002G-SFP-24 Series User Manual V1.0
LMP-1002C-SFP-24 Series
10-Port Industrial PoE+ Gigabit Managed Ethernet Switch with
8*10/100Tx (30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx
RJ45 and 2*100/1000 SFP Slots); 12~36VDC Power Input
Hardware Manual
Version 1.2
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMP-1002C-SFP-24 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ANTAIRA LMP-1002C-SFP-24 Series

Summary of Contents for ANTAIRA LMP-1002C-SFP-24 Series

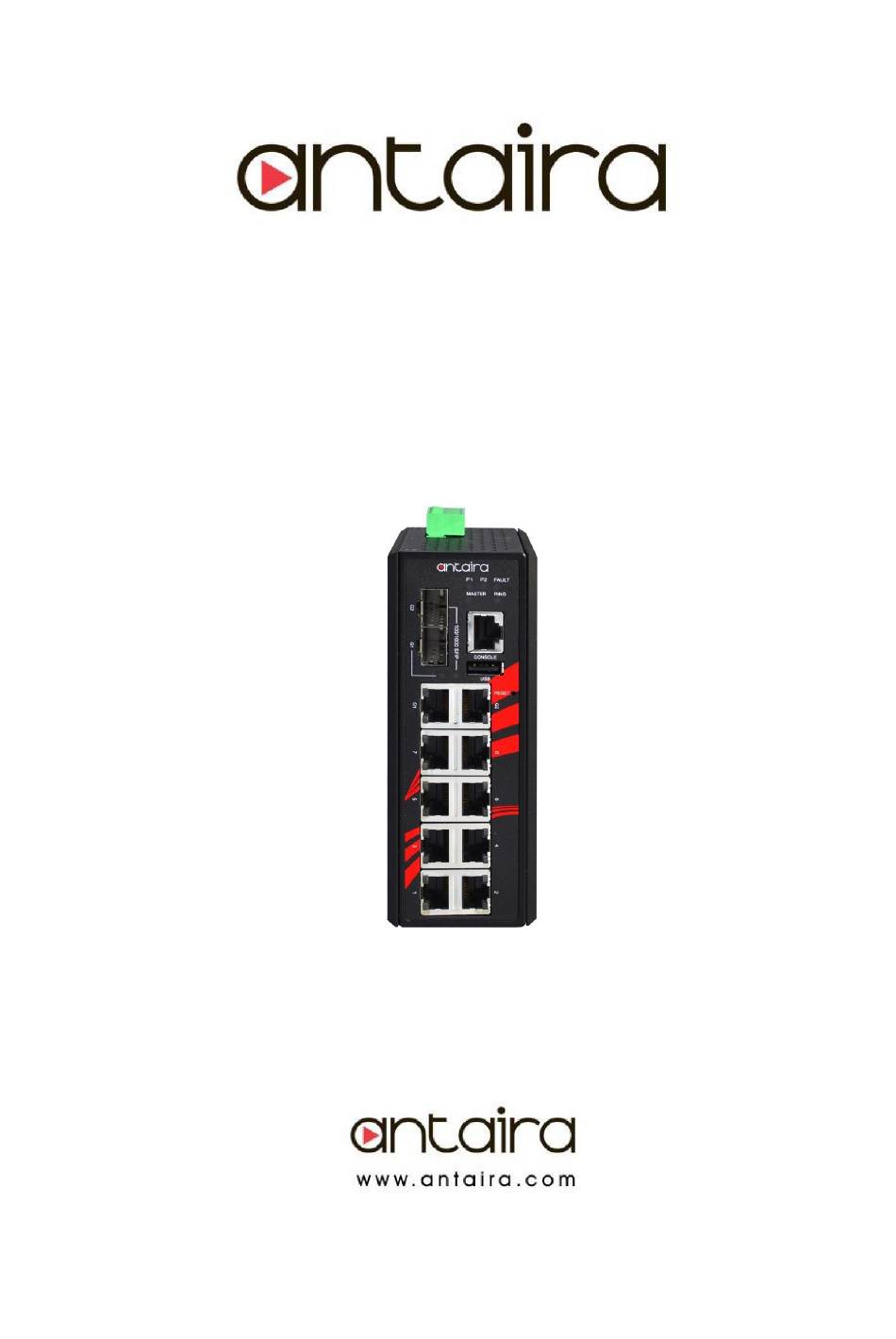

  • Page 1 Antaira Industrial Ethernet Switches LMP-1002G-SFP-24 Series User Manual V1.0 LMP-1002C-SFP-24 Series 10-Port Industrial PoE+ Gigabit Managed Ethernet Switch with 8*10/100Tx (30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots); 12~36VDC Power Input Hardware Manual Version 1.2...
  • Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
  • Page 3 Industrial Grade Gigabit PoE Managed Ethernet Switches Manual Version 1.2 (February 2018) This manual supports the following models: LMP-1002C-SFP-24  LMP-1002C-SFP-24-T  This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).

  • Page 4: Table Of Contents

    Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions...

  • Page 5: Introduction

    100MB or Gigabit fiber connection. The combo ports help achieve bandwidth and/or distance concern applications. The LMP-1002C-SFP-24 series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms...

  • Page 6: Product Hardware Features

    Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2  IEEE802.1q VLAN tagging, port-based VLAN support  IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group  Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ...

  • Page 7: Package Contents

    Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 1.4 Package Contents 1– LMP-1002C-SFP-24 series: 10-port industrial gigabit PoE+ managed Ethernet switch, With 8*10/100Tx (PSE 30W/Port) and 2*Gigabit Combo Ports, (w/2*10/100/1000Tx RJ45  and 2*100/1000 SFP Slots); 12~36VDC Power Input (voltage booster)

  • Page 8: Hardware Description

    2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1002C-SFP-24 series: 10-port industrial gigabit PoE+ managed Ethernet switch, with 8*10/100Tx (PSE 30W/Port) and 2*Gigabit combo ports, (w/2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots); 12~36VDC power input (voltage booster).

  • Page 9: Front Panel

    Figure 2.2. Figure2.2 - The Front Panel of LMP-1002C-SFP-24 Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMP-1002C-SFP-24 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs 12~36VDC.

  • Page 10: Led Indicators

    Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.

  • Page 11: Reset Button

    Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds.

  • Page 12: Cabling

    (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. 2.7.1 Gigabit Combo Port - Copper/SFP (Mini-GBIC) Antaira Technologies’ LMP-1002C-SFP-24 series has two auto-detected Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots for fiber connection) shown in Figure 2.6.
  • Page 13 Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 **Note: The Gigabit combo ports (SFP/Copper) cannot be working at the same time. The SFP port has a higher priority than the copper port. When inserting a 100M or 1000M SFP transceiver (which has connected to the remote device via fiber cable) into the SFP port, the connection of the accompanying copper port link will be down.
  • Page 14 Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.10.

  • Page 15: Wiring The Power Inputs

    Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 2.8 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12.

  • Page 16: Grounding Note

    Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 The wire gauge for the terminal block should range between 12 ~ 24AWG   If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm.
  • Page 17 Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 2. To remove the DIN-Rail bracket, do the opposite from step 1. 3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN- Rail on to the track as shown below in Figure 3.2.

  • Page 18: Wall Mounting

    Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP-24 Series Hardware Manual V1.2 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1.

  • Page 19: Hardware Installation

    4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-1002C-SFP-24 series: 10-port industrial gigabit PoE+ managed Ethernet switches with 8*10/100Tx (PSE: 30W/Port) and 2*Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots); 12~36VDC input (w/voltage booster).

  • Page 20: Technical Specifications

    Clean the device with dry soft cloth.  5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-1002C-SFP-24 series: 10-port industrial gigabit PoE+ managed Ethernet switch, with 8*10/100Tx (PSE 30W/Port) and 2*Gigabit combo ports, (w/2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots); 12~36VDC power input (voltage booster).
  • Page 21 -40°C ~ 85°C (-40°F ~ 185°F) Ambient Relative Humidity 5 to 95%, (non-condensing) FCC Class A IEC6100-4-2/3/4/5/6/8; IEC6100-6-2; IEC6100-6-4 Regulatory IEC60068-2-32 (Free fall) Approvals Stability Testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) Safety UL 61010-1, 61010-2-201 Certifications NEMA TS2 Table 5.1 - LMP-1002C-SFP-24 Series Technical Specifications...
  • Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
