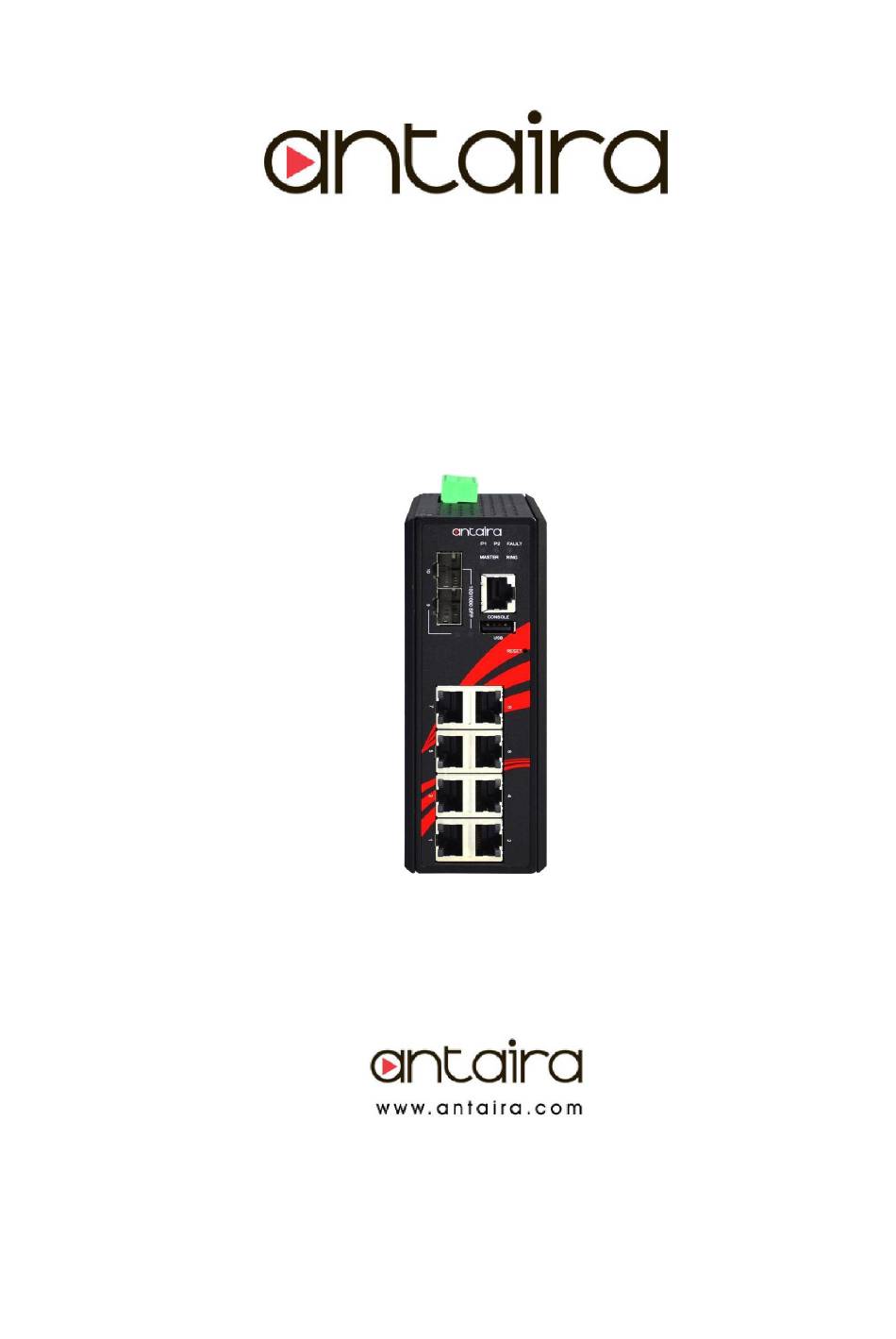

- Page 1 Antaira Industrial Ethernet Switches LMP-1002G-SFP Series User Manual V1.1 LMP-1002G-SFP Series 10-Port Industrial PoE+ Gigabit Managed Ethernet Switch with 8*10/100/1000Tx (30W/Port) and 2*100/1000 SFP Slots Hardware Manual Version 1.2...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Gigabit PoE Managed Ethernet Switches Hardware Manual Version 1.2 (February 2018) This manual supports the following models: • LMP-1002G-SFP • LMP-1002G-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
SNMP, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1002G-SFP series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 HTTPS, SSH/SSL, TFTP MODBUS TCP for SCADA system integration Port Configuration Status, statistics, mirroring, rate limiting, event syslog Event Handling Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP trap and Fault Alarm Relay Output Software Upgrade via TFTP and HTTP... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 1.4 Package Contents 1– LMP-1002G-SFP series: 10-port industrial gigabit PoE+ managed Ethernet switch, with 8*10/100/1000Tx (PSE 30W/Port) and 2*100/1000 SFP Slots 1-Product CD 2-Wall mounting brackets and screws ... -
Page 8: Hardware Description
LMP-1002G-SFP Series Hardware Manual V1.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1002G-SFP series: 10-port industrial gigabit PoE+ managed Ethernet switches with 8*10/100/1000Tx and 2*100/1000 SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1... -
Page 9: Front Panel
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 2.2 Front Panel The front panel of the LMP-1002G-SFP series industrial gigabit PoE+ managed Ethernet switch is shown below in Figure 2.2. Figure 2.2 The Front Panel of LMP-1002G-SFP Series 2.3 Top View... -
Page 10: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 Seconds Function Save running configuration to USB Reboot the switch 7 or more Restore factory default Table 2.2 – Reset Button Functions 2.6 Ethernet Ports RJ-45 Ports RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. - Page 13 Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.9.
-
Page 14: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 2.8 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.11. -
Page 15: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 The wire gauge for the terminal block should range between 12 ~ 24AWG If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to ... - Page 16 Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 Caution: The torque for tightening the screws on the device is 3.5 in-lbs. 2. To remove the DIN-Rail bracket, do the opposite from step 1. 3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN- Rail on to the track as shown below in Figure 3.2.
-
Page 17: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-SFP Series Hardware Manual V1.2 3.7 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 18: Hardware Installation
LMP-1002G-SFP Series Hardware Manual V1.2 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-1002G-SFP series: 10-port industrial gigabit PoE+ managed Ethernet switches with 8*10/100/1000Tx (PSE: 30W/Port) and 2*100/1000 SFP slots for fiber. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 19: Technical Specifications
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-1002G-SFP series: 10-port industrial gigabit PoE+ managed Ethernet switch with 8*10/100/1000Tx (PSE: 30W/Port) and 2*100/1000 SFP slots for fiber. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 20 -40°C ~ 85°C (-40°F ~ 185°F) Ambient Relative Humidity 5 to 95%, (non-condensing) FCC Class A IEC6100-4-2/3/4/5/6/8; IEC6100-6-2; IEC6100-6-4 Regulatory IEC60068-2-32 (Free fall) Approvals Stability Testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) Safety UL 61010-1, 61010-2-201 Certifications NEMA TS2 Table 5.1 - LMP-1002G-SFP Series Technical Specifications...
- Page 21 Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
