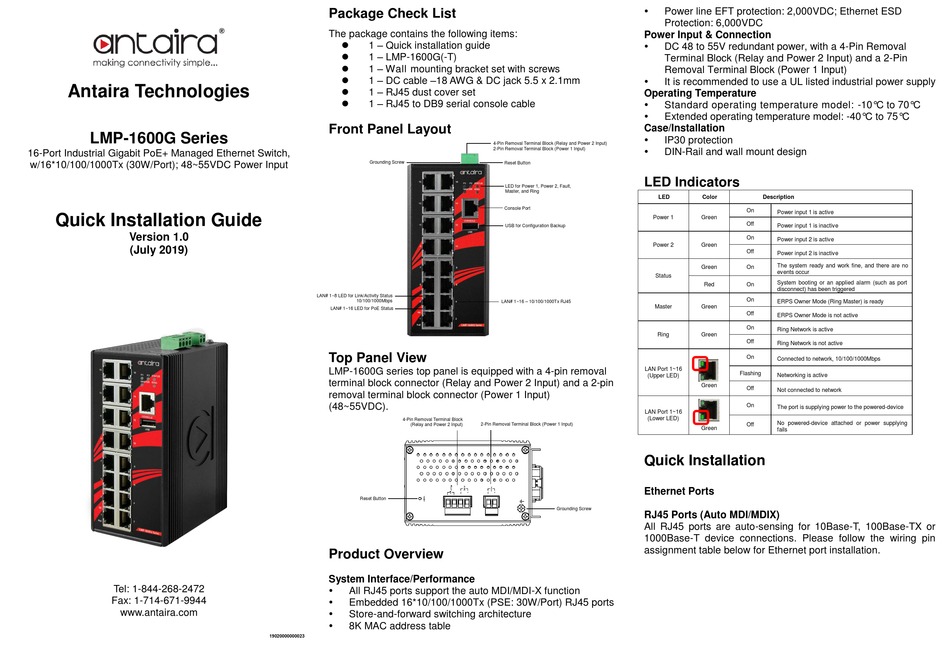

ANTAIRA LMP-1600G Series Quick Installation Manual

Antaira Technologies

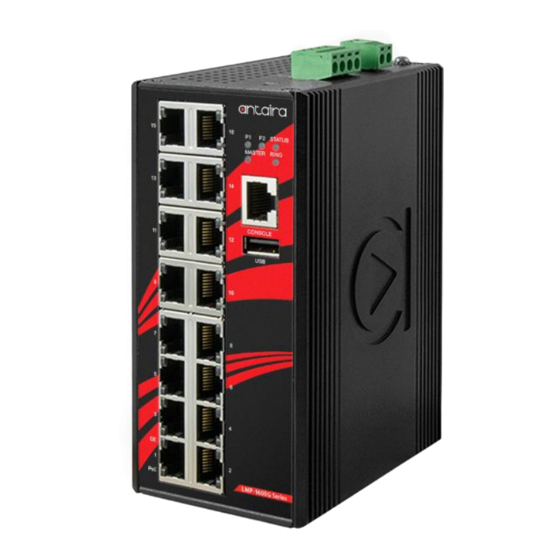

LMP-1600G Series
16-Port Industrial Gigabit PoE+ Managed Ethernet Switch,
w/16*10/100/1000Tx (30W/Port); 48~55VDC Power Input
Quick Installation Guide
Version 1.0
(July 2019)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMP-1600G(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
⚫ 1 – RJ45 to DB9 serial console cable

Front Panel Layout

Grounding Screw
LAN# 1~8 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~16 LED for PoE Status

Top Panel View

LMP-1600G series top panel is equipped with a 4-pin removal
terminal block connector (Relay and Power 2 Input) and a 2-pin
removal terminal block connector (Power 1 Input)
(48~55VDC).
4-Pin Removal Terminal Block
(Relay and Power 2 Input)

Reset Button

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI/MDI-X function

Embedded 16*10/100/1000Tx (PSE: 30W/Port) RJ45 ports

Store-and-forward switching architecture

8K MAC address table
19020000000023

Power Input & Connection


Operating Temperature


Case/Installation

4-Pin Removal Terminal Block (Relay and Power 2 Input)

2-Pin Removal Terminal Block (Power 1 Input)
Reset Button

LED Indicators

LED for Power 1, Power 2, Fault,
Master, and Ring
Console Port
Power 1
USB for Configuration Backup
Power 2
Status
LAN# 1~16 – 10/100/1000Tx RJ45
Master
LAN Port 1~16
(Upper LED)
LAN Port 1~16
(Lower LED)
2-Pin Removal Terminal Block (Power 1 Input)

Quick Installation

Ethernet Ports

Grounding Screw

RJ45 Ports (Auto MDI/MDIX)

All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
DC 48 to 55V redundant power, with a 4-Pin Removal
Terminal Block (Relay and Power 2 Input) and a 2-Pin
Removal Terminal Block (Power 1 Input)
It is recommended to use a UL listed industrial power supply
Standard operating temperature model: -10°C to 70°C
Extended operating temperature model: -40°C to 75°C
IP30 protection
DIN-Rail and wall mount design
LED Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
The system ready and work fine, and there are no
Green On
events occur
System booting or an applied alarm (such as port
Red On
disconnect) has been triggered
On
ERPS Owner Mode (Ring Master) is ready
Green
Off
ERPS Owner Mode is not active
On
Ring Network is active
Ring Green
Off
Ring Network is not active
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
The port is supplying power to the powered-device
No powered-device attached or power supplying
Off
Green
fails
