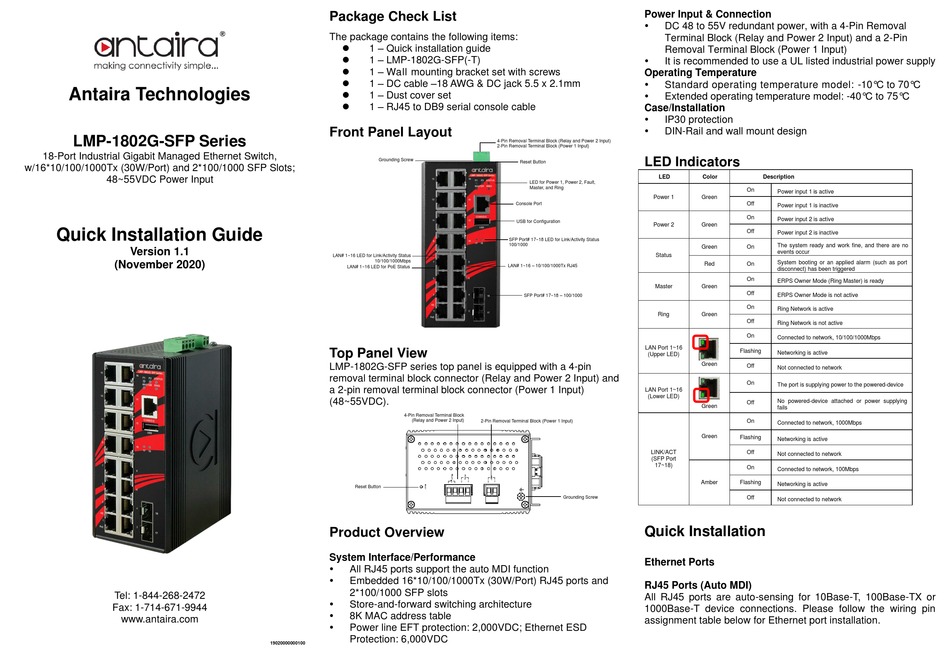

ANTAIRA LMP-1802G-SFP Series Quick Installation Manual

Antaira Technologies
LMP-1802G-SFP Series
18-Port Industrial Gigabit Managed Ethernet Switch,
w/16*10/100/1000Tx (30W/Port) and 2*100/1000 SFP Slots;
48~55VDC Power Input
Quick Installation Guide
Version 1.1
(November 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMP-1802G-SFP(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set
⚫ 1 – RJ45 to DB9 serial console cable

Front Panel Layout

Grounding Screw
LAN# 1~16 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~16 LED for PoE Status
Top Panel View
LMP-1802G-SFP series top panel is equipped with a 4-pin
removal terminal block connector (Relay and Power 2 Input) and
a 2-pin removal terminal block connector (Power 1 Input)
(48~55VDC).
4-Pin Removal Terminal Block
(Relay and Power 2 Input)
Reset Button

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI function

Embedded 16*10/100/1000Tx (30W/Port) RJ45 ports and
2*100/1000 SFP slots

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000100
Power Input & Connection



Operating Temperature




Case/Installation



4-Pin Removal Terminal Block (Relay and Power 2 Input)
2-Pin Removal Terminal Block (Power 1 Input)

LED Indicators

Reset Button
LED for Power 1, Power 2, Fault,
Master, and Ring
Power 1
Console Port
USB for Configuration
Power 2
SFP Port# 17~18 LED for Link/Activity Status
100/1000
Status
LAN# 1~16 – 10/100/1000Tx RJ45
Master
SFP Port# 17~18 – 100/1000
LAN Port 1~16
(Upper LED)
LAN Port 1~16
(Lower LED)
2-Pin Removal Terminal Block (Power 1 Input)
LINK/ACT
(SFP Port
17~18)
Grounding Screw

Quick Installation

Ethernet Ports

RJ45 Ports (Auto MDI)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
DC 48 to 55V redundant power, with a 4-Pin Removal
Terminal Block (Relay and Power 2 Input) and a 2-Pin
Removal Terminal Block (Power 1 Input)
It is recommended to use a UL listed industrial power supply
Standard operating temperature model: -10°C to 70°C
Extended operating temperature model: -40°C to 75°C
IP30 protection
DIN-Rail and wall mount design
LED Color Description
On
Power input 1 is active
Green
Off
Power input 1 is inactive
On
Power input 2 is active
Green
Off
Power input 2 is inactive
The system ready and work fine, and there are no
Green On
events occur
System booting or an applied alarm (such as port
Red On
disconnect) has been triggered
On
ERPS Owner Mode (Ring Master) is ready
Green
Off
ERPS Owner Mode is not active
On
Ring Network is active
Ring Green
Off
Ring Network is not active
On
Connected to network, 10/100/1000Mbps
Flashing
Networking is active
Green
Off
Not connected to network
On
The port is supplying power to the powered-device
No powered-device attached or power supplying
Off
Green
fails
On
Connected to network, 1000Mbps
Green
Flashing
Networking is active
Off
Not connected to network
On
Connected to network, 100Mbps
Amber Flashing
Networking is active
Off
Not connected to network
