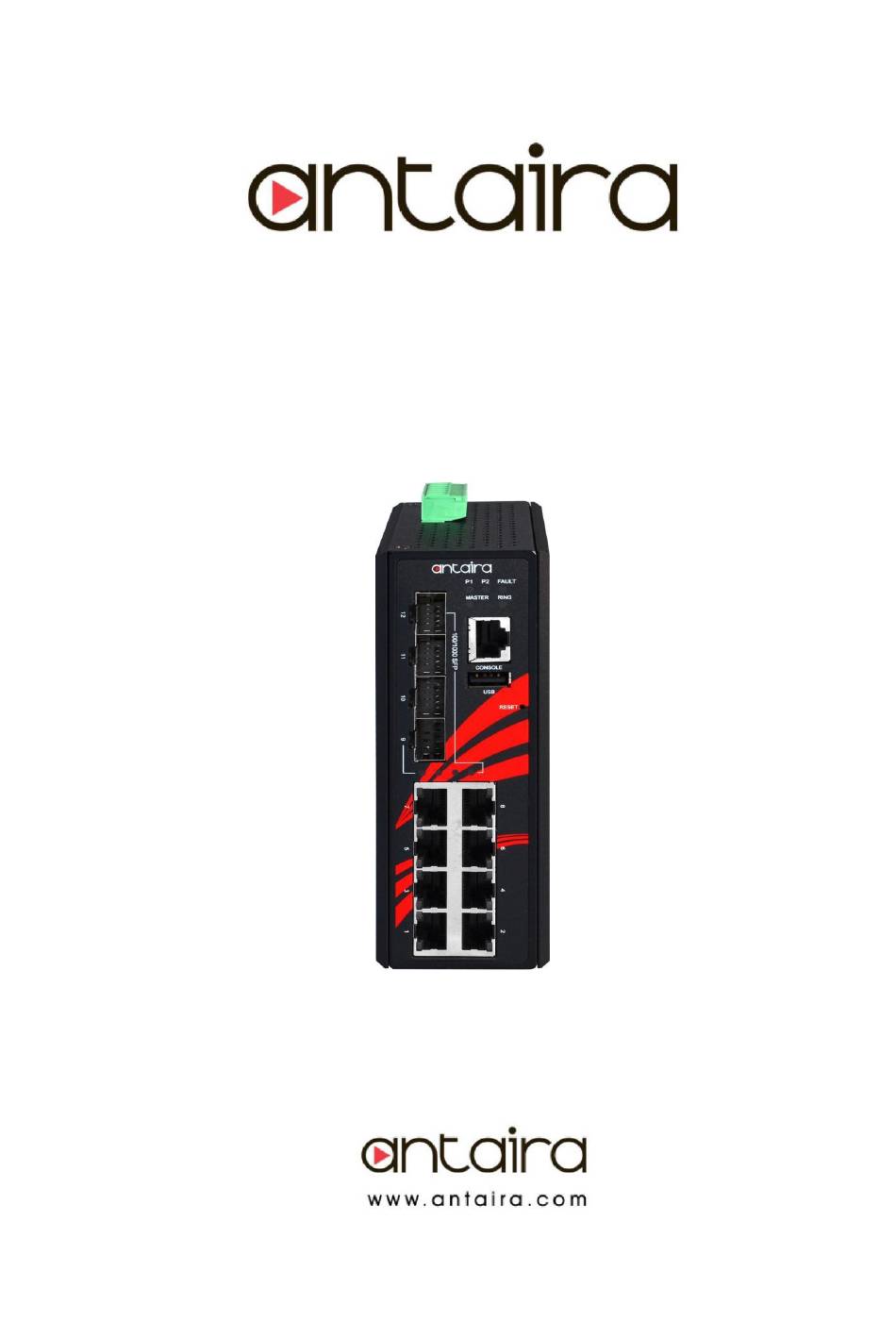

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Series User Manual V2.1 LMP-1204G-SFP Series (LMP-1204G-SFP / LMP-1204G-SFP-T) 12-Port Industrial PoE+ Gigabit Managed Ethernet Switch with 8*10/100/1000Tx (30W/Port) and 4*100/1000 SFP Slots Hardware Manual Version 1.3 P/N: 92001204480201...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 4 WARNING: EXPLOSION HAZARD – Do not disconnect while the circuit is live or unless the area is free of ignitable concentrations. This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com) or address (780...
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions 2.2 Front Panel... -
Page 6: Introduction
QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1204G-SFP series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 7: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ... -
Page 8: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 1.4 Package Contents 1– LMP-1204G-SFP series: 12-port industrial gigabit PoE+ managed Ethernet switch, with 8*10/100/1000Tx (PSE 30W/Port) and 4*100/1000 SFP slots for fiber connectivity 1-Product CD 2-Wall mounting brackets and screws ... -
Page 9: Hardware Description
LMP-1204G-SFP Hardware Manual V1.3 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1204G-SFP series: 12-port industrial gigabit PoE+ managed Ethernet switches with 8*10/100/1000Tx ports and 4*100/1000Fx SFP slots. (W x D x H) is 54mm x 99mm x 142mm Figure 2.1... -
Page 10: Front Panel

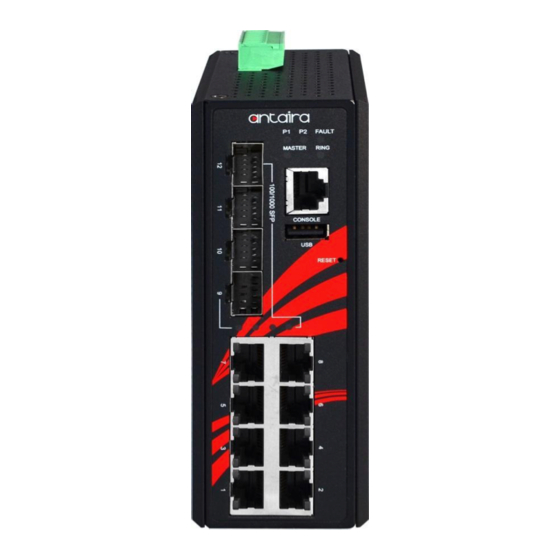

Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 2.2 Front Panel The front panel of the LMP-1204G-SFP series industrial gigabit PoE+ managed Ethernet switch is shown below in Figure 2.2. 6-Pin Removal Terminal Block (Power Input) Grounding Screw LED for PWR1, PWR2, and Fault –... -
Page 11: Led Indicators
(Right LED) PoE Indicators No powered-device attached or power supplying fails Table 2.1 - LED Indicators for LMP-1204G-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 12: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 13: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 Pin MDI-X Signal Name MDI Signal Name Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Transmit Data plus (TD+) Receive Data plus (RD+) -
Page 14: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 Note: Only use copper conductors, 60/75°C, tighten to 5lbs. • The wire gauge for the terminal block should range between 18~20 AWG. 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. -
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 16: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 17: Hardware Installation
LMP-1204G-SFP Hardware Manual V1.3 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-1204G-SFP series: 12-port industrial gigabit PoE+ managed Ethernet switches with 8*10/100/1000Tx (PSE: 30W/Port) ports and 4*100/1000 dual rate SFP fiber slots. Caution: This device is intended for use indoor and at altitudes up to 2000 meters. -
Page 18: Maintenance And Service
• Clean the device with dry soft cloth. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-1204G-SFP series: 12-port industrial gigabit PoE+ managed Ethernet switch with 8*10/100/1000Tx (PSE: 30W/Port) and 4*100/1000 SFP slots. IEEE 802.3 10Base-T 10Mbit/s Ethernet IEEE 802.3u... - Page 19 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Hardware Manual V1.3 Data Process Store and Forward 14,880 pps for 10Base-Tx Ethernet port Transfer Rate 148,800 pps for 100Base-TX Fast Ethernet port 1,488,000pps for 1000Base-TxGigabit Ethernet port Switch Packet Buffer 4 Mbits...
- Page 20 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
