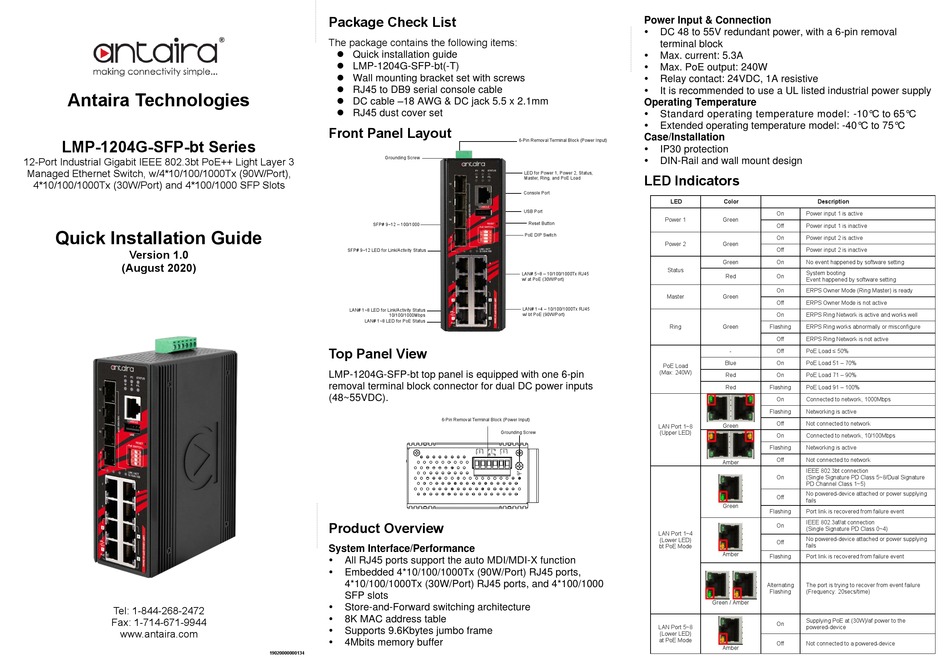

ANTAIRA LMP-1204G-SFP-bt Series Quick Installation Manual

Antaira Technologies

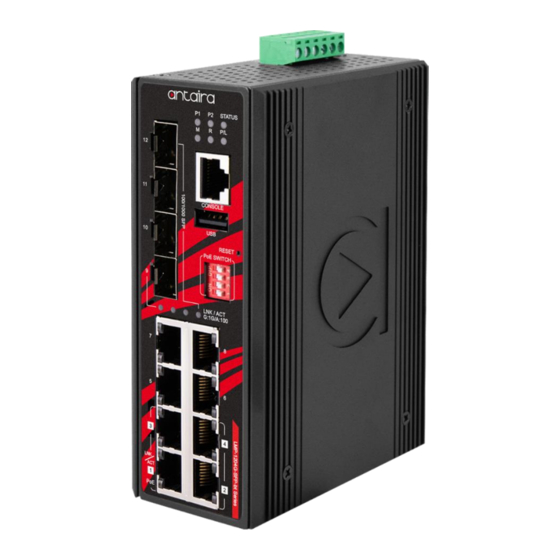

LMP-1204G-SFP-bt Series
12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3
Managed Ethernet Switch, w/4*10/100/1000Tx (90W/Port),
4*10/100/1000Tx (30W/Port) and 4*100/1000 SFP Slots
Quick Installation Guide
Version 1.0
(August 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com

Package Check List

The package contains the following items:
⚫ Quick installation guide
⚫ LMP-1204G-SFP-bt(-T)
⚫ Wall mounting bracket set with screws
⚫ RJ45 to DB9 serial console cable
⚫ DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ RJ45 dust cover set

Front Panel Layout

Grounding Screw
SFP# 9~12 – 100/1000
SFP# 9~12 LED for Link/Activity Status
LAN# 1~8 LED for Link/Activity Status
10/100/1000Mbps
LAN# 1~8 LED for PoE Status

Top Panel View

LMP-1204G-SFP-bt top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(48~55VDC).
6-Pin Removal Terminal Block (Power Input)

Product Overview

System Interface/Performance


All RJ45 ports support the auto MDI/MDI-X function

Embedded 4*10/100/1000Tx (90W/Port) RJ45 ports,
4*10/100/1000Tx (30W/Port) RJ45 ports, and 4*100/1000
SFP slots

Store-and-Forward switching architecture

8K MAC address table

Supports 9.6Kbytes jumbo frame

4Mbits memory buffer
19020000000134
Power Input & Connection

DC 48 to 55V redundant power, with a 6-pin removal
terminal block

Max. current: 5.3A

Max. PoE output: 240W

Relay contact: 24VDC, 1A resistive

It is recommended to use a UL listed industrial power supply

Operating Temperature


Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C

Case/Installation

6-Pin Removal Terminal Block (Power Input)

IP30 protection

DIN-Rail and wall mount design
LED for Power 1, Power 2, Status,

LED Indicators

Master, Ring, and PoE Load
Console Port
LED
USB Port
Power 1
Reset Button
PoE DIP Switch
Power 2
Status
LAN# 5~8 – 10/100/1000Tx RJ45
w/ at PoE (30W/Port)
Master
LAN# 1~4 – 10/100/1000Tx RJ45
w/ bt PoE (90W/Port)
Ring
PoE Load
(Max: 240W)
LAN Port 1~8
Grounding Screw (Upper LED)
LAN Port 1~4
(Lower LED)
bt PoE Mode
LAN Port 5~8
(Lower LED)
at PoE Mode
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Green On No event happened by software setting
System booting
Red On
Event happened by software setting
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On ERPS Ring Network is active and works well
Green Flashing ERPS Ring works abnormally or misconfigure
Off ERPS Ring Network is not active
- Off PoE Load ≤ 50%
Blue On PoE Load 51 – 70%
Red On PoE Load 71 – 90%
Red Flashing PoE Load 91 – 100%
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Amber
IEEE 802.3bt connection
On (Single Signature PD Class 5~8/Dual Signature
PD Channel Class 1~5)
No powered-device attached or power supplying
Off
fails
Green
Flashing Port link is recovered from failure event
IEEE 802.3af/at connection
On
(Single Signature PD Class 0~4)
No powered-device attached or power supplying
Off
fails
Amber
Flashing Port link is recovered from failure event
Alternating The port is trying to recover from event failure
Flashing (Frequency: 20secs/time)
Green / Amber
Supplying PoE at (30W)/af power to the
On
powered-device
Off Not connected to a powered-device
Amber
