Antaira Technologies - Industrial Ethernet Switches

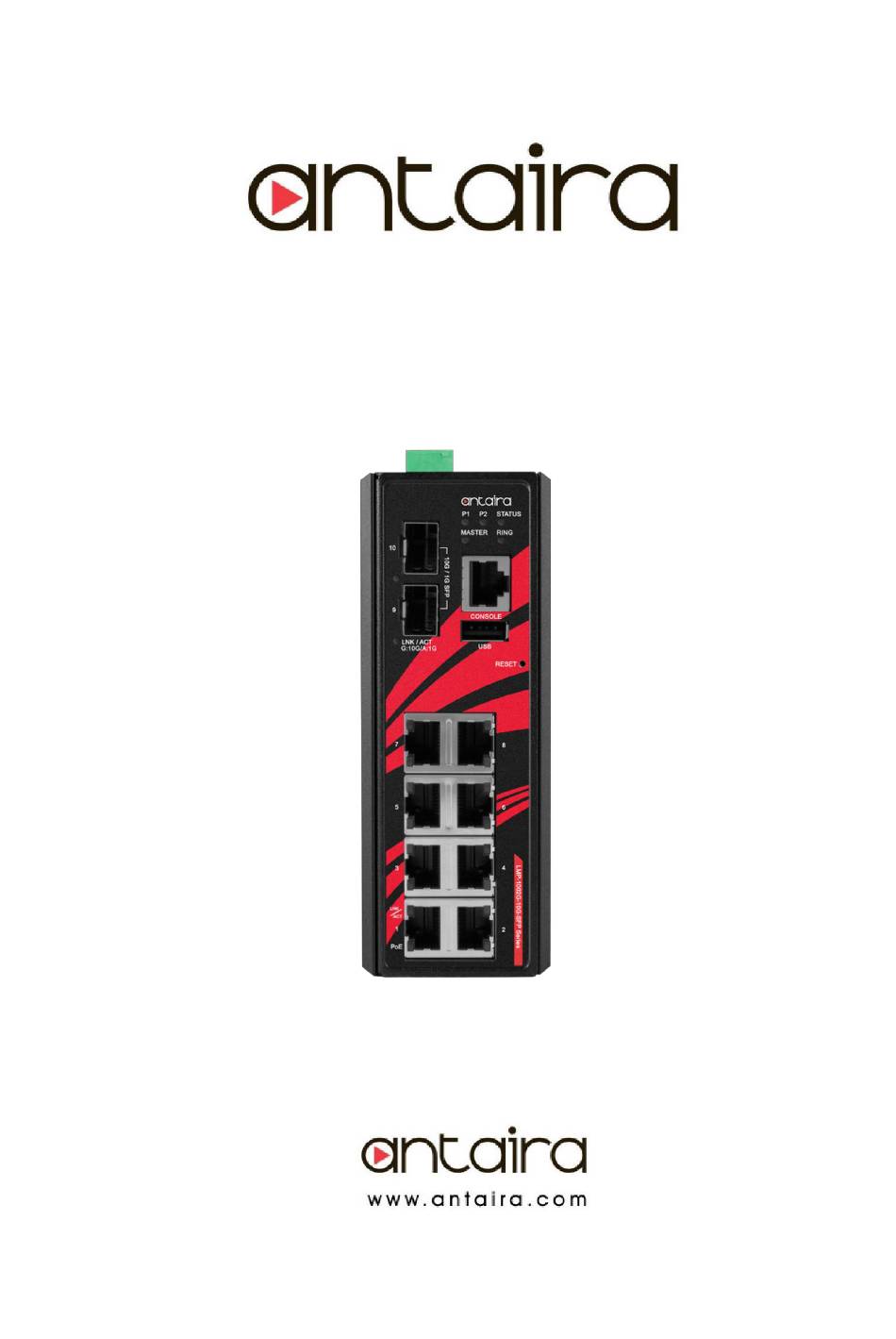

LMP-1204G-SFP Series User Manual V2.1
LMP-1002G-10G-SFP-24

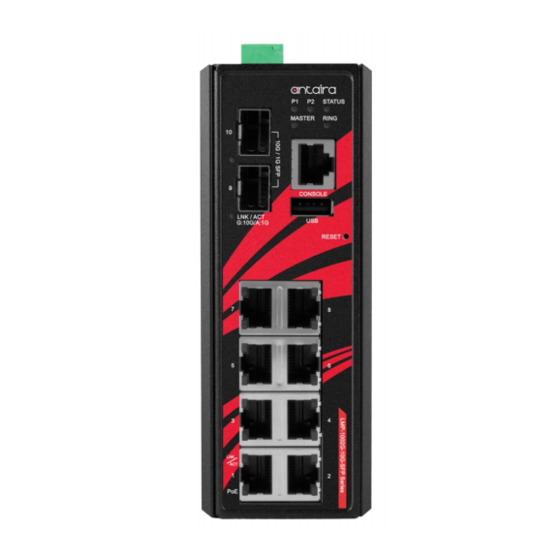

10-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, with 8*10/100/1000Tx
Ports (30W/Port) and 2*1G/10G SFP+ Slots; 12~55VDC Power Input
Hardware Manual
Version 1.0
(February 2020)
i
Advertisement
Table of Contents
Related Manuals for ANTAIRA LMP-1002G-10G-SFP-24
Summary of Contents for ANTAIRA LMP-1002G-10G-SFP-24
- Page 1 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Series User Manual V2.1 LMP-1002G-10G-SFP-24 10-Port Industrial PoE+ Light Layer 3 Managed Ethernet Switch, with 8*10/100/1000Tx Ports (30W/Port) and 2*1G/10G SFP+ Slots; 12~55VDC Power Input Hardware Manual Version 1.0 (February 2020)
- Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions 2.2 Front Panel... -
Page 5: Introduction
IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1002G-10G-SFP-24 is IP30 rated and DIN-rail mountable. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 ➢ IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group ➢ Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ➢... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 1.4 Package Contents 1 – LMP-1002G-10G-SFP-24 1 – Quick Installation Guide 1 – Wall mounting bracket set with screws 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm 1 –... -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1002G-10G-SFP-24: 54 x 142 x 99 mm Figure 2.1 LMP-1002G-10G-SFP-24 Physical Dimensions... -
Page 9: Front Panel
PoE Status Figure2.2 The Front Panel of LMP-1002G-10G-SFP-24 2.3 Top View Figure 2.3, below, shows the top panel of the LMP-1002G-10G-SFP-24 switch that is equipped with one 6-pin removal terminal block connector (12~55VDC). 6-Pin Removal Terminal Block Grounding Screw Figure2.3... -
Page 10: Led Indicators
Flashing Networking is active Not connected to network Table 2.1 - LED Indicators for LMP-1002G-10G-SFP-24 Caution: "P1" is the abbreviation for "Power 1", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". 2.5 Reset Button... -
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. Please refer to Table 2.2 for the timing and function. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 The following figures show the cabling schematics for straight-through and crossover. 2.7 Cabling 2.8 Wiring the Power Inputs Note: Only use copper conductors, 60/75°C, tighten to 5lbs. • The wire gauge for the terminal block should range between 18~20 AWG. -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 16: Hardware Installation
4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-1002G-10G-SFP-24: Caution: This device is intended for use indoor and at altitudes up to 2000 meters. Caution: The device is intended to be installed in an industrial control enclosure and panel. -
Page 17: Maintenance And Service
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 4.2 Maintenance and Service • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible. -
Page 18: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMP-1002G-10G-SFP-24 Hardware Manual V1.0 Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-1002G-10G-SFP-24: IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3z Gigabit Fiber IEEE 802.3ae 10 Gigabit Ethernet IEEE 802.3af/at... - Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
