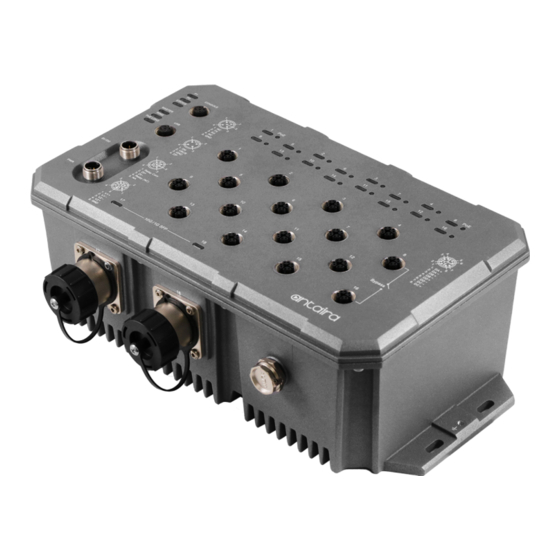

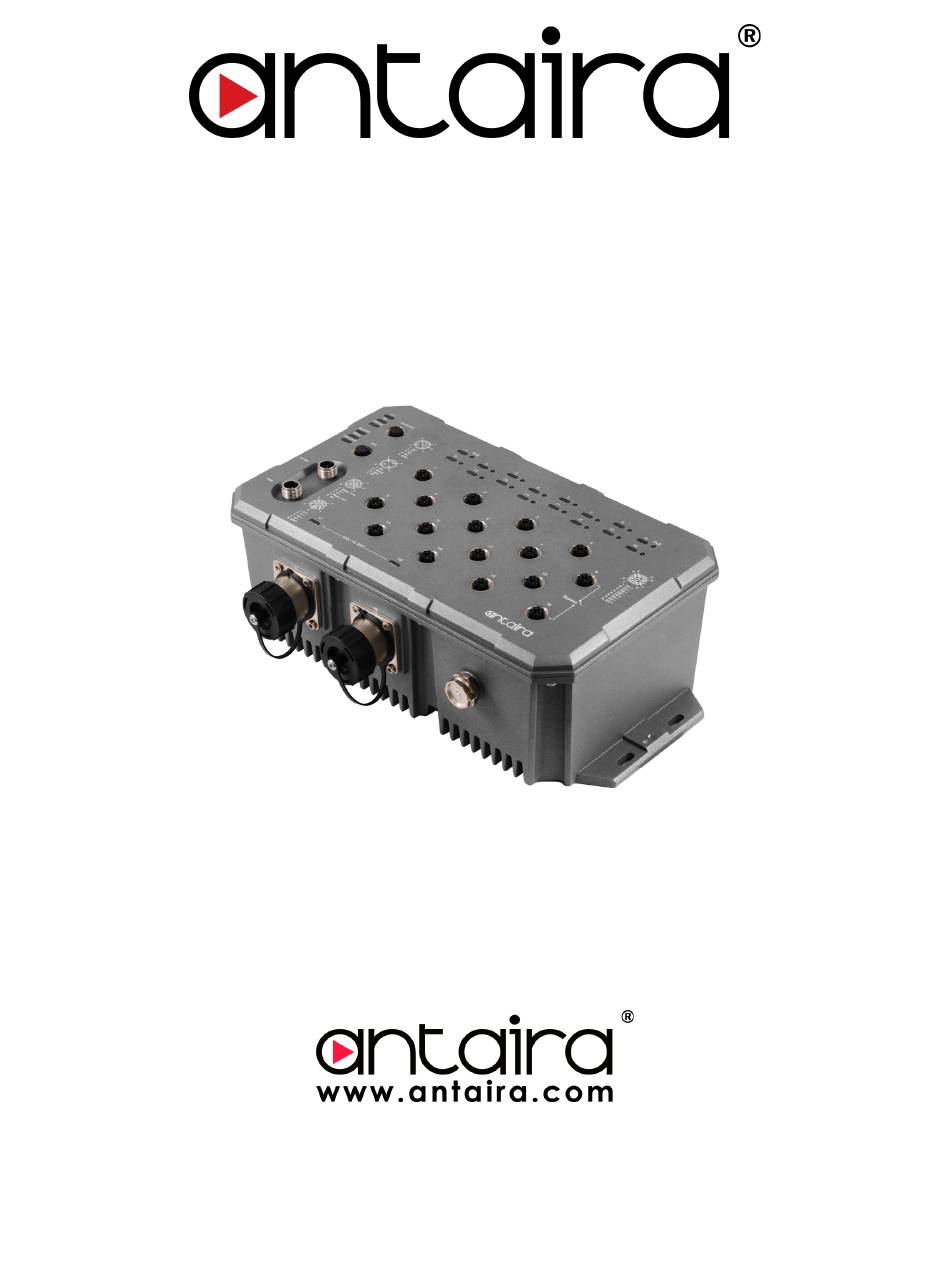

- Page 1 LMP-1802G-M12-10G-SFP-67-24 Series 18-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded) (30W/Port) and 2*1G/10G SFP Ports, 24~55VDC Power Input Hardware Manual Version 1.0 (November 2021)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Product Software Features 1.3 Package Contents 1.4 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Top View Panel... -
Page 6: Overview
Antaira Technologies’ LMP-1802G-M12-10G-SFP-67-24 Series is an 18-port managed gigabit Ethernet switch, which provides 16*10/100/1000 Base-T(X) with IEEE 802.3 af/at PoE compliant and 2*1G/10G fiber slots. LMP-1802G-M12-10G-SFP-67-24 Series is a fully manageable light layer 3 Ethernet switch series and supports power inputs redundancy. LMP-1802G-M12-10G-SFP-67-24 Series offers standardized network redundancy ITU-T G.8032 ERPS v2 (Ethernet Ring Protection Switch) protocol, providing <50ms recovery time to the network. -
Page 7: Product Software Features
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 IP67 protection metal housing Wall-mount design Installation in a Pollution Degree 2 industrial environment 1.2 Product Software Features Network Redundancy STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for network redundancy... -
Page 8: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 1.4 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this hardware manual. -
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 183mm x 295mm x 101.3mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Top View Panel Figure 2.3, below, shows the top panel of the product series:... -
Page 11: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its specific meaning, see below in Table 2.1. -
Page 12: Reset To Default
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 Not connected to the network Supplying power to the powered-device Amber Not connected to a powered device Connected to the network, 10Gbps Green Flashing Networking is active... - Page 13 Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 M12 8-Pin X-Coded Female Connector Pinouts 10/100Base-T(X) Signal 1000Base-T Signal Transmit Data + (TX+) BI_DA+ Transmit Data - (TX-) BI_DA- Receive Data + (RX+) BI_DB+ Receive Data - (RX-)
-
Page 14: Fiber Port
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 2.7 Fiber Port The small form-factor pluggable (SFP) is a compact optical transceiver used in optical communications for both telecommunication and data communication applications. Please follow the below steps to insert the fiber port. -
Page 15: Usb Port
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 2.8 USB Port ● It is a M12 4-Pin A-Coded female connector ● USB Port is for configuration backup / restore ● M12 connector M12 4-Pin A-Coded female connector... -
Page 16: Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 2.10 Power Inputs This industrial Ethernet switch provides dual DC power inputs for redundancy through the M12 5-pin K-Coded male connector. Prepare the M12 5-pin K-Coded cable for power connection. Table 2.5 shows the pin assignment. - Page 17 Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 ● Connection of Cables ○ Minimum Wire Gauge: 24AWG ● Relay Contact Relay is opened if any event listed below happens: 1. The current PoE outputs of all connected PDs exceed 240 Watts (for PoE models) 2.
-
Page 18: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 ● Digital Input (DI) The digital input is used for monitoring two external events via an external voltage source. When the voltage level on digital input pins changes from high voltage to low voltage, the DI function will be triggered. Table 2.7 is shown a detailed specification of the digital input. -
Page 19: Bypass Function
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 2.13 Bypass Function This Ethernet switch supports bypass function by two Ethernet ports (P8 and P16). When one of the Ethernet switches loses power, Ethernet ports (P8 and P16) will bypass the power lost Ethernet switch to prevent the network from disconnecting. -
Page 20: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 Wall Mounting Follow the steps below to mount the industrial Ethernet switch to a wall using the screw holes as shown below in Figure 3.1. - Page 21 Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 Note: Make sure to disconnect all cables from the switch before removing the unit from the wall. Figure 3.2 - Position of the screw holes...
-
Page 22: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 23: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 24: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping L2 Switching v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave... - Page 25 Antaira Technologies - Industrial Ethernet Switches LMP-1802G-M12-10G-SFP-67-24 Series - Hardware Manual - v1.0 Auto-negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection SFP Port 2*1G/10G SFP slots RS232 Serial Console 1*RS232 with M12 5-pin A-coded female connector 1*USB 2.0 with M12 4-pin A-coded female connector for configuration Configuration Backup...
- Page 26 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
