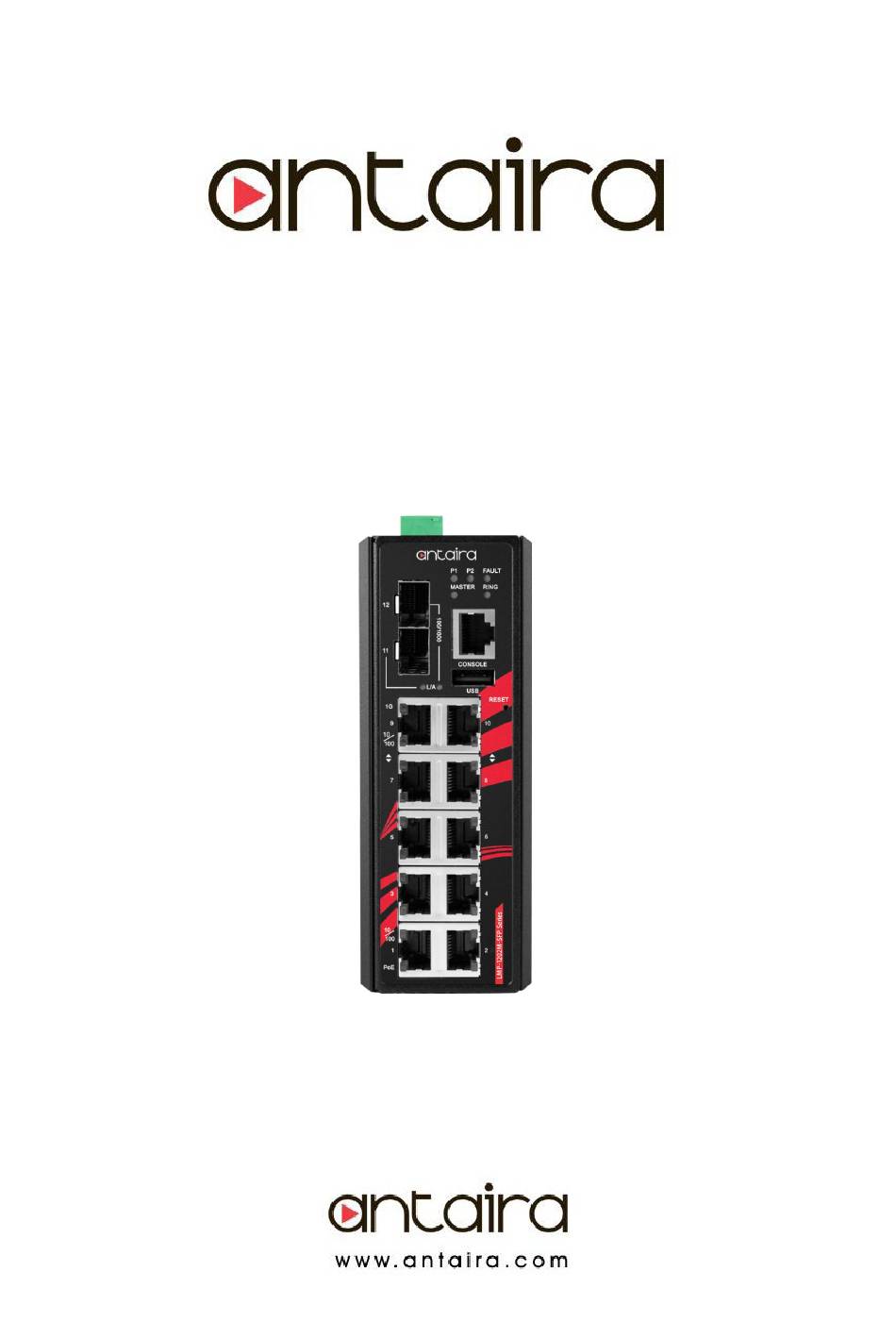

Antaira Industrial Ethernet Switches
LMP-1002G-SFP-24 Series User Manual V1.0
LMP-1202M-SFP-24 Series
(LMP-1202M-SFP-24 / LMP-1202M-SFP-24-T)
12-Port Industrial PoE+ Managed Ethernet Switch with 8*10/100Tx (30W/Port),
2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots; 12~55VDC Power Input
Hardware Manual
Version 1.0
i
Advertisement
Table of Contents
Related Manuals for ANTAIRA LMP-1202M-SFP-24
Summary of Contents for ANTAIRA LMP-1202M-SFP-24
- Page 1 Antaira Industrial Ethernet Switches LMP-1002G-SFP-24 Series User Manual V1.0 LMP-1202M-SFP-24 Series (LMP-1202M-SFP-24 / LMP-1202M-SFP-24-T) 12-Port Industrial PoE+ Managed Ethernet Switch with 8*10/100Tx (30W/Port), 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots; 12~55VDC Power Input Hardware Manual Version 1.0...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 WARNING: EXPLOSION HAZARD – Do not disconnect while the circuit is live or unless the area is free of ignitable concentrations. This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com) or address (780 Challenger Street, Brea,...
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL, increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1202M-SFP-24 series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models of either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 Egress, Broadcast Storm Control, Diffserv IEEE802.1q VLAN Tagging, Port-based VLAN Support IGMP Snooping v1/v2, IGMP Filtering / Throttling, IGMP Query up to 256 Group Supports IPv4/IPv6, RMON, MIB II, Port Mirroring, Event Syslog, DNS, NTP/SNTP, HTTPS,... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 1.4 Package Contents 1– LMP-1202M-SFP-24 Series: 12-Port Industrial PoE+ Managed Ethernet Switch, with 8*10/100Tx (PSE 30W/Port), 2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots; 12~55VDC Power Input (Voltage Booster) 1-Quick Installation Guide... -
Page 8: Hardware Description
2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1202M-SFP-24 series: 12- port industrial gigabit PoE+ managed Ethernet switch, with 8*10/100Tx (PSE: 30W/Port), 2*10/100/1000Tx RJ45, and 2*100/1000 SFP slots; 12~55VDC power input (voltage booster). -
Page 9: Front Panel

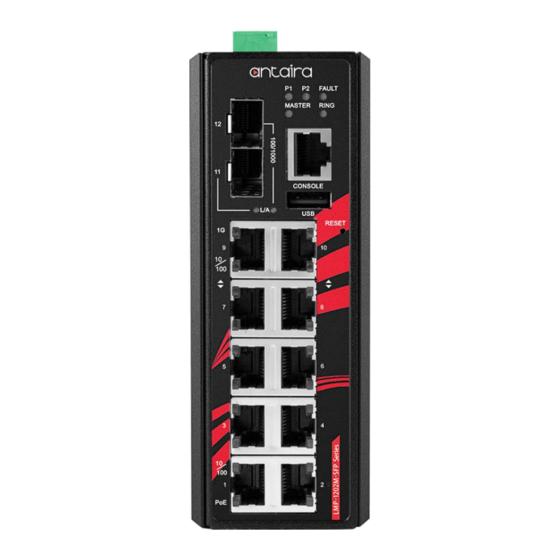

Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 2.2 Front Panel The front panel of the LMP-1202M-SFP-24 series industrial PoE+ managed Ethernet switch is shown below in Figure 2.2. 6-Pin Removal Terminal Block (Power Input) Grounding Screw... -
Page 10: Led Indicators
Flashing Networking is active (Lower LED) Not connected to network Table 2.1 - LED Indicators for LMP-1202M-SFP-24 Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 The following figures show the cabling schematics for straight-through and crossover. Figure 2.4 Figure 2.5 Straight-Through Cable Schematic Crossover Cable Schematic 2.7 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than... - Page 13 Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 Figure 2.9 - LC Connector to the Transceiver To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.10.
-
Page 14: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 2.7 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12. -
Page 15: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 The wire gauge for the terminal block should range between 12 ~ 24AWG • • If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. - Page 16 Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 2. To remove the DIN-Rail bracket, do the opposite from step 1. 3. After the DIN-Rail bracket is installed on the rear side of the switch, insert the top of the DIN- Rail on to the track as shown below in Figure 3.2.
-
Page 17: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-1202M-SFP-24 Series Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 18: Hardware Installation
LMP-1202M-SFP-24 Series Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-1202M-SFP-24 series: 12-port industrial PoE+ managed Ethernet switches with 8*10/100Tx (PSE: 30W/Port), 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots; 12~55VDC power input. -
Page 19: Technical Specifications
• Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-1202M-SFP-24 series: 12-port industrial PoE+ managed Ethernet switch, with 8*10/100Tx (PSE 30W/Port), 2*10/100/1000Tx RJ45, and 2*100/1000 SFP Slots; 12~55VDC power input. - Page 20 Power Connection 1 removable 6-contact terminal block Requirement 90 Watts @12-48VDC or 240 Watts @48-55VDC Power Consumption LMP-1202M-SFP-24: -10° to 70° C (14° to 158° F); Operating Temperature LMP-1202M-SFP-24-T: -40° to 75° C (-40° to 167° F) Environmental Limits Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
- Page 21 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
