LMP-1204G-SFP-bt Series
12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet
Switch, w/4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port), and
4*100/1000 SFP Slots
Hardware Manual
Version 1.0
(August 2020)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMP-1204G-SFP-bt Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ANTAIRA LMP-1204G-SFP-bt Series

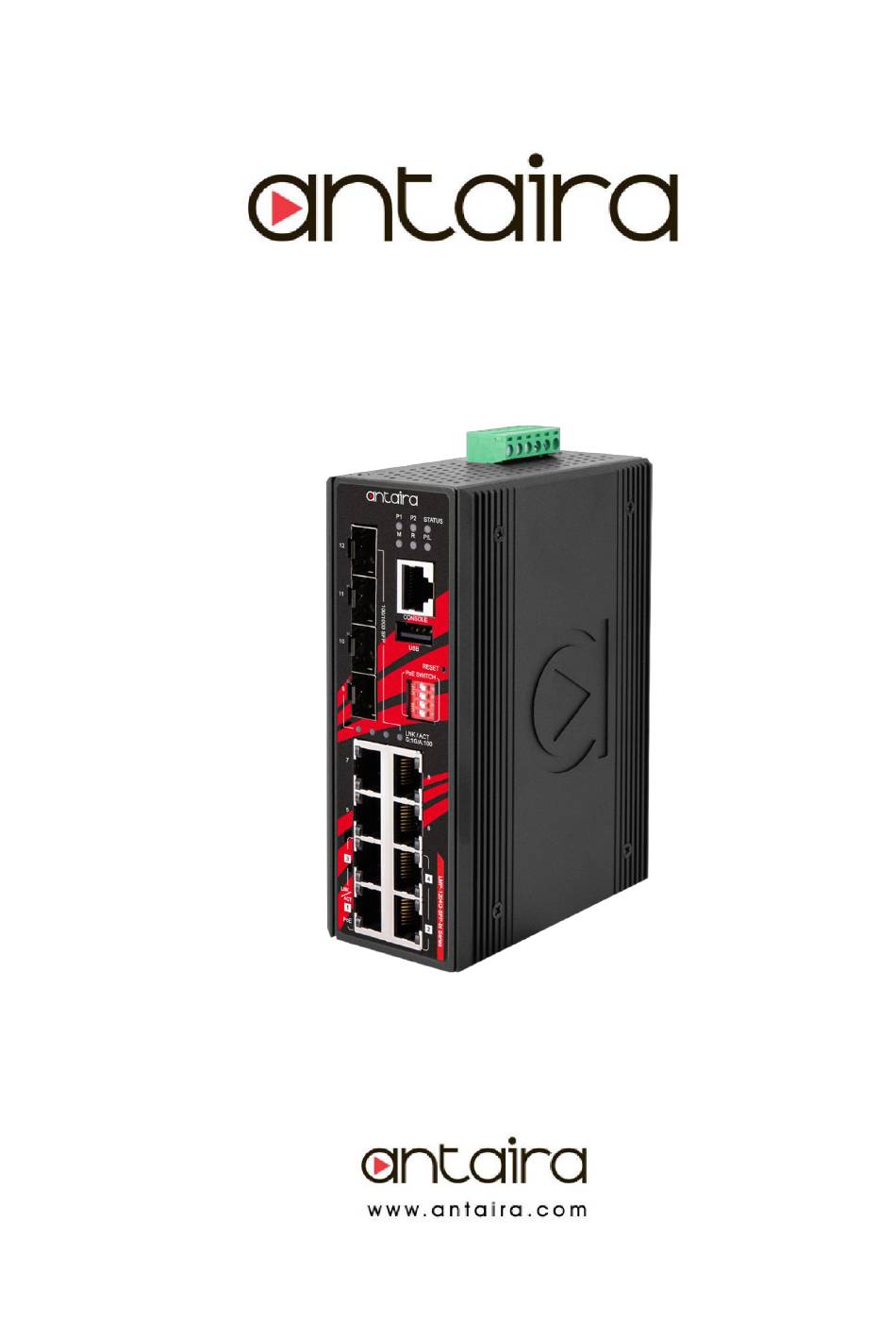

  • Page 1 LMP-1204G-SFP-bt Series 12-Port Industrial Gigabit IEEE 802.3bt PoE++ Light Layer 3 Managed Ethernet Switch, w/4*10/100/1000Tx (90W/Port), 4*10/100/1000Tx (30W/Port), and 4*100/1000 SFP Slots Hardware Manual Version 1.0 (August 2020)
  • Page 2 LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
  • Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 CE Mark Warning This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 5: Table Of Contents

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 Table of Contents 1. Introduction ................1 1.1 Product Overview ................1 1.2 Product Software Features ............... 1 1.3 Product Hardware Features ............. 2 1.4 Package Contents ................2 1.5 Safety Precaution ................
  • Page 6: Introduction

    RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-1204G-SFP-bt series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 65°C) or an extended temperature range (EOT: -40°C to 75°C).
  • Page 7: Product Hardware Features

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 • IGMP snooping v1/v2/v3, IGMP filtering / throttling, IGMP query up to 1024 group • Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP, HTTPS, SSH/SSL, TFTP •...
  • Page 8: Safety Precaution

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 ➢ DC cable – 18 AWG & DC jack 5.5 x 2.1mm ➢ RJ45 to DB9 serial console cable 1.5 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input.
  • Page 9: Hardware Description

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1204G-SFP-bt series: (W x D x H) is 54mm x 99mm x 142mm Figure 2.1 LMP-1204G-SFP-bt Series Physical Dimensions...
  • Page 10: Front Panel

    The Front Panel of LMP-1204G-SFP-bt Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMP-1204G-SFP-bt series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (48~55VDC). 6-Pin Removal Terminal Block Grounding Screw Figure2.3...
  • Page 11: Led Indicators

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 2.4 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1.
  • Page 12: Poe Port Led Indicators

    Flashing Networking is active Not connected to network Table 2.1 - LED Indicators for LMP-1204G-SFP-bt Series Note: "P1" is the abbreviation for "Power 1", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". 2.5 PoE Port LED Indicators The LED light indicators on the PoE copper port can help the user know if an event once occurs or is happening.
  • Page 13 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 • PoE Port Over Current Event (PoE Port Overload Event) When the current limit of the specific PoE port is exceeded, the PoE power will be shutdown. The PoE LED of the port will act cyclically as below until the port is recovered from the event: **AF/AT: Amber;...
  • Page 14: Dip Switch

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 **AF/AT: Amber; BT: Green [Notice] 1. The system will automatically retry to recover from the event failure every 20 seconds. 2. To clear the warning PoE Indicator of the recovered port, please re-plug the port cable or re-open the PoE function of the port via DIP Switch (>=2sec).
  • Page 15: Ethernet Ports

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 Seconds Function Fault LED 0s < t (press time) < 4s Reboot the switch LED is flashing with green color 4s < t (press time) < 8s Restore factory default...
  • Page 16: Cabling

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 2.10 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length.
  • Page 17 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Figure 2.7. Figure 2.7 Power Terminal Block • Only use copper conductors, 125°C, tighten to 5 lbs.
  • Page 18: Wiring The Fault Alarm Contact

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 2.12 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normal open circuit.
  • Page 19: Mounting Installation

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on...
  • Page 20: Wall Mounting

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall Attention: “Wall”...
  • Page 21: Hardware Installation

    LMP-1204G-SFP-bt Series Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-1204G-SFP-bt series: Caution: This device is intended for use indoor. Attention: Cet appareil est destiné à être utilisé à l'intérieur. Caution: The device is intended to be installed in an industrial control enclosure and panel.
  • Page 22: Maintenance And Service

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 4.2 Maintenance and Service • If the device requires servicing of any kind, the user is required to disconnect and remove it from its mounting. The initial installation should be done in a way that makes this as convenient as possible.
  • Page 23: Technical Specifications

    Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP-bt Series Hardware Manual V1.0 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-1204G-SFP-bt series: Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping v1/v2/v3, MLD snooping...
  • Page 24 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
