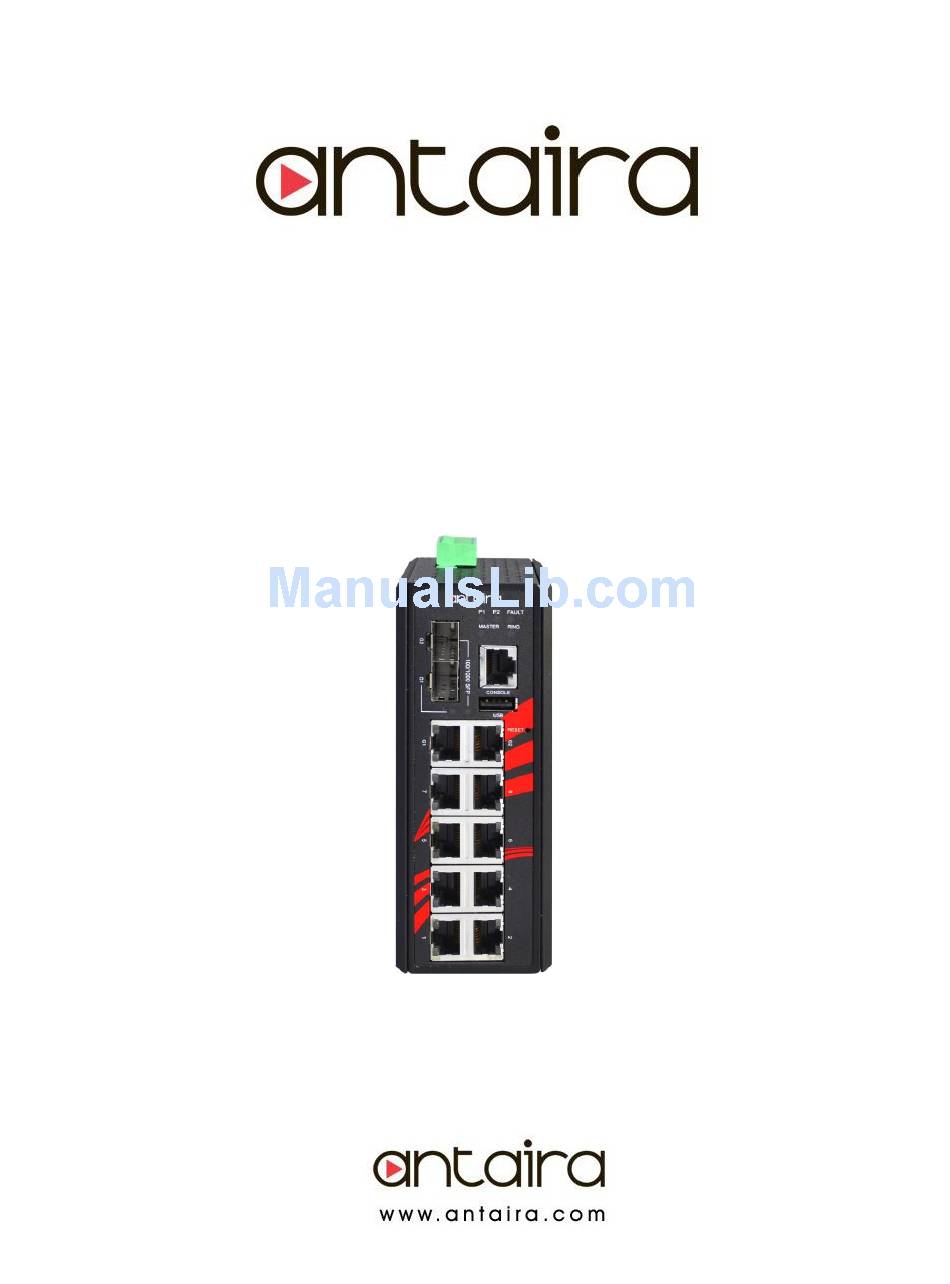

- Page 1 Antaira Industrial Ethernet Switches LMX-1002C-SFPeries User Manual V1.0 LMX-1002C-SFP Series 10-Port Industrial Gigabit Managed Ethernet Switches With 8*10/100Tx + 2*Gigabit Combo Ports (2*10/100/1000Tx and 2*100/1000 SFP Slots) Hardware Manual Version 1.1...
-
Page 2: Trademark Information
Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance. -
Page 3: Fcc Warning
Industrial Grade Gigabit Managed Ethernet Switches Hardware Manual Version 1.1 (January 2018) This manual supports the following models: LMX-1002C-SFP LMX-1002C-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com). - Page 4 Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.1 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions...
-
Page 5: Introduction
SCADA systems or control networks. The LMX-1002C-SFP series is compact, IP30 rated, and DIN-rail or wall mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.1 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.1 1.4 Package Contents 1– LMX-1002C-SFP series: 10-port industrial gigabit managed Ethernet switch, with 8*10/100Tx and 2*Gigabit Combo Ports (with 2*10/100/1000Tx and 2*100/1000 SFP Slots) 1-Product CD ... -
Page 8: Hardware Description
LMX-1002C-SFP Series Hardware Manual V1.1 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1002C-SFP series: 10-port industrial gigabit managed Ethernet switches with 8*10/100Tx and 2*Gigabit combo ports (with 2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). -
Page 9: Front Panel

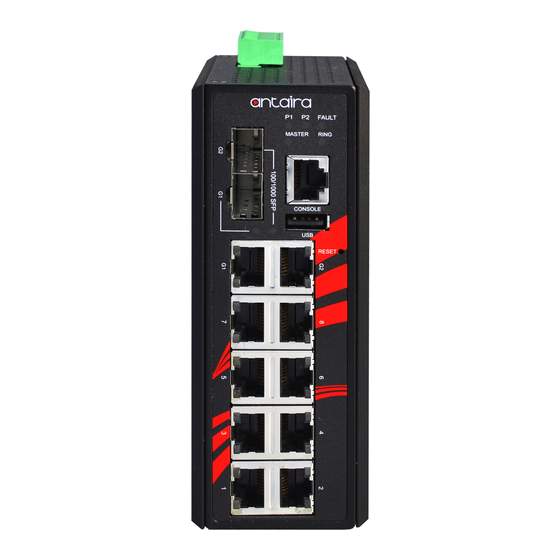

Figure 2.2. Figure2.2 The Front Panel of LMX-1002C-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMX-1002C-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs 12~48VDC. Figure2.3... -
Page 10: Led Indicators
Networking is active Combo G1 ~G2 Not connected to network (Lower LED) Table 2.1 - LED Indicators for LMX-1002C-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.0 2.5 Reset Button There is a Reset button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
(switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. 2.7.1 Gigabit Combo Port - Copper/SFP (Mini-GBIC) Antaira Technologies’ LMX-1002C-SFP series has two auto-detected Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots for fiber connection) shown in Figure 2.6. - Page 13 Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.0 **Note: The Gigabit combo ports (SFP/Copper) cannot be working at the same time. The SFP port has a higher priority than the copper port. When inserting a 100M or 1000M SFP transceiver (which has connected to the remote device via fiber cable) into the SFP port, the connection of the accompanying copper port link will be down.
- Page 14 Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.0 To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.10.
-
Page 15: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.0 2.8 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12. -
Page 16: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.0 The wire gauge for the terminal block should range between 12 ~ 24AWG If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to eliminate power fault alarm. - Page 17 Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.0 Rail on to the track as shown below in Figure 3.2. 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3. 5. Check if the bracket is mounted tightly on the rail.
-
Page 18: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-1002C-SFP Series Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 19: Hardware Installation
LMX-1002C-SFP Series Hardware Manual V1.0 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-1002C-SFP series: 10-port industrial gigabit managed Ethernet switches with 8*10/100Tx and 2*Gigabit combo ports (with 2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots for fiber). -
Page 20: Technical Specifications
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-1002C-SFP series: 10-port industrial gigabit managed Ethernet switches with 8*10/100Tx and 2*Gigabit combo ports (w/2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots for fiber). - Page 21 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
