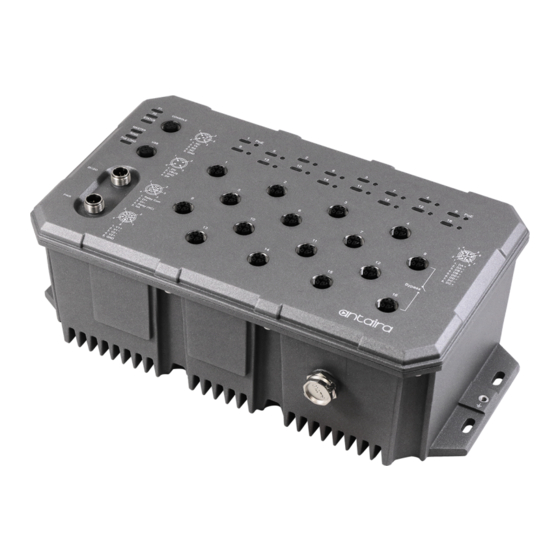

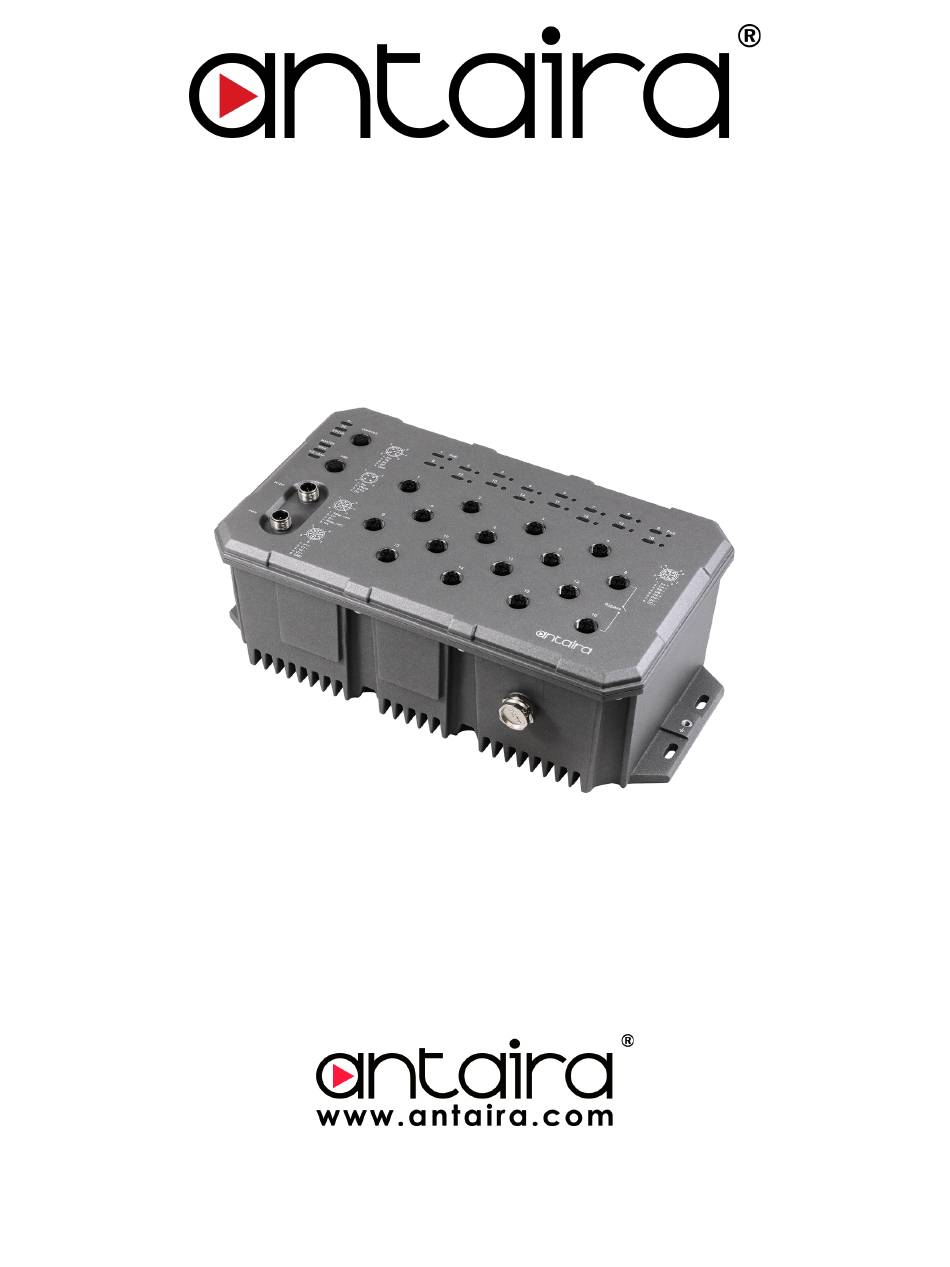

- Page 1 LMP-1600G-M12-67-24 Series 16-Port Industrial M12 IP67 Waterproof Gigabit PoE+ Light Layer 3 Managed Ethernet Switch, with 16*10/100/1000Tx M12 Connectors (X-Coded) (30W/Port), 24~55VDC Power Input Hardware Manual Version 1.0.1 (August 2022)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Product Software Features 1.3 Package Contents 1.4 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 LED Indicators... -
Page 6: Overview
For power saving purposes, assuring PD priority, and enhancing the security level of the network, LMP-1600G-M12-67-24 Series also supports PoE scheduling and PoE output limit function to set up PoE output duration and watt at will. -
Page 7: Product Software Features
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 Wall-mount design Installation in a Pollution Degree 2 industrial environment 1.2 Product Software Features Network Redundancy STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for network redundancy... -
Page 8: Safety Precaution
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 1.4 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this hardware manual. -
Page 9: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 166.2mm x 295mm x 101.3mm... -
Page 10: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel... -
Page 11: Led Indicators
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 2.3 LED Indicators There are LED light indicators located on the front panel of the industrial Ethernet switch that display the power status and network status. Each LED indicator has a different color and has its specific meaning, see below in Table 2.1. -
Page 12: Reset To Default
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 Supplying power to the powered-device Amber Not connected to a powered device Table 2.1 - LED Indicators Note: “P1” is the abbreviation for “Power 1”, “P2” is for “Power 2”, “LNK” is for “Link”, and “ACT” is for “Activity”. -
Page 13: Usb Port
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 Table 2.2 - Ethernet port pinouts Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. ● Connection of Cables Use the twisted-pair cable, category 5e or the above cabling for M12 port connections. -
Page 14: Console Port
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 2.7 Console Port It is an M12 5-Pin A-Coded female connector ● Baud rate 115, 200bps, 8, N, 1 ● M12 connector ● M12 5-Pin A-Coded female connector... -
Page 15: Relay Contact And Digital Input
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 2.9 Relay Contact and Digital Input The Ethernet switch is equipped with an M12 5-Pin A-Coded Male connector with a normally closed relay contact for fault alarm and digital input (DI). The pin assignment of this connector is shown in Table 2.6. - Page 16 Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 A connection of relay contact for fault alarm is shown below in Figure 2.5. Figure 2.5: Wiring the relay contact for fault alarm When the Ethernet switch is operating normally, the relay contact is a closed circuit. When the switch has any fault status (PoE overload or power failure), the relay contact circuit is opened and the FAULT LED lights up.
-
Page 17: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 2.10 Grounding Note Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown below in Figure 2.6. -
Page 18: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 3 Mounting Installation 3.1 Wall Mounting Follow the steps below to mount the industrial Ethernet switch to a wall using the screw holes as shown below in Figure 3.1. - Page 19 Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 Figure 3.2 - Position of the screw holes...
-
Page 20: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 21: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 22: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology Port/MAC/Protocol/IP Subnet-based VLAN, GARP/GVRP, Loop Guard, Link Aggregation static/LACP, BPDU guard, Error disable recovery, IGMP snooping L2 Switching v2/v3, MLD snooping v1/v2, IGMP filtering, IPMC throttling / filtering leave... - Page 23 Antaira Technologies - Industrial Ethernet Switches LMP-1600G-M12-67-24 Series - Hardware Manual - v1.0.1 connection RS232 Serial Console 1*RS232 with M12 5-pin A-coded female connector 1*USB 2.0 with M12 4-pin A-coded female connector for configuration Configuration Backup backup/restore 1* Digital Input (DI): State 0: -30~8VDC / State 1: 10~30VDC, Max. input...
- Page 24 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
