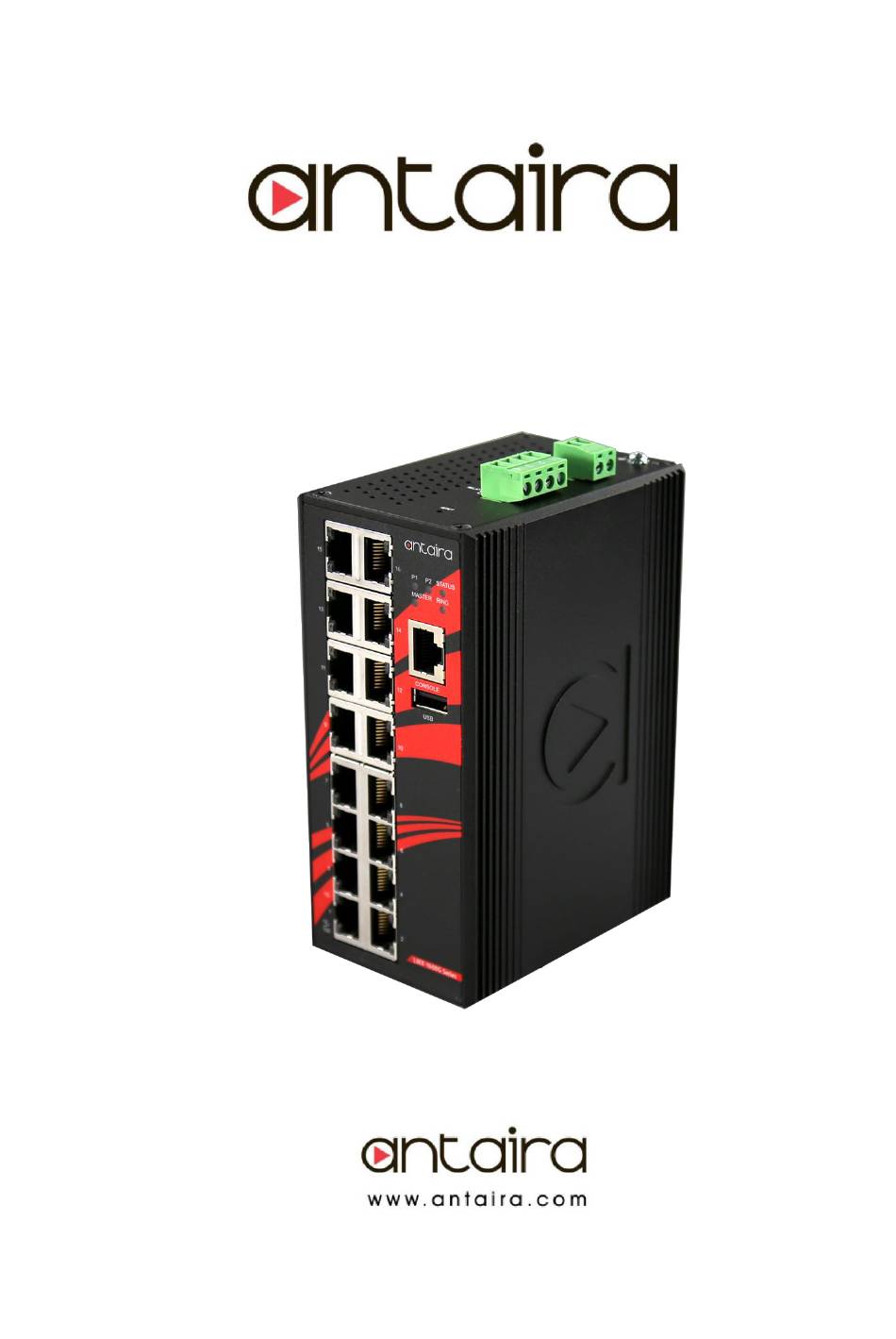

- Page 1 Antaira Technologies - Industrial Ethernet Switches LMP-1204G-SFP Series User Manual V2.1 LMX-1600G Series 16-Port Industrial Gigabit Managed Ethernet Switch, with 16*10/100/1000Tx Ports; 12~48VDC Power Input Hardware Manual Version 1.0 (July 2019)
-
Page 2: Trademark Information
LLC. may make improvements and/or changes to the product and/or specifications of the product described in this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual. -
Page 3: Fcc Warning
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 FCC Warning This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 Table of Contents 1. Introduction ..............1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ..........4 2.1 Physical Dimensions... -
Page 5: Introduction
RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-1600G series is IP30 rated and DIN-rail mountable. There are also two wide operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an extended temperature range (EOT: -40°C to 75°C). -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 ➢ IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group ➢ Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ➢... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 1.4 Package Contents 1 – LMX-1600G(-T) 1 – Quick Installation Guide 1 – Wall mounting bracket set with screws 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm 1 –... -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-1600G series: (W x D x H) is 67mm x 99mm x 142mm Figure 2.1 LMX-1600G Series Physical Dimensions... -
Page 9: Front Panel
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 2.2 Front Panel The front panel of the LMX-1600G series industrial gigabit managed Ethernet switch is shown below in Figure 2.2. 4-Pin Removal Terminal Block (Relay and Power 2 Input) -
Page 10: Led Indicators
Flashing Networking is active (Right LED) Not connected to network Table 2.1 - LED Indicators for LMX-1600G Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 2.5 Reset Button There is a ‘Reset’ button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 Pin MDI-X Signal Name MDI Signal Name Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Transmit Data plus (TD+) Receive Data plus (RD+) -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 Note: Only use copper conductors, 60/75°C, tighten to 5lbs. • The wire gauge for the terminal block should range between 18~20 AWG. • The wire gauge for the terminal block should range between 12 ~ 24AWG Caution: 2.10 Grounding Note... -
Page 14: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on... -
Page 15: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMX-1600G Series Hardware Manual V1.0 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 16: Hardware Installation
4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMX-1600G series: Caution: This device is intended for use indoor and at altitudes up to 2000 meters. Caution: The device is intended to be installed in an industrial control enclosure and panel. -
Page 17: Maintenance And Service
Do not under any circumstance open the device for any reason. Please contact your dealer for any repair needed or follow the instructions within the manual. • Clean the device with dry soft cloth. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMX-1600G series: IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab... - Page 18 5 to 95%, (non-condensing) FCC Class A EN61000-4-2,3,4,5,6,8 Regulatory EN61000-6-2,4 IEC60068-2-32 (Free Fall) Approvals Stability Testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) Green RoHS Compliant Certifications FCC, CE, UL 61010-1 (Pending), UL 61010-2-201 (Pending) Warranty 5 Years Table 5.1 - LMX-1600G Series Technical Specifications...
- Page 19 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
