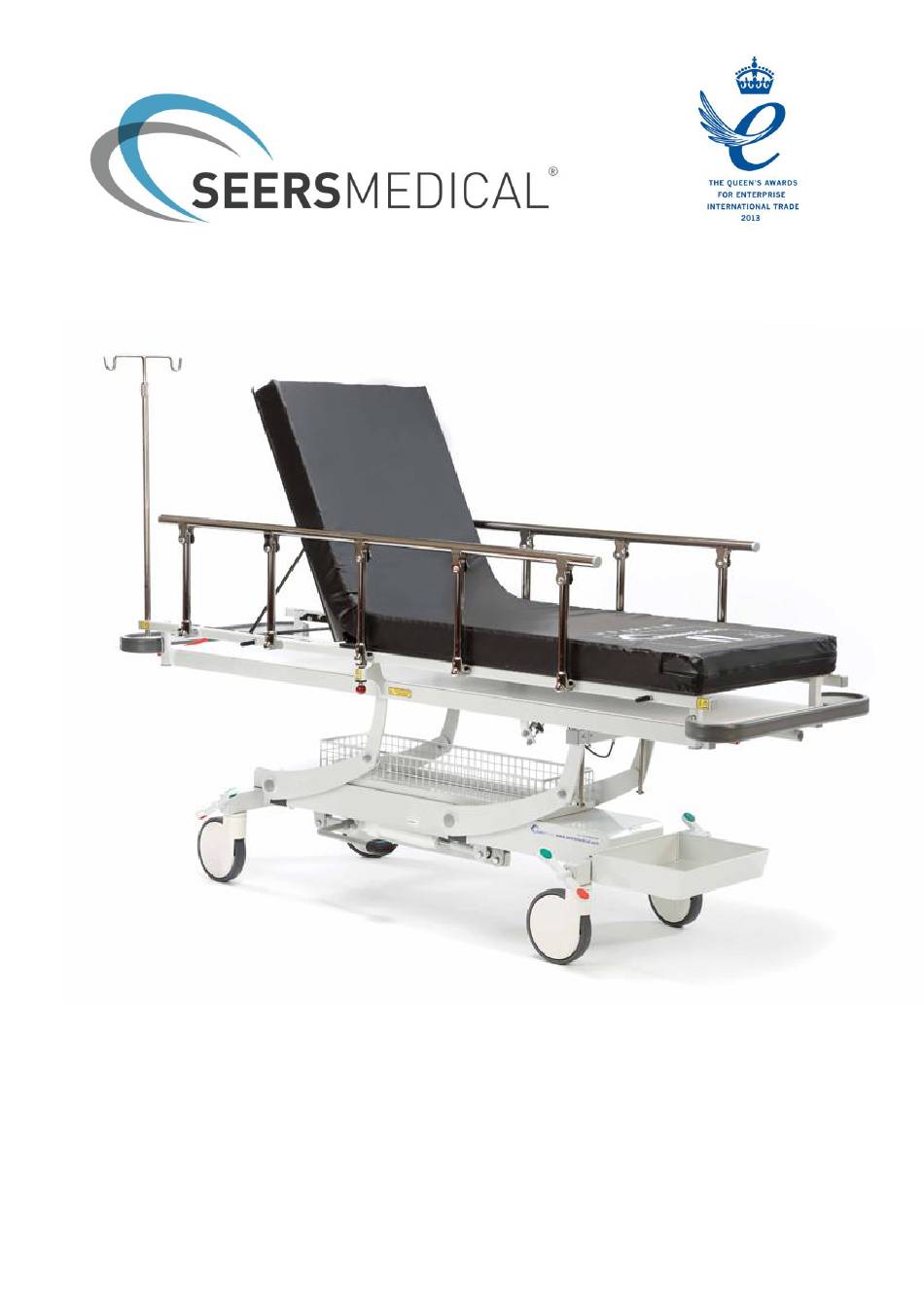

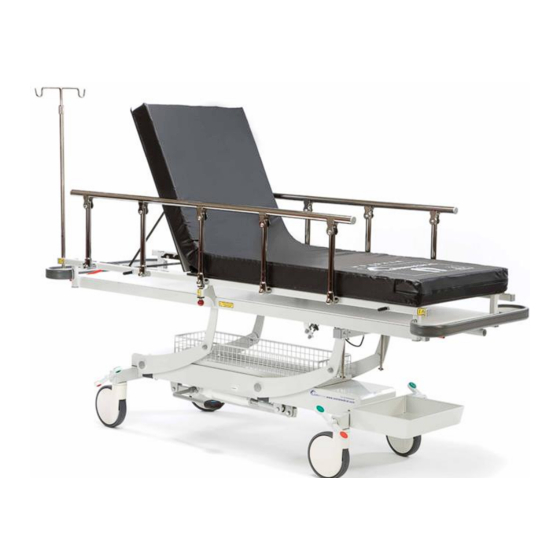

- Page 1 ORLANDO PATIENT TRANSPORT TROLLEY OPERATING INSTRUCTIONS Models PTX4200 DOC No. 03-031-UM-UK ISSUE 1...
- Page 2 This User Manual applies to the following Patient Trolleys in the SEERS Medical Orlando Patient Trolley Range. Orlando Patient Transport Trolley with full X-Ray facility PTX4200 93/42/EEC 03-031-UM-UK ISSUE 1...
- Page 3 INDEX 1. GENERAL INFORMATION – WARNINGS & CAUTIONS 2. HOW TO USE – a. Parts Identification b. Wheel system c. Height adjustment of the Trolley d. Altering the backrest angle e. Using the Trendelenburg Tilt function f. Using the side support rails safely g.
-
Page 4: General Information
1. GENERAL INFORMATION. CONGRATULATIONS on the purchase of your SEERS MEDICAL Orlando Patient Trolley. If these operating instructions are adhered too, this product will provide many years of safe use. IF THESE OPERATING INSTRUCTIONS ARE NOT FOLLOWED - YOUR WARRANTY COULD BE INVALID! Always keep these Operating Instructions available for reference. -
Page 5: Wheel System
2. HOW TO USE. PARTS IDENTIFICATION A – Side Rail I - Side Rail Activation & Locking Knob B – Push Handle & Buffer J – IV Pole Socket (x4) C – Base cover and cylinder holder K – Trendelenburg tilt lever – foot end D –... - Page 6 Wheel system WARNING! CASTORS MUST BE LOCKED PRIOR TO TREATMENT OF A PATIENT ON THE TROLLEY Castors Locked Directional Wheels activated Castors un-locked The Patient trolley is fitted with high quality large diameter (200mm – 8”) castors, allowing for easy transportation of the trolley.
- Page 7 c. Height and Tilt Adjustment of the Trolley WARNING! Ensure the pedal is not stood on with load bearing weight when mounting or dismounting the trolley. They are not to be used as a step. Abuse of the pedal could cause mechanical damage to the trolley lifting mechanism Height adjustment is controlled by the foot pedal (A) on the side of the patient trolley.
- Page 8 d. Altering the backrest angle WARNING! Ensure Patient is secure and not surprised by sudden backrest adjustment. Ensure patient entrapment will not occur when operating the backrest If the patient is on the trolley when adjusting the backrest, ensure the patients weight is not leaning on the backrest when adjusting.
- Page 9 e. Using the Trendelenburg Tilt function WARNING! Ensure the Patient is secure and not surprised by tilt adjustment. Ensure patient entrapment will not occur when using the tilt facility When adjusting the tilt angle of the patient, the carer will need to support the patient’s weight when counterbalanced on the trolley.
- Page 10 f. Using the Side Support Rails safely WARNING! Side rails on patient trolleys pose a potential entrapment hazard. Always use side rails on the patient trolley with caution. Ensure the Side Support Rails are Fully Engaged and locked into position prior to use. Do not push or pull the trolley by the Side Support Rails To Raise the side support rail, simply lift the side To Lower, grasp the side rail in the middle at the top...
- Page 11 h. Securing the Oxygen Cylinder WARNING! Ensure the Oxygen Cylinder is retained by the securing straps provided Failure to do so, could result in the cylinder rolling off of the trolley. Only Oxygen Cylinders Size D, E or F can be used. The regulator of the Oxygen bottle must be towards the Backrest End of the Trolley Oxygen Cylinder Bottle Securing straps i.
- Page 12 j. X-Ray facility CAUTION! Ensure X-Ray cassettes is removed prior to transporting trolley 1. The x-ray facility has been designed to allow the cassette to be inserted from both sides or either end of the trolley k. Storage for belongings CAUTION! Ensure belongings are stored within the basket to not cause entrapment when the trolley is operated.
- Page 13 CLEANING & DECONTAMINATION INSTRUCTIONS WARNING! DO NOT SATURATE PRODUCT IF PRODUCT GETS SATURATED DURING CLEANING, THIS COULD ACCELERATE CORROSION, REDUCING PRODUCTS LENGTH OF SERVICE. Frequency of routine Patient Trolley Cleaning & Decontamination should be in accordance with local Infection Control Protocols General Cleaning 1.
-
Page 14: Maintenance
MAINTENANCE CAUTION! Ensure the Trolley is in a suitable area for maintenance. Secure the Patient Trolley by locking the castors prior to carrying out maintenance A visual inspection should be carried out daily prior to use. Regular servicing should be carried out a minimum of every 12 months or more frequently if the couch is in constant use. -
Page 15: Warranty
For any further information on this product, regarding spares, warranty, service or maintenance information, please contact your product supplier. As part of our ongoing development programme SEERS MEDICAL Limited reserves the right to modify specifications and materials of this couch without prior notice. -
Page 16: Technical Data
Medical Device Directive 93/42/EEC Kenton Road, Debeham, Suffolk, IP14 6LA, UNITED KINGDOM t: +44 (0)1728 861590 f: +44 (0)1728 861868 e: info@seersmedical.com w: www.seersmedical.com © SEERS MEDICAL Limited 2015 03-031-UM-UK ISSUE 1...
