ASSEMBLY INSTRUCTIONS
Quadro Loop leg 4 person
Corner workstation
Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm

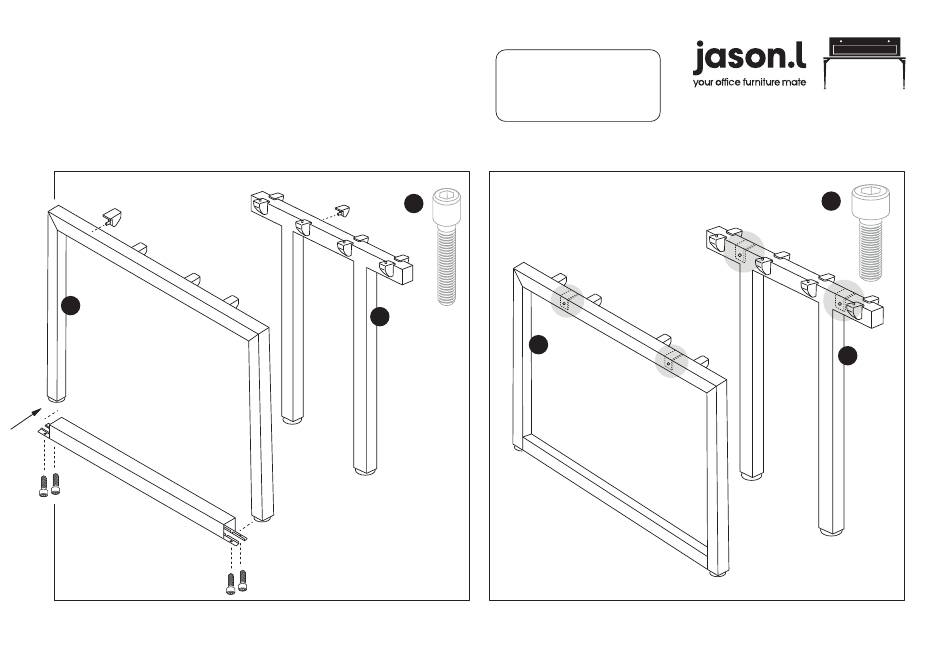

STEP 01
C
Using Allen Key provided, attach 4 plastic brackets (H) per leg (C)
(as per picture above) using M6x20MM (L) Socket head screw. Do
the same with Connector frame (E). Connect Loop Legs to Bottom
of Quadro Legs (C) by using 4 bolts per leg.
www.jasonl.com.au
Need help!
Call us on
1300 527 665
STEP 02
L
E
C
Using Allen Key provided, attach M8x20MM Socket head (K)-
screw socket half way into leg for both legs (C) and into
Connector frame (E).
K
E
