Jason.L Quadro Loop Leg Assembly Instructions Manual page 13

ASSEMBLY INSTRUCTIONS
Quadro Loop leg 4 person
Corner workstation
Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm
STEP 09

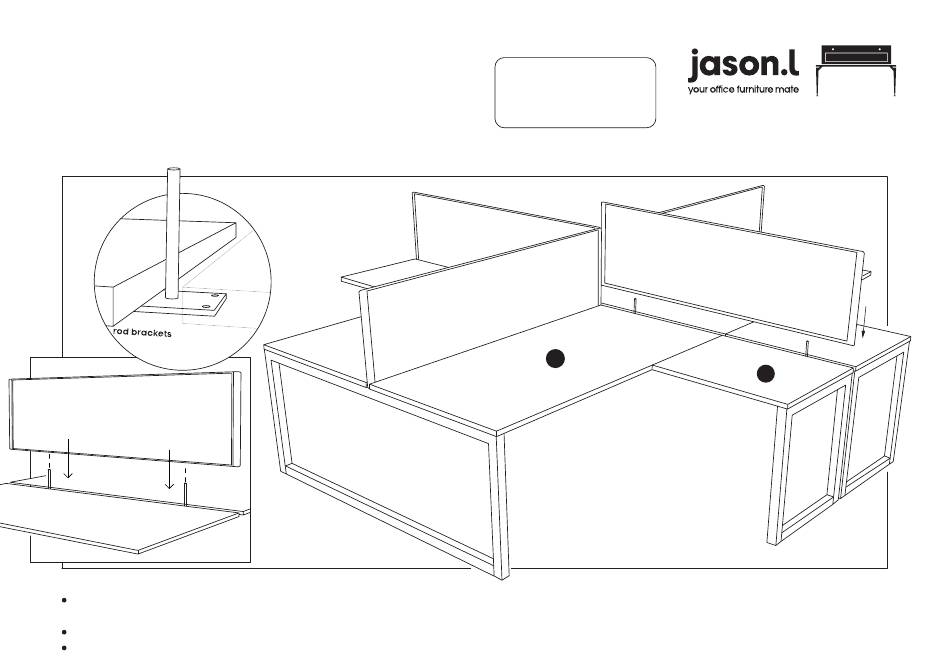

Desk based screen divider assembly instruction:
Please position the screen so that it sits at the same level as the bottom surface of the desktop. Please adjust the screen
position to make sure the screen end meet with the the desk end and please hold the screen.
Second person to insert single desk mounted rod brackets. The brackets rod goes inside the pre-drilled screens holes.
The screen holes are located around 300mm from the screen end each. First person to hold screen stand still.
www.jasonl.com.au
Need help!
Call us on
1300 527 665
A
B
Page 13 of 15
