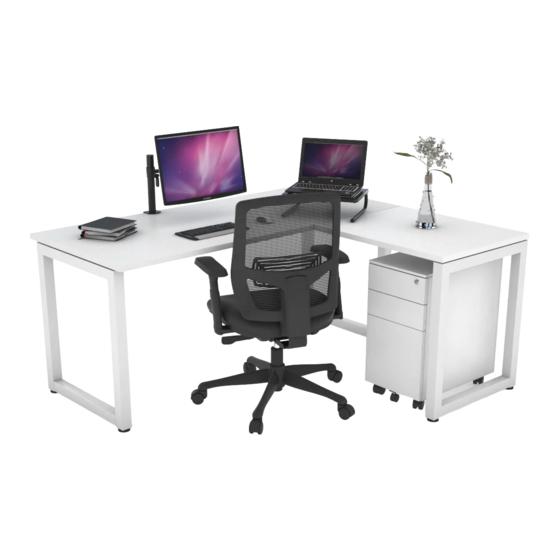

- Page 1 ASSEMBLY INSTRUCTIONS Quadro Loop L-Shaped Desk Sizes: 1400x700 1600x700 Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation www.jasonl.com.au Need help! 1 of 8 1300 527 665 Call us on...
- Page 2 ASSEMBLY INSTRUCTIONS Quadro Loop L-Shaped Desk COMPONENTS Table top x1 Table top Return x1 Legs Quadro x2 Legs Quadro Loop x3 Legs Quadro Return x1 Beam x1 Beam Return x1 Plastic bracket x6 Joiner plates x2 SCREWS M8x20MM CSK x3 M8x20MM Socket head x4 M6x20MM Socket head x6 M6x30MM Socket head x8...
-
Page 3: Need Help
ASSEMBLY INSTRUCTIONS Quadro Loop L-Shaped Desk STEP 01 STEP 02 Using Allen Key provided, attach 2 plastic brackets (H) per legs (C & E) Using Allen Key provided, attach M8x20MM Socket head (K)- (as per picture above) using M6x20MM (L) Socket head screw. Connect screw socket half way into leg for three legs (C &... - Page 4 ASSEMBLY INSTRUCTIONS Quadro Loop L-Shaped Desk STEP 03 Adjust extendable beam (F) to desired length using markers and secure beam at that length using screws provided 2000 1900 1800 1700 1600 1500 1400 1300 1200 www.jasonl.com.au Need help! 4 of 8 1300 527 665 Call us on...
-
Page 5: Top View
ASSEMBLY INSTRUCTIONS Quadro Loop L-Shaped Desk STEP 04 TOP VIEW STEP 05 Attach beam (F) to legs (C) using nut insert in legs. Frame looks like this. Using Allen Key, attach beam (F) with Socket (J) See point attached www.jasonl.com.au Need help! 5 of 8 1300 527 665... - Page 6 ASSEMBLY INSTRUCTIONS Quadro Loop L-Shaped Desk STEP 06 Now attach the return beam (G) to return leg (E) using nut insert in legs. See point attached. Then, connect the hook of the return beam to the beam of the main structure. www.jasonl.com.au Need help! 6 of 8...
- Page 7 ASSEMBLY INSTRUCTIONS Quadro Loop L-Shaped Desk STEP 07 Attach connector (H) to Return Top (B) by drilling screws (M) www.jasonl.com.au Need help! 7 of 8 1300 527 665 Call us on...
-
Page 8: Bottom View
ASSEMBLY INSTRUCTIONS Quadro Loop L-Shaped Desk STEP 08 nut insert nut insert nut insert nut insert TABLE TOP Place table top (A) ontop of frame - with cutout at the back of the desk. Using nut inserts in the desk, use M6x30mm socket (M) BOTTOM VIEW and attach desktop to the frame.
