www.jasonl.com.au
ASSEMBLY INSTRUCTIONS
Quadro Loop leg 4 person
Need help!
Corner workstation
Call us on
1300 527 665
Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm

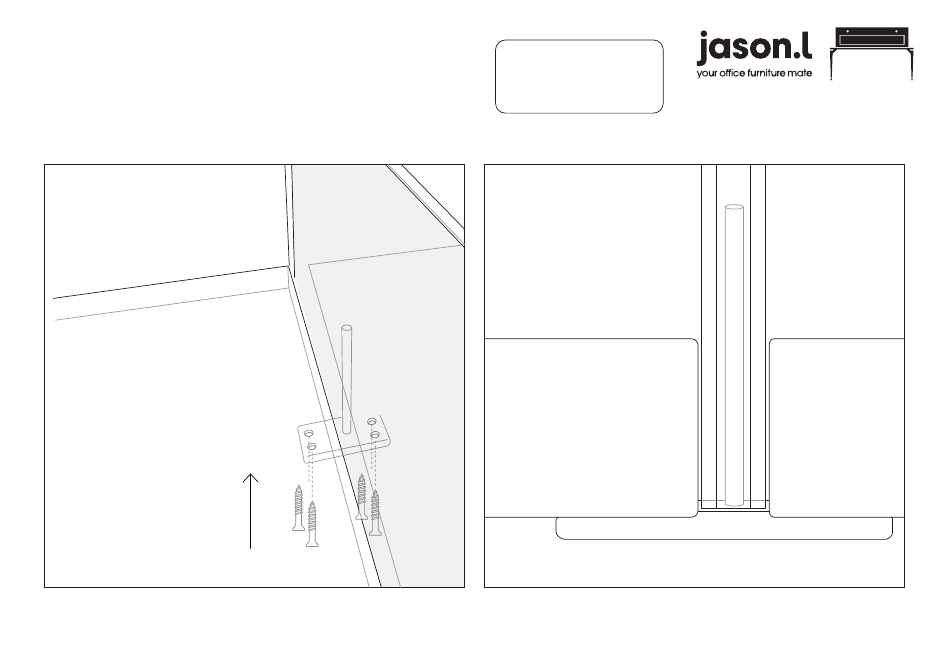

STEP 10
side view
Second person to drill 4 holes into the brackets holes with provided wood screws into the underneath desktop.
Please check the position of the rod brackets and bracket holes again before drilling the screws all the way
through. Please tighten all the wood screws.
Page 14 of 15
