Jason.L Quadro Loop Leg Assembly Instructions Manual page 11

ASSEMBLY INSTRUCTIONS
Quadro Loop leg 4 person
Corner workstation
Sizes: 1400Lx1800W , 1600Lx1800W , 1800Lx1800W mm
STEP 08
A

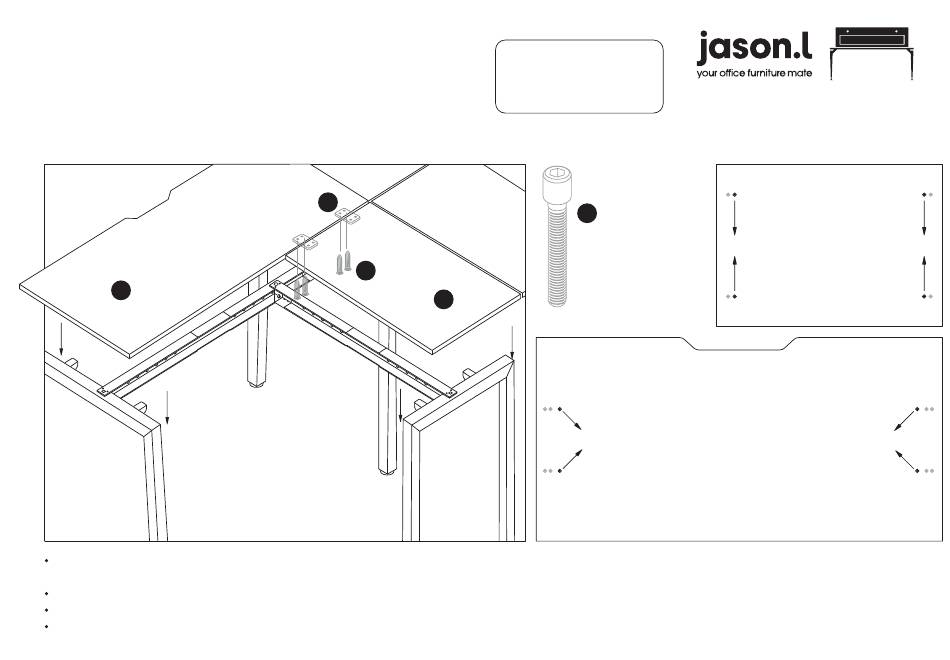

Place table tops (A) on top of frame - with cutout at the back of the desk. Please leave 25mm gap between 2 x table top (A) so we can
drop the return desk mounted screen in between the two tops.
Using nut inserts in the desk, use M6x30mm socket (M) and attach desktop to the frame.
Using nut inserts in the desktop, use M6x30mm socket (M) and attach return desktops (B) to the frame.
Once desktop are attached and secure to the frame, use woods screws (N) and secure joiner plates (I) to the underside of desktop A.
www.jasonl.com.au
I
N
B
Need help!
Call us on
1300 527 665
M
nut insert
nut insert nut insert
TABLE TOP
nut insert
BOTTOM VIEW
Page 11 of 15
