7. Loosen the locknuts on all 4 corners of the
deck and ensure that the mower deck is sitting
securely on all 4 blocks.
1. Chain
8. Remove any slack from the deck chains and
ensure that the deck-lift foot lever is pushed
back against the stop.
9. Tighten the 4 locknuts.
10. Ensure that the blocks fit snugly under the deck
skirt and that all attachment bolts are tight
11. Check the mower deck side-to-side level and
blade slope; repeat this procedure as necessary.
12. Raise the deck to the transport position (140 mm
or 5-1/2 inches).
13. Install any removed anti-scalp rollers.

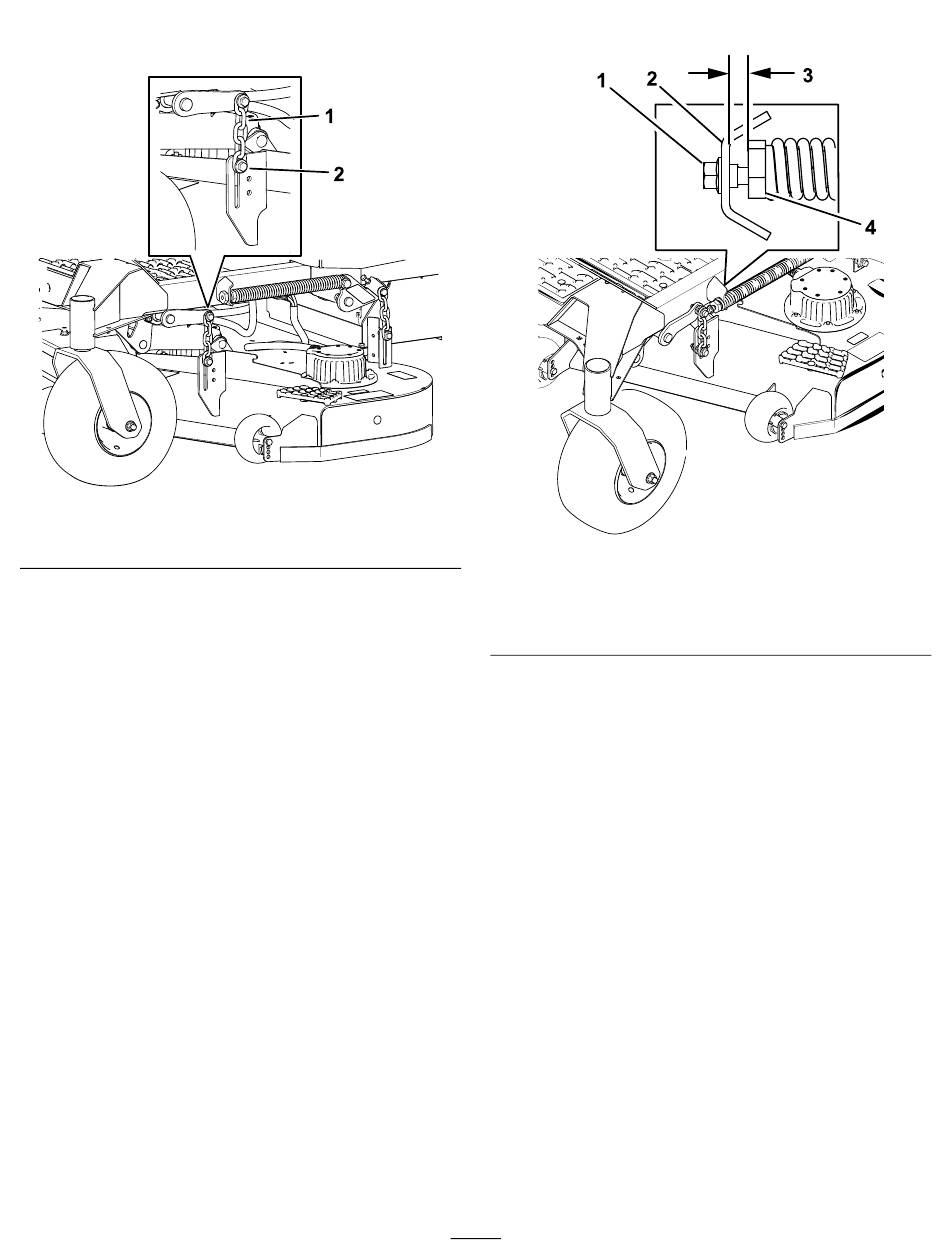

Figure 87
2. Bolt and locknut
14. Install the lift-assist spring adjusting screw
previously removed in step 3.
g402249
1. Adjusting screw
2. Bracket
15. Set the gap between the spring adjuster and the
bracket to 22 to 29 mm (7/8 to 1-1/8 inches).
50
Figure 88
3. Gap—22 to 29 mm (7/8 to
1-1/8 inches)
g402251
