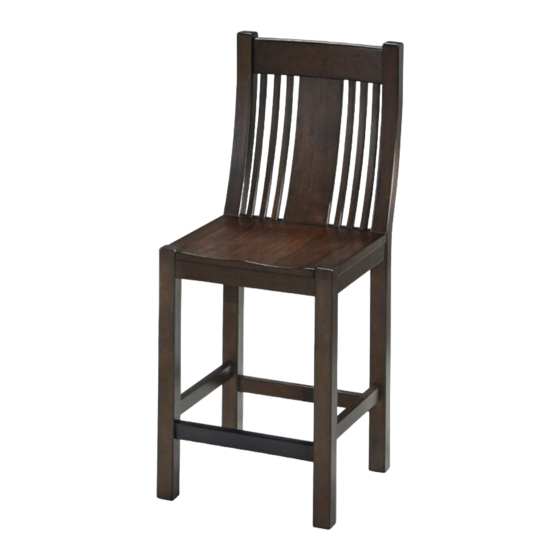

Bar Stool
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Seat
1 Pc.
B.
Leg
1 Pc.
Hardware List
Small Hex Wrench
1 Pc.
Hex Wrench
1 Pc.
Tools required for assembly : Phillips screwdriver
C.
Leg
1 Pc.
M6x38
Head Cap Bolt (short)
1 Pc. (+1 extra)
M6x70
Head Cap Bolt (long)
4 Pcs. (+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
D.
Stretcher
1 Pc.
E.
Stretcher
2 Pcs.
M6x51
Head Cap Bolt (middle)
4 Pcs. (+1 extra)
Flat Washer
9 Pcs. (+1 extra)
F.
Back Frame
1 Pc.
Spring Washer
9 Pcs. (+1 extra)
Wood Screw
6 Pcs. (+1 extra)
