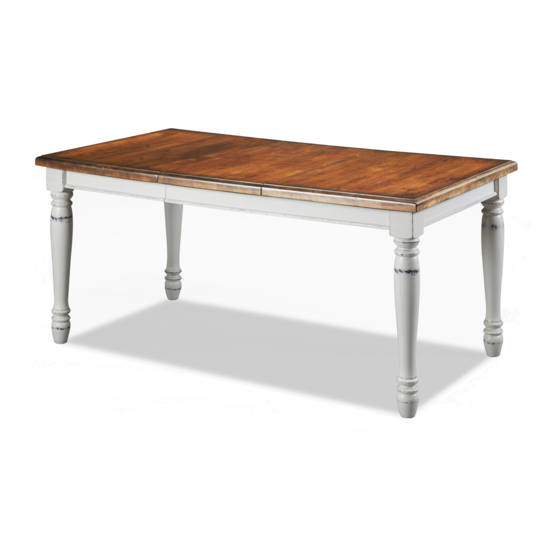

Monarch Dining Table
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 pc.
C.
Leaf
1 pc.
F.
Table Slide
2 pcs.
Hardware List
Hex Wrench
1 pc.
Small
Hex Wrench
1 pc.
Tools required for assembly :
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
Key Wrench
Spring Washer
1 pc.
8 pcs. (+1 extra )
Bolt
8 pcs. (+1 extra )
Phillips
screwdriver
servicedesk@homestyles-furniture.com
D.
Apron
2 pcs.
Spring Washer (Small)
12 pcs. (+1 extra )
Flat Washer
8 pcs. (+1 extra )
Wood Screw (short)
6 pcs. (+1 extra )
Flat Washer (Small)
12 pcs. (+1 extra )
B.
Top
1 pc.
E.
Leg
4 pcs.
Wood Screw
16 pcs. (+1 extra )
Head Cap Bolt
12 pcs. (+1 extra)
Advertisement
Related Manuals for Home Styles Monarch Dining Table 88 5020 31
Summary of Contents for Home Styles Monarch Dining Table 88 5020 31
- Page 1 Flat Washer (Small) Hex Wrench 12 pcs. (+1 extra) 8 pcs. (+1 extra ) 8 pcs. (+1 extra ) 12 pcs. (+1 extra ) 1 pc. Tools required for assembly : Phillips screwdriver Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
- Page 2 Assembly Instructions 2/3 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * You should keep Hex Wrench, Key Wrench in a safe place as you may need to tighten up the Bolts in the future. Head Cap Bolt Spring Washer(Small) Flat Washer(Small)
- Page 3 Assembly Instructions 3/3 Flat Washer Spring Washer STEP 3 Bolt Attach Legs (E) to the unit with Flat Washers, Spring Washers and Bolts. Wood Screw (short) Head Cap Bolt Spring Washer (Small) Flat Washer (Small) STEP 4 Attach Aprons (D) to Leaf (C) with Head Cap Bolts, Spring Washers (Small) Flat Washers (Small)
