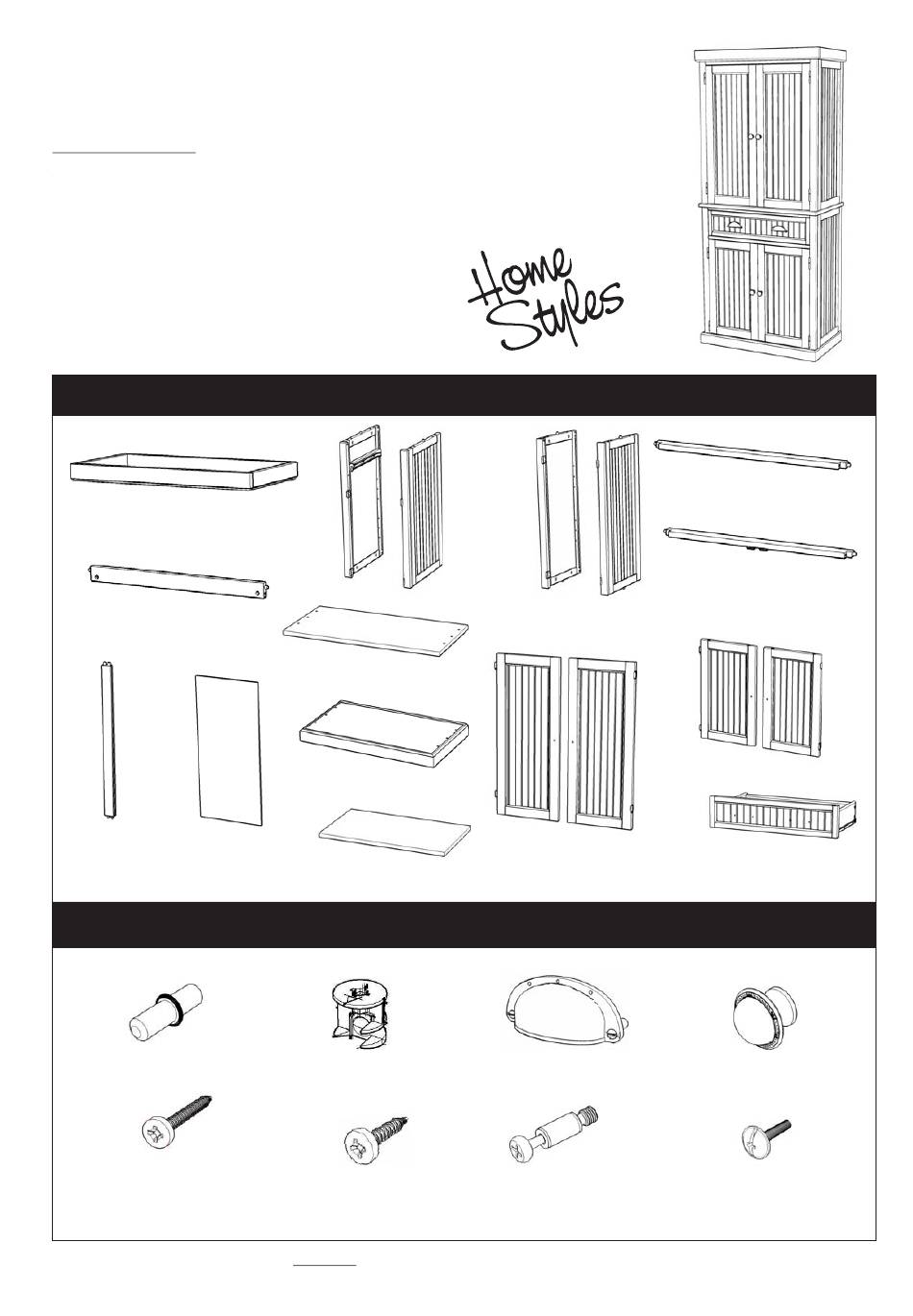

88 5022 69
Pantry
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
A.
Top
1 pc.
H.
Back Stretcher
4 pcs.
I.
J.
Back Stretcher
Back Panel
2 pcs.
4 pcs.

Hardware List

Adjustable Pin
16 pcs. (+1 extra)
M3.5x25
Wood Screw (long)
for Drawer Side Part
8 pcs. (+1 extra)
Tools required for assembly : Phillips screwdriver
Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319
C.
B.
Side Panel
Side Panel
1 pc.
1 pc.
K.
Top
1 pc.
L.
Base
1 pc.
M.
Shelf
4 pcs.
Cam Lock
30 pcs.(+1 extra)
M3.5x16
Wood Screw (short)
22 pcs. (+1 extra)
servicedesk@homestyles-furniture.com
D.
E.
Side Panel
Side Panel
1 pc.
1 pc.
P.
Door
1 pc.
R.
1 pc.
O.
N.
Door
Door
1 pc.
1 pc.
Pull Handle
2 pcs.
Cam Lock Screw
30 pcs.(+1 extra)
Tools recommended for assembly : Level
F.
Stretcher
1 pc.
G.
Stretcher
2 pcs.
Q.
Door
1 pc.
(Knock-Down Construction, please refer
to the last page of these instructions for
drawer assembly steps)
Pull Handle
4 pcs.
M4x25
Machine Screw
8 pcs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pantry 88 5022 69 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles Pantry 88 5022 69

  • Page 1 Machine Screw 30 pcs.(+1 extra) for Drawer Side Part 22 pcs. (+1 extra) 8 pcs. 8 pcs. (+1 extra) Tools required for assembly : Phillips screwdriver Tools recommended for assembly : Level Home Styles Consumer Assistance Line 888-680-7460 and 877-831-0319 servicedesk@homestyles-furniture.com...
  • Page 2 Assembly Instructions 2/6 IMPORTANT * Do not tighten up all the screws until each part is properly assembled. * Y ou should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * After assembly , item must be level to work properly.
  • Page 3 Assembly Instructions 3/6 STEP 2 Attach Stretcher (F), (G) and Back Stretcher (H) to Side Panel (B) using Cam Locks. Attach Back Stretcher (I) to Back Stretcher (H). Slide Back Panels (J) into place. Attach Back Stretcher (H) to unit using Cam Lock. Attach Side Panel (C) to unit using Cam Locks.
  • Page 4 Assembly Instructions 4/6 STEP 4 Attach Door (P) and (Q) to unit by sliding the door lift hinges into the Side Panel lift hinges. (see Figure 1) Attach Top (K) to unit using Cam Locks Cam Lock (Figure 1) Cam Lock STEP 5 Attach Stretcher (G) and Back Stretcher (H) to...
  • Page 5 Assembly Instructions 5/6 STEP 6 Attach unit from Step 5 to Top (K) using Cam Locks Attach Door (N) and (O) to unit by sliding the door lift hinges into the Side Panel lift hinges. Place Top (A) onto unit using Cam Locks. (Figure 3) (Figure 2) Adjustable Pin...
  • Page 6 Assembly Instructions 6/6 Drawer STEP 1 Attach R1 to R3 and R4, using Phillips screwdriver long wood screws (4X), (Figure 1) tighten halfway. Attach R2 to R3 and R4 using MAKE SURE ROLLER long wood screws (4X), IS ON THE BACK tighten halfway.
