Access Power Solutions

Installation and Operation Guide

(APS6-300/500 and APS12-300 Series)

Issue: IPN 997-00012-49G

Issue Date: May 2013

Refer to the separate SC200 or SC100 system controller handbook for full

details of the system controller operation -

dcpower.eaton.com/Manuals.asp

Eaton Corporation

Telecommunications Power Solutions

dcpower.eaton.com

DCinfo@eaton.com

Table of Contents

Need help?

Do you have a question about the APS12-300 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Eaton APS12-300 Series

Page 1 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Issue: IPN 997-00012-49G Issue Date: May 2013 Refer to the separate SC200 or SC100 system controller handbook for full details of the system controller operation - dcpower.eaton.com/Manuals.asp Eaton Corporation Telecommunications Power Solutions dcpower.eaton.com...
Page 2 The information contained in this literature is subject to change without notice. Subject to the right to use its equipment, Eaton Corporation does not convey any right, title or interest in its intellectual property, including, without limitation, its patents, copyrights and know-how.
Page 3: About This Guide
Scope This guide covers installation, operation and maintenance of Access Power Solutions (APS6-300/500 and APS12-300 Series) dc power systems (APS), controlled by the SC200 or SC100 system controller. Refer to the separate SC200 or SC100 system controller handbook for full details of the system controller operation - dcpower.eaton.com/Manuals.asp.
Page 5: Table Of Contents
Task 9 - Connect Additional Input/Output (if required - SC200 only) ......33 Task 10 - Connect to the AC Supply Point ................33 Installation Completed ......................34 Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 6 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Chapter 4 Start-Up Overview ..........................35 Start-Up Tasks ......................... 36 Task 1 - Inserting the Rectifiers ..................... 36 Task 2 - Pre-Power-Up Checklist ..................37 Task 3 - Applying AC Power ....................37 Task 4 - Configuring the DC Power System ................
Page 7 Analog Inputs ......................... 94 System Controls ........................96 System Alarms ........................99 Digital Inputs ........................102 Digital Outputs (Relays) ...................... 103 Commissioning Completed ....................103 Equipment Incident Report Worldwide Support Index Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 9: Overview
Chapter 1 General Description Gener al D escription Overview Topic Page Model Numbers Access Power Solutions DC Power Systems Rectifiers System Controller Input/Output Board Other Features Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 10: Model Numbers
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Model Numbers Model Number DC Output Power (max.) System Controller LVDs 24V nominal 48V nominal APS6-310 12.0kW SC100 APS6-311 8.6kW (Note 1) SC100 APS6-312 8.6kW (Note 1) SC100 APS6-320 12.0kW...

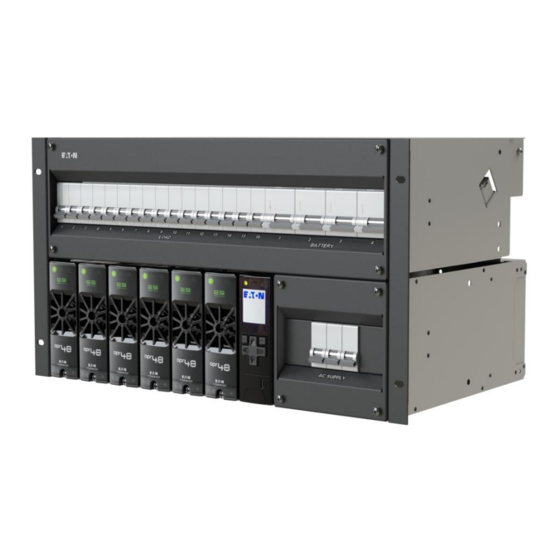

Page 11: Access Power Solutions Dc Power Systems
AC Miniature Circuit Breakers (MCBs) (if fitted) Up to 4 Battery Miniature Circuit Breakers (MCBs)  AC MCB cover  DC distribution cover  DC common bus battery terminals Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 12: Aps6 Models Rear View
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) APS6 Models Rear View   AC cable entry gland Optional (low priority) load disconnect Low Voltage Disconnect (LVD) (behind side panel) (see details on  AC earth conductor connection point (see connection...
Page 13: Aps12 Models Front View
Up to 4 Battery Miniature Circuit Breakers (MCBs)  AC MCB covers  DC distribution cover  AC Miniature Circuit Breakers (MCBs) (if fitted) for top rectifier shelf Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 14: Aps12 Models Rear View
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) APS12 Models Rear View   AC earth conductor connection point for top and Optional battery disconnect Low Voltage Disconnect bottom rectifier shelf (see connection details on page (LVD) (see details on page 12) ...
Page 15: Rectifiers
Minor Alarm LED (Yellow)  Major Alarm LED (Red)  Serial Number label  Retaining Screw. Tighten to 1.5Nm (13.3 inch-pounds).  See Troubleshooting on page for details of rectifier alarms. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 16: System Controller
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) System Controller The SC200 or SC100 system controller provides control, communications and alarm functions. The system controller is supplied pre-configured. Configuration changes can be made with the keypad, or via a PC connected to the USB connector (SC200) or RS232 (SC100) connector. Or changes can be made remotely (see External Communications on page 12).
Page 17: Sc100 System Controller
DCTools Configuration Software. Latest version is available free from  dcpower.eaton.com/downloads. PowerManagerII Remote Control and Monitoring Software. Contact your Eaton dc product  supplier for further information (see Worldwide Support on page 107). Recommended web browsers (SC200 only): Microsoft Internet Explorer 8 or later (IE6 is ...
Page 18: Input/Output Board
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Input/Output Board The input/output (I/O) board provides the I/O interfaces and connections for the SC200 or SC100 system controller. The I/O board includes a range of sense inputs for dc power system control and monitoring. It also allows real time data collection from building services and other external devices, and relay outputs for alarm signals or control of external devices.
Page 19: Connections
I/O and system controller power and RXP comms  Connection to dc common bus connections  For connector pin-outs see details on page 84. For input and output specifications see details on page 73. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 20: Other Features
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Other Features External communications Refer to the system controller handbook for information on these communications options. Communications options SC200 SC100  Communication with DCTools via USB   Communication with DCTools or PowerManagerII via RS232 ...
Page 21: Battery Mid-Point Monitoring Description (Sc200 Only)
The time remaining calculation will not be correct if a non-essential load is disconnected during the battery discharge. For details refer to Battery Time Remaining in the SC200 or SC100 System Controller Operation Handbook (see Related Information on page i). Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 23: Preparation
Chapter 2 Preparation Prepar ation Overview Topic Page Warnings Inspecting the Equipment and Reporting Damage Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 24: Warnings
Eaton Access Power Solutions dc power system.  Electrical Safety  Access Power Solutions (APS6-300/500 and APS12-300 Series) dc power systems must be mounted in an enclosed cabinet that meets safety and fire enclosure requirements as specified in AS/NZS 60950.1 and EN 60950-1. ...
Page 25  Batteries  The plastic cases of batteries installed in Eaton dc power system racks must have a flammability rating of UL 94-V2 or better.  Flooded cell and VRLA lead acid batteries can emit explosive gases and must be installed with adequate ventilation.
Page 26: Inspecting The Equipment And Reporting Damage
Servicing. Servicing must only be performed according to specific instructions and only by personnel authorized by Eaton. This includes disassembly and/or servicing of any modules.  For further information on Servicing contact your local Eaton dc product supplier, or refer to the contact details on page 107. ...
Page 27: Installation
Task 8 - Connect External Input/Output Cabling (if required) Task 9 - Connect Additional Input/Output (if required - SC200 only) Task 10 - Connect to the AC Supply Point Installation Completed Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 28: Installation Tasks
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Installation Tasks Before starting the installation, review the following information: Required Equipment and Tools on page  Warnings and Cautions on page  Inspecting the Equipment and Reporting Damage on page ...
Page 29 If necessary, install higher rated RCD(s).  The maximum earth leakage current of Access Power Rectifiers is given in the Specifications on page 73. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 30 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 4 - Check ac discrimination Each rectifier has two internal fast-acting fuses. Under certain internal fault conditions these fuses will blow. If there is insufficient discrimination between these fuses and any upstream ac supply-disconnect device then the upstream ac supply-disconnect device will operate before a rectifier fuse blows.
Page 31: Task 2 - Prepare Aps
If the polarity of the APS is not correct for the equipment to be powered then contact your Eaton dc product supplier for advice (see Worldwide Support on page 107). Step 3 - Check position of mounting brackets APSs are pre-assembled with 19-inch rack-mounting brackets as shown in the following diagram.
Page 32 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series)   Rack-mounting bracket (available for 19-inch Alternative bracket mounting positions and 23-inch wide racks) Step 4 - Install Load circuit breakers (if required) Ignore this Step if the load MCBs are already fitted.
Page 33 If the arrangement of the ac and dc earths is as required, no further action is required. If the arrangement of the ac and dc earths is not as required, follow the procedure in Earth Bonding on page 91. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 34: Task 3 - Connect The Ac Supply Cable(S)
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series)  Busbar chassis screw  Busbar  Busbar nut  DC common bar Procedure complete Task 3 - Connect the AC Supply Cable(s) Ignore this task if the APS has pre-fitted ac cord(s).
Page 35 If the ac supply is 1-phase or 2-phase (L1/L2) then loop together the three live (L) terminal blocks. Connect the phase conductor(s) and the neutral conductor (if fitted) to the terminal block.  Connect according to the labels fitted to the terminal blocks. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 36: Task 4 - Mount The Aps In The Rack
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 7 - Check terminations, secure cables and test insulation Check all terminations are correct and are tightened. Tighten the ac cable entry gland to ensure there is no strain on the terminals.
Page 37: Task 5 - Connect The Dc Load And Battery Cables
Terminate the battery live cable(s) at the battery MCB(s). Tighten the terminals.  The current rating of the MCBs must be derated to 75%. Switch OFF all MCBs. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 38: Task 6 - Install The Batteries
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 4 - Connect load cables Select load cable to suit the dc load currents and voltage drop requirements. Also refer to the table of minimum cable sizes for specific MCBs on page 79.
Page 39: Task 7 - Mount The Battery Temperature Sensor
 The Mid-point Monitoring sense wires must have short-circuit protection fitted close to the battery terminals. Use the Battery Mid-point Monitoring kits from Eaton (see Spare Parts on page 70) or equivalent. Connect a Mid-point Monitoring sense wire to the middle interconnecting link on each string of batteries (see following diagram).
Page 40: Task 8 - Connect External Input/Output Cabling (If Required)
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 2 - Fix sensor Fix the sensor above the batteries. To avoid false readings:  Do not attach the sensor to a battery case, battery cables, terminals or interconnecting bars.
Page 41: Task 9 - Connect Additional Input/Output (If Required - Sc200 Only)
Task 10 - Connect to the AC Supply Point  A suitably qualified electrician familiar with local wiring regulations must carry out the ac  connection. Step 1 - Replace all covers on the APS Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 42: Installation Completed
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 2 - Connect at the ac supply point Check the ac supply point is isolated. Connect the cord(s) or cable to the ac supply point, or fit plug(s) to the cord(s) to match the wall receptacle/socket(s), as required.
Page 43: Overview
Task 2 - Pre-Power-Up Checklist Task 3 - Applying AC Power Task 4 - Configuring the DC Power System Task 5 - Applying DC Power to Battery and Load Start-Up Completed Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 44: Start-Up Tasks
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Start-Up Tasks Complete all the Installation tasks (see details on page 20) before starting these Start-Up tasks. Complete the Start-Up tasks in the following order: Task Description Reference Insert the Rectifiers...
Page 45: Task 2 - Pre-Power-Up Checklist
The SC200 or SC100 system controller will turn on (green Power On LED is on) when  the rectifiers start. During start-up of the system controller the rectifier yellow alarm LEDs will flash until  the rectifiers are registered. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 46: Task 4 - Configuring The Dc Power System
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) After start-up of the system controller: Press any key on the system controller to silence the alarm.   Depending on the configuration file settings, one or both alarm LED(s) may be on and the system controller may display some system alarm messages.
Page 47: Task 5 - Applying Dc Power To Battery And Load
Step 3 - Connect load Switch on the Load MCB(s) and/or fit the Load fuses. Check the equipment powers up and the Load Fuse Fail alarm clears. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 48: Start-Up Completed
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 4 - Check the rectifier currents Check the rectifier currents. Verify the load current is as expected for the load and battery size and does not exceed the maximum load rating (see details on page 74).
Page 49: System Controller
Configuration File Starting the SC200 or SC100 SC200 or SC100 Operation using the Keypad and Screen SC200 or SC100 Operation Using a PC/Laptop SC200 or SC100 Identity Information Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 50: Configuration File
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Configuration File The operational settings of the dc power system are stored in a configuration file loaded into the SC200 or SC100 system controller. The SC200 or SC100 is supplied pre-loaded with a configuration file. If this configuration file has been customized for the site then no further configuration changes will be necessary.
Page 51: Starting The Sc200 Or Sc100
Handbook. All active Critical, Major, Minor and Warning alarms are displayed. SC100  Approx Start-up screen First status screen Main menu All active alarms are displayed. See details on page 82. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 52: Sc200 Or Sc100 Operation Using The Keypad And Screen
Keypad access is Read Only, or PIN Protected and the keypad access PIN is lost. The SC200 will continue to function, but no configuration changes can be made. Contact your Eaton dc product supplier or Eaton for advice (see Worldwide Support on page 107).
Page 53: Alarm Indicators
Critical/Major alarms always override Minor alarms. ► To stop the audible indicator Press any key   The audible indicator will restart at the next active alarm or alert message. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 54: Sc200 Or Sc100 Operation Using A Pc/Laptop
SC200 or SC100 Operation Using a PC/Laptop DCTools is configuration software for editing a system controller's configuration file (on-line) and monitoring the operation of Eaton's dc power systems. It is available free from dcpower.eaton.com/downloads. Using DCTools via USB (SC200 only) DCTools can be run on a PC/laptop connected to the SC200's USB port.
Page 55 System Controller ► To connect a PC/laptop to the SC200 or SC100: Download the latest version of DCTools from: dcpower.eaton.com/downloads. Install DCTools on the PC/laptop. Connect a null-modem cable from the COM1 RS232 port on the PC/laptop to the RS232 connector on the SC200 or SC100.
Page 56: Sc200 Or Sc100 Identity Information
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) SC200 or SC100 Identity Information The following identity information is stored in the SC200 or SC100. Parameter Description Where to find: Serial Number The SC200 or SC100 serial number SC100: Menu >...
Page 57: Maintenance
Eaton. This includes disassembly and/or servicing of any modules.  For further information on Servicing contact your local Eaton dc product supplier, or refer to the contact details on page 107. Topic Page...
Page 58: Troubleshooting
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Troubleshooting Use the table to troubleshoot minor installation and operational problems. For additional assistance see contact details on page 107. Return items for replacement or repair with a completed Equipment Incident Report on page 105.
Page 59 Install additional rectifiers. and rectifier yellow LEDs capacity. are on (rectifiers are in Battery is recharging after ac Check battery has recharged within current limit). supply failure. expected time. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 60 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Problem Possible Cause Required Action High system output voltage. Temperature Compensation is None. This is normal operation (if active and the battery batteries are connected). Disable temperature is below the Temperature Compensation if no reference temperature.
Page 61: System Controller Problems
Problem with power or Check all connections (see Connections communications to I/O board. on page 11). SC200 or SC100 or I/O board Replace faulty unit. software corrupt or hardware fault. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 62 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Problem Possible Cause Required Action Incorrect battery or load Bus voltage sense polarity is Check the bus voltage sense polarity and current readings. incorrect. correct if necessary. Incorrectly configured shunt Check shunt mapping and gain is correct.
Page 63 Check S3P Access is enabled. See details are disabled. in the System Controller Operation Handbook. Password required to change See Write Access Password in the System settings (using DCTools or Controller Operation Handbook. PowerManagerII). Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 64 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Problem Possible Cause Required Action Web communications Ethernet communications See previous entry. problem (SC200 only) problem. Cannot connect to web server. Check IP address and other settings in SC200 are correct. Check correct IP address is used in web browser address bar.
Page 65 See details in the System Controller Operation Handbook (SC200 only). Contactor is disconnected. Check the control and dc power cables are connected. See details on page 11. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 66: Replacing Or Adding A Rectifier
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Replacing or Adding a Rectifier Rectifiers can be replaced without switching off the dc power system and disconnecting the equipment it powers.  To reduce the risk of electric shock and maintain optimum system cooling, always cover ...
Page 67 Check that the rectifier’s Power On LED turns on (after the startup delay) and the alarm LEDs turn off.  The rectifier will automatically register with the system controller and download its operating parameters. No adjustments are required. Procedure complete Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 68: Replacing Or Adding A Load Mcb
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Replacing or Adding a Load MCB Step 1 - Remove covers Remove the top cover, if fitted. Remove the DC Distribution front cover. Step 2 - Remove existing MCB (if required) Disconnect the load cable and the fuse fail detect wire from the MCB top terminal.
Page 69: Replacing The System Controller
 contact your Eaton dc power system supplier to obtain a master configuration file to  suit the dc power system. This file will have to be customized for the site.
Page 70 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 4 - Download the configuration file Connect to the system controller with DCTools/Web. See details on page in the System Controller Operation Handbook. If a copy of the old configuration file, or a master configuration file is available, then use DCTools to restore (download) it to the new system controller.
Page 71 Repeat for other LVD(s) if fitted. Remove the LVD bridge cable if fitted. Procedure Complete Return the faulty system controller with a completed Equipment Incident Report on page 105. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 72: Replacing The Input/Output Board
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Replacing the Input/Output Board  When the I/O board is removed any LVD fitted will disconnect:   If a battery disconnect LVD is fitted the battery will be disconnected when the I/O board is removed (the load equipment will continue to operate from the rectifiers).
Page 73 The rectifier output voltage will be unchanged for 2 minutes. After 2 minutes the rectifier output voltage will change to the Float Voltage and the rectifier yellow LEDs will flash. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 74 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 4 - Remove the I/O board See the diagram on page or the diagram on page for location of I/O board. Label then disconnect all I/O board cable plugs. Do not disconnect the input/output wires connected to the push-connect terminals (XH15 - XH21).
Page 75 Be careful not to accidentally create a short circuit from the rectifier bus to the common bus or system chassis. Step 10 - Replace top cover (if fitted) Procedure complete Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 76: Battery Mid-Point Monitoring (String Fail) Alarm (Sc200 Only)
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Battery Mid-point Monitoring (String Fail) Alarm (SC200 only) Use the following procedure if a String Fail alarm is generated. Step 1 - Identify the faulty battery string Press any button on the SC200 to silence the alarm.
Page 77: Appendix A Equipment And Tools
USB port (for use with SC200) or RS232 port (for use with SC100)  DCTools software (download from dcpower.eaton.com/downloads).  Test load (to suit maximum output of dc power system)  Labeling tool and labels  Clamp-on ammeter  Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 78: Spare Parts
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Spare Parts Item Description Part Number Rectifier 48V, 2000W: Eaton APR48-ES See replacement procedure on page 58. 48V, 1800W: Eaton APR48-3G 24V, 1440W: Eaton APR24-3G Rectifier blank panel Eaton RMB1U-00...
Page 79: Standard Torque Settings
When a bolt and nut is torqued use a spanner to prevent rotation. Use hand tools when loosening and tightening stainless steel fasteners. Lubricate bolts before tightening to prevent them locking up. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 81: Appendix B Specifications
2P+PE (208V nom.): 2 x 72A feeds) 3P+N+PE (220-240V nom.): 2 x 24A 3P+PE (208V nom.): 2 x 42A Frequency Range 45-66Hz Earth Leakage Current (maximum) 1.3mA per rectifier Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 82 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) System Output Output Voltage (nominal) 24V or 48V Dependent on rectifier model. Output Voltage Range 21.5 - 32V / 43 - 57.5V Output Power (maximum) APS6-300 models: No LVD: 8.9kW* @ 48V...
Page 83 * Digital Output 6 is also used as the Monitor Fail alarm relay. It will de-energize if the I/O board loses power or loses communication with the SC200 or SC100. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G...
Page 84 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Digital Inputs (IOBGP) Number of Digital Inputs Connectors Screwless terminal blocks Wire Size 0.5 - 2.0mm [20 - 14 AWG] Maximum Cable Length 20m (65 feet) Input Types Voltage-free switch or relay contacts only...
Page 85 Firefox 3.0 or later. External modem options Type: PSTN or GSM Operation: Dial in/Dial out on alarm* * Can operate as a backup for Ethernet communications (SC200 only). Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 87: Appendix C Cable Ratings
Chint, DZ158-125 Series, 100A, Curve 35mm / 1AWG 307-912519-61 Chint, DZ158-125 Series, 125A, Curve 50mm / 0AWG * or local equivalent. Please contact your local Eaton sales office. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 89: Appendix D Controller Menus
At each menu screen press Enter to access the associated configuration menu screen(s). These menus have multiple configuration menu screens. See details in the System Controller Operation Handbook. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 90: Sc100 Menu
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) SC100 Menu The following diagram shows the Status Screens and main navigation.  See Analog System Values for details of the values displayed.   Any active alarms are displayed in rotation.
Page 91: System Controller Connector Pin-Outs
RXP System +24/48V (System bus voltage) Communications +24/48V (System bus voltage) RS485-A RS485-B USB B USB Serial Interface VCC (+5 V dc) (SC200 only) Data - Data + Ground Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 92: I/O Board (Iobgp-00, -01) Connector Pin-Outs
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) RS232 D9M and RJ45 connector pin-outs RJ45 plug pin-outs I/O Board (IOBGP-00, -01) Connector Pin-outs See input and output specifications on page 73. Connector Type Purpose Description LVD 1 Interface...
Page 93 Digital relay outputs 5-6* Relay 5 normally closed (NC) Relay 5 normally open (NO) Relay 5 Common (COM) Relay 6 normally closed (NC) Relay 6 normally open (NO) Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 94 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Connector Type Purpose Description Relay 6 Common (COM) RJ45 DC power system digital Load Fuse Fail inputs Battery Fuse Fail +12V out AC Distribution Fan Fail AC Distribution MOV Fail...
Page 95: Appendix F Transient Protection
Appendix F Transient Protection Transi ent Protecti on To prevent damage to Eaton Access Power Solutions from lightning and transient over-voltages, structural lightning protection and transient protection must be installed at each site. Transient protection will also protect against other sources of transients, such as: Circuit or grid switching by the power company ...
Page 96 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Primary Transient Protection Primary transient protection must be considered at all sites. Eaton recommends primary transient protection on the incoming ac supply either at the main ac switchboard or sub-switchboard.
Page 97 2kA. Tertiary Transient Protection Eaton rectifiers are fitted with 6kV/3kA transient protection. This is designed to protect the rectifiers from voltage spikes generated during operation of the upstream transient protection system. Do not install rectifiers without adequate upstream surge protection.
Page 99: Appendix G Earth Bonding
25). This link prevents these very large voltages from developing and protects the rectifiers from surge related damage. If your installation uses a mesh earth, then Eaton recommends that this factory fitted ac-dc earth link is retained. No further action is required.
Page 100 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Step 2 - Remove or replace the ac-dc Earth Link Ignore this Step if the factory fitted ac-dc earth link is used. There are two options if the ac-dc earth link cannot be retained. Either: ...
Page 101 See details on page System Controls See details on page System Alarms See details on page Digital Inputs See details on page Digital Outputs (Relays) See details on page Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 102: Analog Inputs
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Analog Inputs Equipment required: Digital Voltmeter  DC Load bank  DC Current Clamp meter  Trim pot adjustment tool  Thermometer  Test Test procedure Adjustment  Measure the dc voltage across the dc bus.
Page 103 As the analog inputs can be configured for many different types of analog signal, tests have not been detailed on this test sheet. User assigned analog inputs are not available on all systems. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 104: System Controls
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) System Controls Equipment Required: DC Load bank  Test Test procedure Adjustment  Apply a load to the power system. Voltage Control None  With DCTools, ensure the bus voltage matches the Target...
Page 105  Ensure the I/O board LVD LED is on.  Check the LVD contactor is connected. Low Voltage None  Disconnect – Increase the LVD Disconnect Voltage Threshold. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 106 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Test Test procedure Adjustment  Automatic Reduce the system voltage below the LVD Disconnect Voltage Operation Threshold.  Note 7 Wait for the configured Recognition Period.  Ensure the LVD disconnects.
Page 107: System Alarms
Turn off the ac MCBs to 2 rectifiers (if fitted). Multiple rectifier fail  The rectifiers will turn off.  Ensure alarm operates.  Remove a rectifier from the system. Rectifier comms lost  Ensure alarm operates. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 108 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Test Test procedure Adjustment  Remove 2 rectifiers from the system. Multiple Rectifier  comms lost Ensure alarm operates.  Turn off the ac to more than 20% of the rectifiers in the Partial AC Fail system.
Page 109 Change the AC Frequency Threshold. Note 6  Ensure alarm operates.  Change the state of the digital input with Engine Run Engine Run Option function. Note 7  Ensure alarm operates. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 110: Digital Inputs
Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Notes Ensure Alarm Tracking is disabled. Ensure Temperature Compensation is enabled. If the load is not connected to the load MCBs and if an electronic Fuse Fail detect circuits is...
Page 111: Digital Outputs (Relays)
Commissioning Completed Restore the original (backed-up prior to the testing) configuration file. Use DCTools/Web to change any configuration file settings that were noted as incorrect during the Commissioning tests. Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 113: Equipment Incident Report
Please enter as much information as you can. Send the completed form, together with the item for repair to your nearest authorized service agent. NOTE: Only one fault to be recorded per form. For further information contact your local Eaton dc product supplier or Eaton (see contact details on page 107). Or email: CustomerServiceNZ@eaton.com...
Page 114 ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ ______________________________________________________________________________________ SG/03 ISS06 Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 115: Worldwide Support
Worldwide Support Worldwide Support For product information and a complete listing of worldwide sales offices, visit Eaton's website at: dcpower.eaton.com or email: DCinfo@eaton.com For technical support contact either your local Eaton dc product representative, the closest office from the following list, telephone (+64) 3-343-7448, or email CustomerServiceNZ@eaton.com...
Page 117: Index
Configuration File • 38, 42, 61 Battery Charging • 39 Backup and Restore • 42 Battery Current • 54 Connection to AC Supply • 26, 33, 37 Battery Fuses • 52 Current Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 118 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) Battery Current • 54 Load Current • 54 High AC Voltage Protection • 20 Rectifier Current • 43 Current Sense • 10, 11, 76 Identity Information • 48 Input/Output (I/O) Board Damage (transport) •...
Page 119 Servicing • 18, 105, 107 Problems • See Troubleshooting SiteSure-3G I/O module Rectifier Alarms • 7, 37 Connection to APS • 3, 5 Rectifier blank panel • 58 Copyright © 2007-2013 Eaton Corporation. All Rights Reserved. IPN 997-00012-49G May 2013...
Page 120 Access Power Solutions Installation and Operation Guide (APS6-300/500 and APS12-300 Series) SMS Text Messaging • See GSM Modem Web Access Security • 56 Communications Web Server • 12, 56 SNMP • 12 Write Access Password • 55 SNTP • See Internal Clock Software Versions •...

This manual is also suitable for:

Aps6-300 series Aps6-500 series

Eaton APS12-300 Series Installation And Operation Manual

Appendix A Equipment and Tools

Appendix B Specifications

Appendix C Cable Ratings

Appendix D Controller Menus

Appendix F Transient Protection

Appendix G Earth Bonding

Quick Links

Need help?

Questions and answers

Related Manuals for Eaton APS12-300 Series

Summary of Contents for Eaton APS12-300 Series

This manual is also suitable for:

Table of Contents
