Page 1: Contents Part

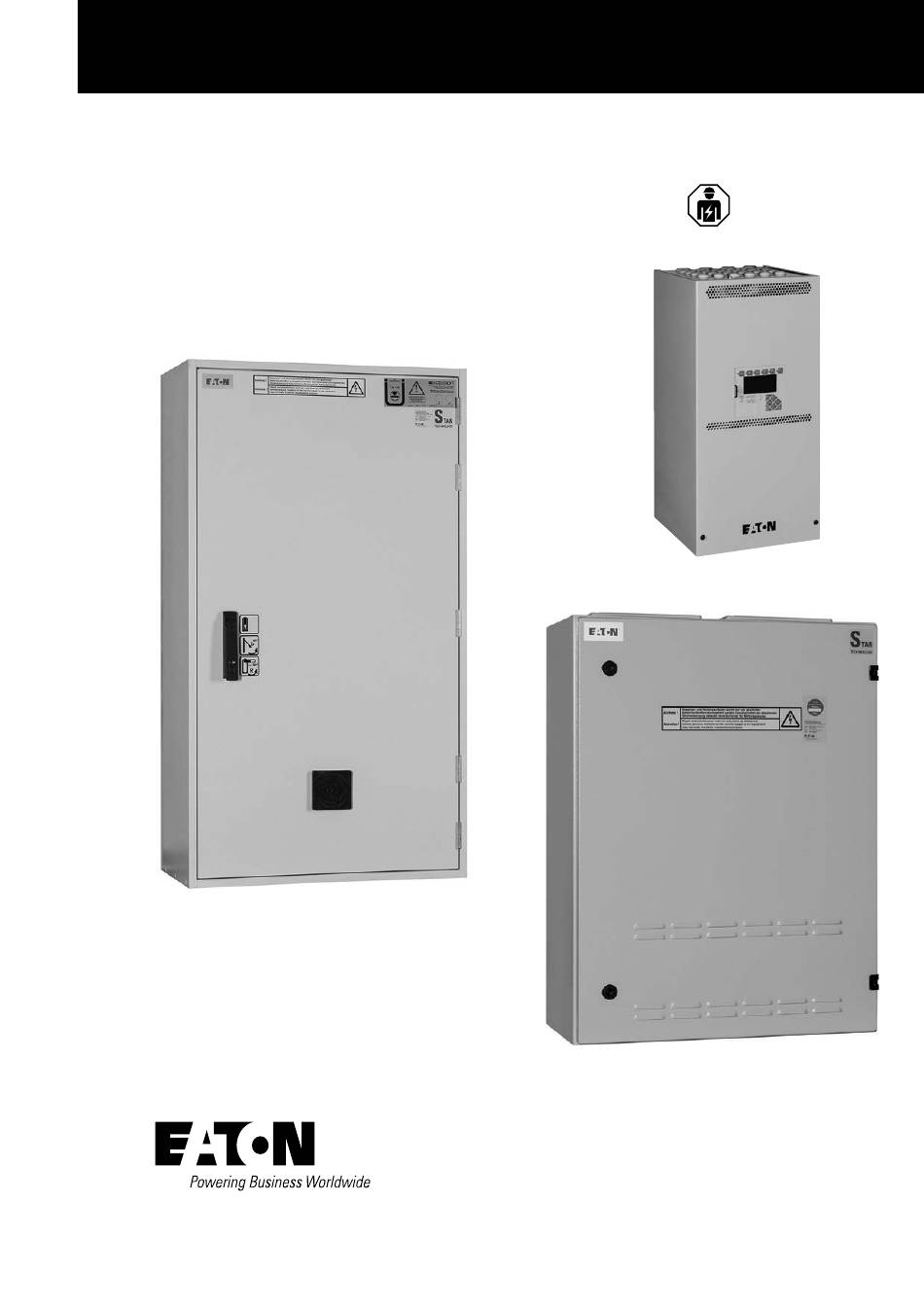

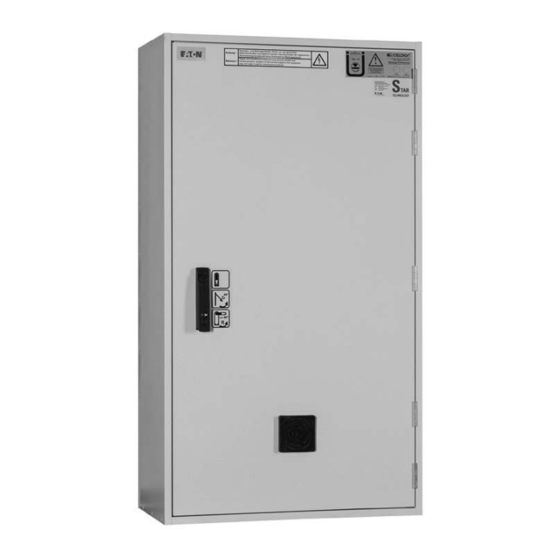

CEAG LP-STAR Mounting and operating instructions compact emergency power supply CEAG LP-STAR Target group part 1: Qualified electrician acc. to DIN VDE 0105, part 1 Target group part 2: Electrical instructed persons... -
Page 2: Table Of Contents
......54 Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 3: Important Information
. In the event of the use of unauthorised replacement parts all the guarantee, service, compensation and liability claims become null and void. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 4: Disposal
Please observe the national guidelines and regulations for the disposal of old batteries and electronic components. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 5: Safety
EN 62034 and is classified as type PERC. ATTENTION! Please observe the Installation conditions in chapter 5 „Setting up and installation“ . Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 6: Work Safety
0.14 - 4 mm² stranded Circuit power 345 VA / 330 W Rated breaking capacity 1500 A @ 300 V DC Max. rated power 24 V auxiliary voltage Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 7 Degree of protection / IP54 / I insulation class Weight (approx.) without 170 kg battery * Maximum Design Lifetime at +20 °C: 10 years Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 8: Assembly Of The Equipment Ip20
(if available). 4) Insert and strip cables. 5) Install and connect batteries 6) Switch device on and check it. 7) Mount the cover and bolt together Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 9: Assembly Of The Equipment Ip54
Rissen. Abweichungen müssen über Grenzmuster gesondert vereinbart werden. Free of dirt and unfamiliar materials, sink marks, voids, burrs, flow marks and cracks. Deviations have to be agreed upon boundary samples. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 10: Assembly Of The Equipment Esf30
Free of dirt and unfamiliar materials, sink marks, voids, burrs, flow marks and cracks. String 1 Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de Deviations have to be agreed upon boundary samples. String 2... -
Page 11: Product Description
Details on the national (DIN), European (EN) and international (IEC) norms that must be complied with can be found in the CE conformity declaration for the device. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 12: Overview Of The Structural Components
Four end circuits depending on the model of the device for the connection of the emergency lighting. Mains fuse 6.3 AT Circuit fuse 2.5 AT SD card slot Status LED display Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 13 Every potential-free contact can have one or more of 11 different alerts assigned to it. Freely programmable, DIN VDE specification retrievable at any time as default setting. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
- Page 14 • Start / exit function test 5A T F1 -0 2, • Start / cancel duration test • Block / unblock system • Manual reset • Switch maintained light on/off Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 15: Csu 500
• Power surge per circuit 250 A each circuit • Typical switch-over time: AC to DC = 450 ms L1/L2/L3/N/PE 4 x 2,5 AT 220 V 24 V Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 16: F3 Remote Display
View of F3 module with to device. front plate open! The switch is set to the left here, which is the setting for ZB-S/CG2000/LP-STAR devices. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 17: Web Module
Connect the ribbon cable included with the web module here. IP 54 Version Placing the web module in the casing Connecting the web module ESF30 Version Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 18: Bus Technology Cg-S Bus
Only one pair of wires can be used as a data line within the shield - bundling several data lines within one shielded cable is not permitted! CG-S bus Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 19 1:10 size language nker, Fließlinien, Grat Benennung/ designation ndert vereinbart werden. Massblatt LP-Star IP54 flow marks and cracks. CEAG-Sachnummer/ CEAG-part number 40071361350_ LP-STAR Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 20: Lp-Star Installation Example
CGVision X501 X101 Rel. 1 Rel. 2 Rel. 3 Rel. 4 +24V CG-S Optional inputs Control unit String 1 String 2 String 3 String 4 Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 21 220V DC 24V DC Funktional earth, factory-wired ATTENTION! Protective earth of the power suppy line has to be connected to the protective earth-connection bar . Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 22: Transport, Packaging And Storage
(See “8.4 Switch-off batteries for mainterance service”). This must be carried out by a qualified electrician. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 23: Setting Up And Installation
In both cases the system must have been blocked in advance by the control section. Please note that the LP-STAR device in not suitable for use in IT mains systems. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 24: Mains Connection
Insulation of the normal supply 212 W to the equipment does not ensure safety for maintenance purposes. Block system, remove fuse and connectors only when current is o Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 25: Connecting The Batteries
• Then connect the other battery strings in the same way, see pictures When disconnecting the battery power supply the same sequence applies in reverse Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 26 Battery order details Type Version Order no . 12 V/12 Ah Battery block, 10-year life 40066071147 Information on battery life at a max. battery temperature of +20 °C Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 27: Current Loop
• Check that all the connections are tight. • Remove all cabling, insulation and mounting materials that have not been used as well as all tools and packaging materials. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 28: Commissioning And Subsequent Work
Only use measuring devices for this that fulfil the requirements of DIN VDE 0413. • Disconnect the cables for the mains and battery power supply. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 29: Checking / Replacing Fuses
F 2 - 0 2 , 5 A T F 1 - 0 2 Fuse locations ATTENTION! Only the authorised CEAG Notlichtsysteme GmbH fuses may be implemented. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 30: Operating
Repeated tests with batteries may cause loss of capacity. The total duration of testing times should not exceed 10% of measuring duration in each month. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 31: Operating The Control Unit
On the next two pages there is an overview of the basic menu structure and further information on use and parametrisation. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 32 The M3 function can only be triggered if all the control units are bundled via the CG-S bus and CGVision is not being used. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
- Page 33 Send ServicePinMsg Manual reset Relay setup Buzzer setup Display setup 3.10 Charger setup 3.11 Webserver-Setup 3.12 Timer setup 3.13 Group device Setup 3.14 Connection to BMS Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 34: Menu 1: "Test & Statusmenu
ISO monitor test messages displayed in the graphic display on a step- Sum failure info by-step basis. etc. Sum failures Fault 1 Fault 2 Fault 3, etc. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 35 The current operating status for the Status message Charging-/Bat.state ZB-S station is shown in line 2 via multi- Relay-state Fault information Group device state master mode M3. Name of station Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 36: Menu 2: "Block & Reset Alarms
Upon confirmation the controls for the LP- Release device <ok> Manual reset STAR station return to normal operations if Reset DeepDischarge there are no further error messages. Reset ISO-failure Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 37: Menu 3: "Basic Setup
Delaytime Mains Select 1 ... 99 minutes with the Ret. etc..keys Exit and return to Menu 3 with <Menu> Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 38 Device failure NOTE! Load default values The continuous signal (following the occurrence of the event determined here) can be switched off by clicking on any button. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
- Page 39 An X appears under the weekday Timer setup Mo Tu We Th Fr Sa Su abbreviation, thus the luminaires are etc..on at the programmed time for this day. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
- Page 40 Select the function with Show sumfailures Select the function () with the <ok> Maintained off non maintained on Exit and return to Menu 3 with <Menu> Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
- Page 41 A change to this setting to the operating limit must (without input <Menu> be carried out by customer services. of any changes made) flashing input prompt Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
- Page 42 Daylight saving required for queries from CEAG customer Neuron FTT10A: Z271.0 of any changes time services) Continue with MENU made) Service info flashing input prompt Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 43: Menu 4: "Circuit Setup
Exit and return to Menu 4 with <Menu> In addition the optional inputs 1 ... 8 can be declared switches (see Menus 3.16 under “Basic setup”). Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 44 Surveillance” (see 4.1 “Monitoring Mode”). This value then serves as the basis for the prompt diagnosis of malfunctions (e. g. malfunction of luminaires). All the luminaires included must be installed and fully operational! Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 45: Menu 5: "Luminaire Setup
If the name has been entered in full, the entry can be confirmed with <ok>. The remaining characters behind the actual position of the cursor are deleted Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 46 It can be allocated with 1 timer and a switch: prompt “Timer 1 OptInp x ” “Timer 2 OptInp x ” “Timer 1&2 OptInp x ” Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
-
Page 47: Menu 6: "Memory Card
A new start-up is then carried out . The current configuration will be irretrievably overwritten by the new configuration! Return to default display Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 48: Maintenance / Checks
Germany. Please refer to the "Locations: CEAG Customer Services" in the appendix. In addition, in order to simplify your organisation we can also offer you a maintenance contract for your safety lighting! Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 49: Enabling Of End Circuits With Maintenance Work
, 5 A T F 1 - 0 2 Once the maintenance work has been completed reverse the procedure and lift the blocking of the control unit. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 50: Switch-Off Batteries For Mainterance
ESF30 Version String 1 String 1 String 2 24Ah 12Ah String 1 String 1 String 2 String 2 36Ah 48Ah String 3 String 3 String 4 Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 51: Appendix A: Vde Requirements For Remote Alarm Contact And Buzzer
The signalling contacts can be freely parametrised: 4 x changers 24V; 0.5A (SELV) Rel 1 Rel 2 Rel 3 Rel 4 Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 52: Appendix B: Location Plan For The Luminaires
Switch 1 Switch 2 Switch 2 Circuit name: _____________________________ Switch 1: __________________________________ Switch 2: __________________________________ Monitoring mode: _________________________ Installed wattage [W]: ______________________ Installed load [VA]: ________________________ Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 53: Appendix C: Installation Examples Monitoring
EVG is faultless, even in the DC voltage range. We recommend to ask the supplier of the ballast for an appropriate certification. Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... -
Page 54: Modules
Error fixed on: ________________ by: _______________________ Signature: _______________________ Function-/Durationtest no.: ___________________ Date: _________________ Time: _________________ Device no./Location: ________________________ Circuit No.: _____________ Luminaire no./Location: _____________ Error fixed on: ________________ by: _______________________ Unterschrift: _______________________ Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de... - Page 55 Notes Notes Mounting and operating instructions compact emergency power supply CEAG LP-STAR 40071860247 (L) September 2018 www.ceag.de...
- Page 56 At Eaton, we’re energized by the challenge of powering a world that demands more. With over 100 years experience in electrical power management, we have the expertise to see beyond today. From groundbreaking products to turnkey design and engineering services, critical industries around the globe count on Eaton.
