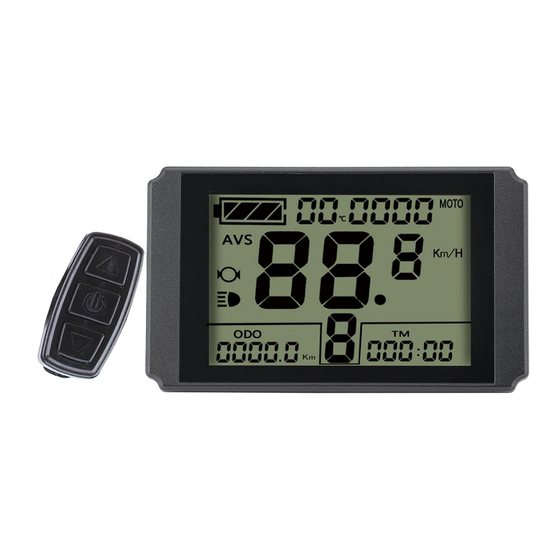

- Page 1 用户手册 User Manual KT-LCD10H e-Bike Special Meter WWW.SZKTDZ.COM...
-
Page 2: Table Of Contents
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Contents Preface……………………………………………………………………………..………. 4 Outlook and Size…………………………………………………………………………... 4 Meter Dimension …………………………………………………………………… 4 Button Box Dimension……………………………………………………………….. 5 Main Material and Color………………………………………………….………..5 Wiring Schematic……………………………………………………………….……. 5 Installation Instruction……………………………………………………………….…….. 5 Φ 31.8 handlebar diameters install icon………………………………………..….… 5 Φ... - Page 3 ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Environment Temperature…………………………………………………………... 15 Single Data Clearing………………………………………………………………..16 Automatic Prompt Interface……………………………………………………..….. 16 Error Code Display…………………………………………………….…..16 Motor Operating Temperature Alarm……………………………………..17 User Project Setting……………………………………………………………………..17 General Project Setting…………………………………………………………………… 17 Maximum Trip Speed…………………………………………………………..17 Wheel Diameter…………………………………………………………………..…. 18 Metric and Imperial Units…………………………………………………………...
- Page 4 ELECTRIC BICYCLE METER KT—LCD10H Product User Manual C12 Controller Minimum Voltage Adjustment Setting ..........33 C13 ABS brakes of the controller and parameters of anti-charge control Setting ..34 C14 Power-assist Tuning Parameters Setting .............35 C15 Push-assist Speed Parameters Setting..............36 Exit C Parameter Setting..................... 36 L parameters Setting.
-
Page 5: Preface
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Preface The illustrated manual will help you understand and be familiar with the meter function, guiding you on how to operate the meter, how to set the project parameters, how to achieve the best match of the three as motor, controller and meter to improve electronic control performance of the electric motor. -
Page 6: Button Box Dimension
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual ○ Button Box Dimension ○ Main Material and Color PC material is mainly used for KT-LCD10H meter and button box housing, and the housing color is black. ○ Wiring Schematic Installation Instruction The meter body and button box are mounted on the handlebars of the electric vehicle, adjusting perspective. -
Page 7: Φ 22.2 Handlebar Diameters Install Icon
○ Physical installation icon Function Overview KT-LCD10H meter provide you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands. ◇ Trip time display (with displays of a single trip time (TM) and total trip time (TTM));... -
Page 8: Display Content
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual ◇ Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO)); ◇ Display of turned on handlebar; ◇ Display of power-assist startup; ◇ Power assistant ratio (or handlebar) gear ( ) switch;... -
Page 9: Normal Operation
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual KT-LCD10H meter adopts the structural form with part design between the main part and operating buttons. There are three keys on the operating panel of button box, which are icons of button (alt text UP), button (alt text SW) and (alt text DOWN). -
Page 10: Display 2
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual The followings are shown on display 1. Battery Capacity Indicator Single Trip Time (TM) Display Power Assist Ratio Gear (ASSIST) Real-time Trip Speed (Km/H) Single Trip Distance 6Km/H Power Assist Function Motor Operation Power Environment Temperature Backlights and Headlights Status Brake Status... -
Page 11: Display 3
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual In display 1, press button (SW) to enter display 2. Display 2 The followings are shown on display 2: Total Trip Time (TTM) Total Trip Distance (ODO) Single Average Speed (AVS) Motor Operating Temperature In the riding mode after 5 seconds, display 2 automatically returns to display 1. -
Page 12: Display Of Turned On Throttle
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Display 3 The followings are shown on display 3. Single Maximum Speed (MXS) Real-time Voltage (VOL) In the riding mode after 5 seconds, single maximum speed will automatically return to real-time trip speed (Km/H) as shown in the icon. In display 3, press button (SW) again to enter display 1. -
Page 13: Display Of Power-Assist Startup
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual ○ Display of power-assist startup The meter is driving with power-assist under normal operating conditions, the display interface flashes the power-assist startup sign (ASSIST) as shown in the figure. The sign will be off automatically after about five seconds. ○... -
Page 14: Push Function
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual ○ Power Assistant Push Function Users can use 6Km/H power assist function when pushing vehicles. Hold button (DOWN), the meter assist function logo ( ) flashes, the vehicle drives at the speed of no more than 6Km/h. Release button (DOWN), the assist function will be revoked. -
Page 15: Battery Capacity Indicator
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual ○ Battery Capacity Indicator The meter can automatically identify 24V, 36V, 48V battery capacities when it is supporting use with the specified controller. When the battery capacity is over 70%, the four power displays of the meter are lit, when the battery capacities drop, the four power displays are off in order, when the power capacity is less than 15%, the four power displays are totally turned off. -
Page 16: Environment Temperature
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Motor operating power The operating temperature of the motor shows there should be a temperature sensor installed in the Inner motor to output the temperature for signal detection simultaneously. Motor operating temperature When the motor operating temperature exceeds the warning value, temperature display flashes to alarm, meanwhile the motor controller will offer the appropriate protection to motor. -
Page 17: Single Data Clearing
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual minutes after boot-up. ○ Single Data Clearing 5 seconds after the meter is powered on, at display 1, hold both the button (UP) and the button (DOWN) simultaneously for about 2 seconds, the single trip time (TM) and single trip distance (DST) flicker, then hold button shortly (SW), the record contents of both will be cleared. -
Page 18: Motor Operating Temperature Alarm
Under any interface, when the motor operating temperature exceeds the warning value, the motor operating temperature display flashes to alarm, meanwhile, the controller will offer the appropriate protection to motor. User Setting Project KT-LCD10H meter user setting project： ◇ General project setting ◇... -
Page 19: Wheel Diameter
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Setting interface of maximum trip speed Under the setting maximum riding speed interface, if there’s no button operation on the meter for more than 1 minute, and then the meter will automatically return to display 1, and the original set values will be saved. -
Page 20: Metric And Imperial Units
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual current set specification and enter into the next setting. ○ Metric and Imperial Units After finishing the wheel diameter setting, enter into the metric/imperial units setting interface, and then the speed and mileage unit flash. Press button (UP) or button (DOWN) to make sync selection of three metric/imperial units as speed, mileage, and the environment temperature. -
Page 21: P Parameter Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Among the three general project settings, after each setting is completed, if hold button (SW) long for about 2 seconds, all can exit the setting environment and return to display 1, meanwhile, the current set parameters are saved. Under each setting interface, if there’s no button operation on the meter for more than 1 minute, and then the meter will automatically return to display 1, and the original set parameters will be saved. -
Page 22: P2 Wheel Speed Pulse Signal Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual ○ P2 Wheel Speed Pulse Signal Setting Enter P2 parameter setting interface, P2 parameter column flashes. P2 parameter setting interface P2 is wheel speed pulse signal setting, if wheel generated 1 pulse signal by a revolution, P2 should be set as1. -
Page 23: P4 Throttle Startup Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual P3 parameter setting interface P3 is power assist control mode setting, when P3 parameter setting is1, power assist control mode is gear 5 of "imitation torque control" mode, when P3 parameter setting is 0, power assist control mode is gear 5 of "speed control"... -
Page 24: Exit P Parameter Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual P5 parameter setting interface P5 is power monitoring setting, when P5 setting is 0, the power monitoring is the "real-time voltage" mode. Namely, it is the method to determine the battery capacity based on real-time battery voltage. When P5 equals to a specified parameter, the power monitoring is the "smart power"... -
Page 25: C1 Power-Assist Sensor And Parameter Selection Setting
C1 is power-assist sensor and parameter select setting, its definition is shown in following table. C1 setting ranges between 0-7, press button (UP) or button (DOWN) for selection. C1 parameter definition table： KUNTENG power assist Start KUNTENG V12 Start sensors value... -
Page 26: C3 Power-Assist Ratio Gear Initialization Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Enter C2 parameter setting interface, C2 parameter column flashes. C2 parameter setting interface C2 is motor phase classification coding setting, it is served as identification parameter of different phases of the motor when using sine wave drive and the default value is 0. When C2 setting is 0, indicating that the used Quantum motor phase is an ordinary one. -
Page 27: C4 Throttle Function Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual The meter is powered on and the power assist ratio is at gear 0. The meter is powered on and the power assist ratio is at gear 1. The meter is powered on and the power assist ratio is at gear 2. The meter is powered on and the power assist ratio is at gear 3. -
Page 28: C5 Controller Maximum Current Adjustment Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Before power assist, the handlebar speed limit is 6Km/h, after power assist, handlebar is full speed. Zero startup, Zero gear effectively Stop power assist, return the handlebar speed limit is 6Km/h. Handlebar gears is distinguished Non-zero startup handlebar, Handlebar gears is according to the display meter. -
Page 29: C6 Backlight Brightness Adjustment Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual C5 value Maximum current value(A) Three level slow start/ Maximum current value Two level slow start/ Maximum current value One level slow start/ Maximum current value Maximum current value÷2.00 Maximum current value÷1.50 Maximum current value÷1.33 Maximum current value÷1.25 Maximum current value÷1.20 Maximum current value÷1.15... -
Page 30: C7 Cruise Function Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual C6 value Backlight brightness Dimmest Darker Standard Brighter Brightest After finishing C6 parameter setting, press button (SW) to save the current set values and enter C7 parameter setting interface. ○ C7 Cruise Function Setting Enter C7 parameter setting interface, C7 parameter column flashes. -
Page 31: C9 Power-On Password Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual C8 parameter setting interface C8 is motor operating temperature display setting, the setting range is 0 or 1, press button (UP) or button (DOWN) for selection. C8 parameter definition table： C8 value Motor operating temperature Function off Function on Please Note：The motor operating temperature display requires installing temperature... -
Page 32: C10 Automatic Restore Default Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual C9 value Startup password setting Function off Function on When C9 setting is 1, press button (SW), indicating that the password function is startup, and then enter the password settings interface, three password setting columns flash. -
Page 33: C11 Attribute Selection Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual press button (UP) or button (DOWN) for selection. C10 parameter definition table： C10 value Restore default setting Function off Function on When the meter is needed to restore default setting, C10 selects y, hold button for about 2 seconds, all parameters restore default settings and exit setting environment, and then return to the display1. -
Page 34: C12 Controller Minimum Voltage Adjustment Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual As data source for copying parameters, the meter transfers to second display. C11 selects 2, hold (SW) for about 2 seconds to exit the setting environment, and then the meter is served as data source for copying parameter (see parameter copy), there’s So 2 logo on display interface. -
Page 35: C13 Abs Brakes Of The Controller And Parameters Of Anti-Charge Control Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Default Default Default value-1.5V value-1.5V value-1.5V Default value-1V Default value-1V Default value-1V Default Default Default value-0.5V value-0.5V value-0.5V Default value Default value Default value 20V Default Default Default value+0.5V value+0.5V value+0.5V Default value+1V Default value+1V Default value+1V Default... -
Page 36: C14 Power-Assist Tuning Parameters Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual C13 parameter definition table: C13 Value ABS braking strength Energy recovery efficiency None None Best energy recovery Class 1 braking strength efficiency General energy recovery Class2 braking strength efficiency Weaker energy recovery Class 3 braking strength efficiency Poor energy recovery Class4 braking strength... -
Page 37: C15 Push-Assist Speed Parameters Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Weak assist strength of motor General assist strength of motor Stronger assist strength of motor After finishing C14 parameter setting, hold button (SW) shortly to save the current set values and enter C15 parameter setting interface. ○... -
Page 38: L Parameters Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual Under each parameter setting interface, if there’s no button operation on the meter for more than 1 minute, and then the meter will automatically return to display 1, and the original parameters will be saved. L Parameter Setting ○... -
Page 39: L3 Parameters Setting
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual When L2=0, P1 parameter is set as the calculated value. When L2=1, P1 parameter is set as a half of the calculated value. After finishing L2 parameter setting, press button (SW) to save the current value and then enter L3 parameter setting interface. -
Page 40: Parameter Copy
Set parameters (include general project parameter, P parameter and C parameter) of all KT-LCD10H meter produced by our company according to requirements, and set the meter to be a data source according to the method of "C11 meter attribute selection setting". -
Page 41: User Setting Note
ELECTRIC BICYCLE METER KT—LCD10H Product User Manual available (VB + positive power supply). After wiring the meter needs to be copied, hold button long till meter is startup. Within 5 seconds after startup, hold button (UP) and button (DOWN) simultaneously for about 2 seconds, meter parameter copy is completed.
