KUNTENG KT-LCD8Y User Manual

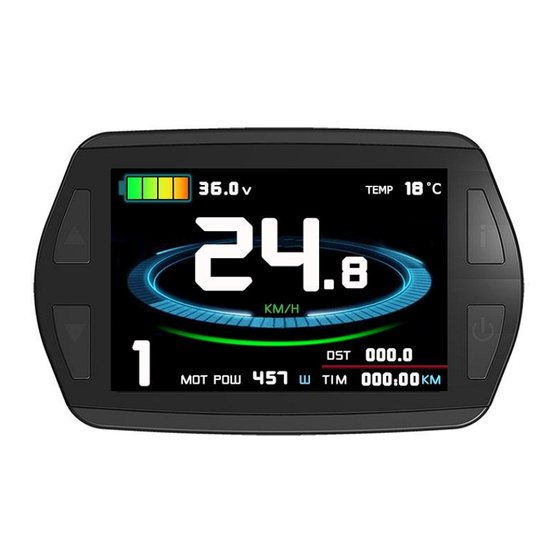

KT-LCD8Y E-Bike Display User Manual
1、
Dear customer, please read this manual before you use KT-LCD8Y Display. The manual will guide you use the
instrument correctly to achieve a variety of vehicle control and vehicle status displays
Functions and Display
2、

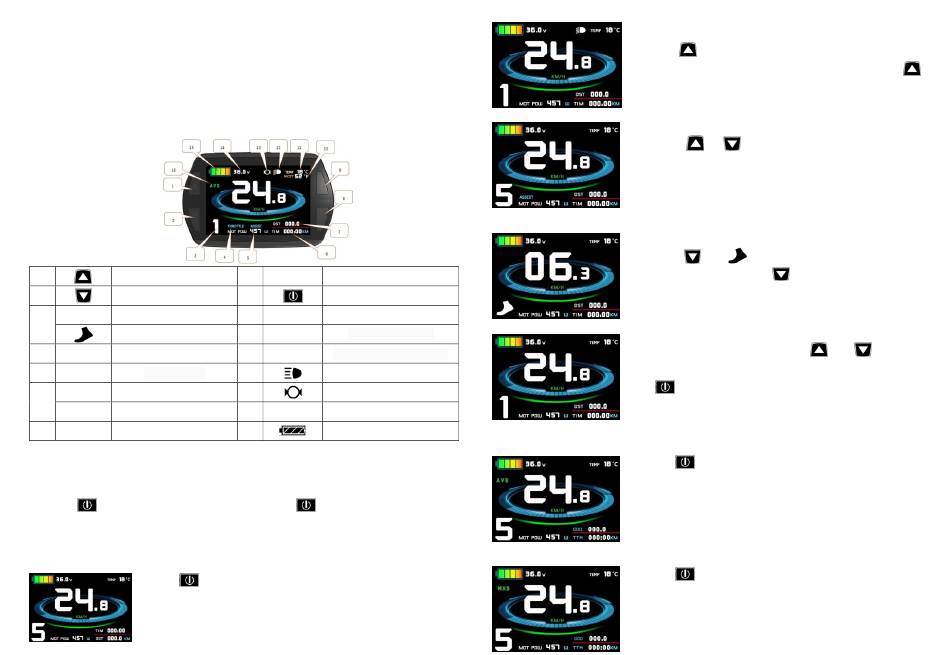

Instruments using the structure form of instrument body portion and the operation buttons are designed separately.
1 UP Button
2 DOWN Button
ASSIST
Pas level
3
6Km/H push power assist
THROTTLE
4 Throttle display
MOT POW W
5 power display
TIM
Single trip time
6
TTM
Total trip time
DST
7 Trip distance
1. Operation
2. ON/OFF
Hold button long to turn on the power, and hold
the power. When the motor stops driving and when the e-bike is not used for a consecutive 5
minutes, it will automatically shut down and turn off the motor power supply
3. Display 1
Hold button to start up and enter display
V
ODO
Total distance
8 SW Button
i
9 Setting button
MOTT
10 Power temperature
TEMP
11 Environment temperature
12 Backlight and headlights
13 brake display
VOL
14 Battery voltage
15
Battery capacity indicator
long for a second time to turn off
2.0
4. Display 2
5. Display 3
3.1 Turn on backlight and headlights
Hold long to turn on backlight and headlights (the
controller should have headlight drive output function); hold
long again to turn off the backlight and headlights.
3.2 Assist ratio gear (ASSIST) switch
Press or to switch 0-5 file gear. Gear 1 is for the
minimum power, gear 5 is for the highest power. Each startup will
automatically restore the gear shutdown last time (the user can set
randomly). Gear 0 is without booster function
3.3 6Km/H assist promotion function
Hold and flashes, the vehicle drives at the speed
not more than 6Km /h. Release button, the function is invalid
3.4 display and delete of single data
After power on for 5 seconds, hold
time, single trip riding time (TM) and single trip distance (DST) flash,
hold button shortly, the content of both is cleared. If failed
holding the button within 5 seconds, it will automatically return the
display interface after 5 seconds, original content is preserved
Press button in display 1 to enter display 2
In the riding mode after 5 seconds, display 2 automatically returns
to display 1。
Press button in display 2 to enter display 3
In the riding condition, five seconds later, a single maximum
speed (MXS) display automatically returns to the real riding speed
(Km/H)
and at the same
