Access Modular Controller 2

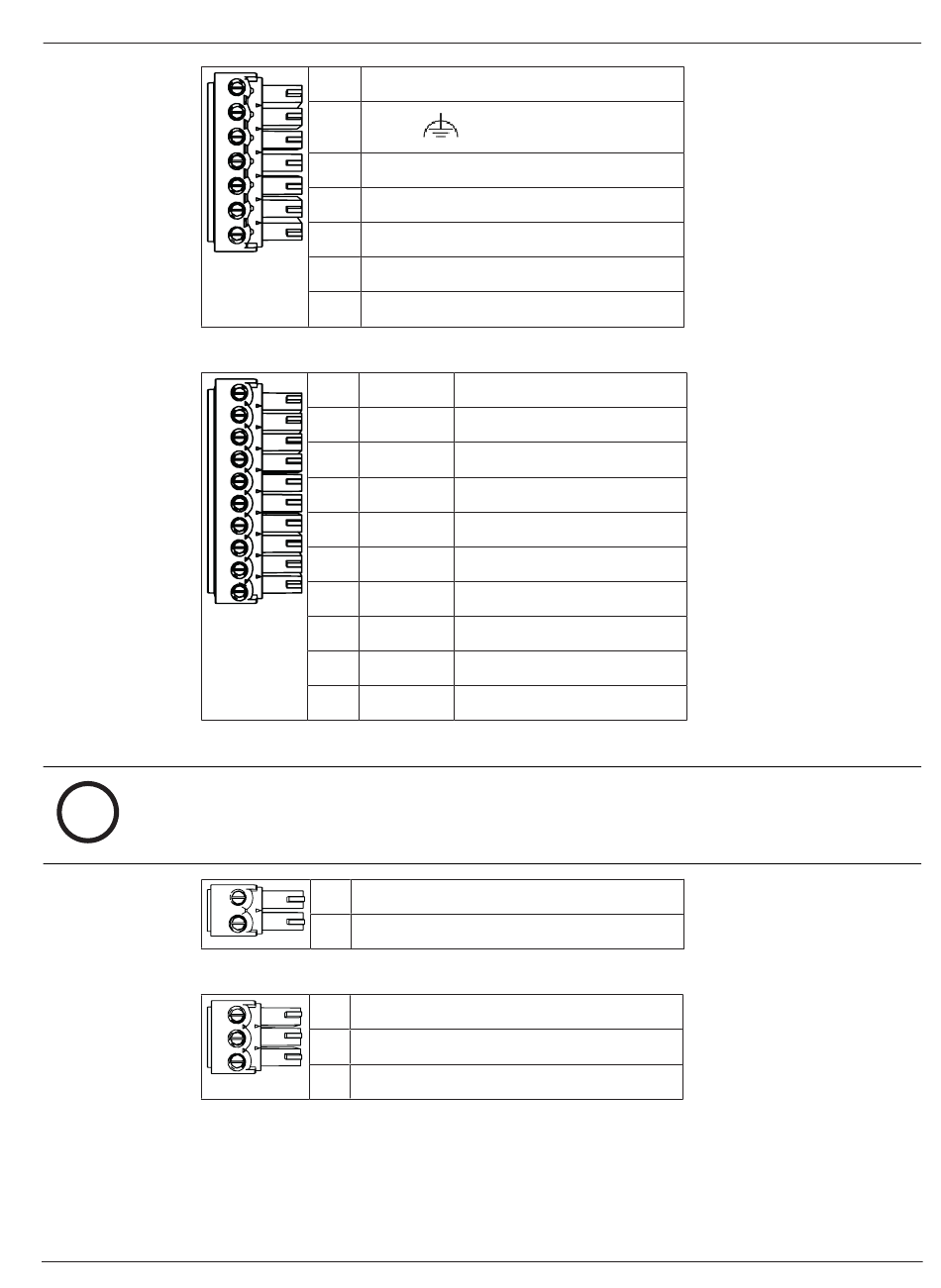

Table 11.6: Power supply
Table 11.7: Wiegand interface AMC
Notice!
i
For reader settings refer to the respective reader manual.
Table 11.8: Analog input
Table 11.9: Relay output
Bosch Security Systems B.V.
1 Power supply, DC positive (10V - 30V)
2
Shield
3 Power supply (0V)
4 UPS (power good signal) - AC
5 UPS (power good signal) - Battery
6 UPS (power good signal) - DC
7 UPS (power good signal) - Common
1 red Power supply (12V)
2 black Power supply (GND)
3 green Data 0
4 white Data 1
5 drain GND
6 orange green LED
7 brown red LED
8 yellow Beeper
9 blue Hold
10 violet Card Present
1 Analog Input, in
2 Analog Input, out
1 Relay Output, normally open
2 Relay Output, common
3 Relay Output, normally closed
Руководство по установке
Appendices | en 47
