User Manual

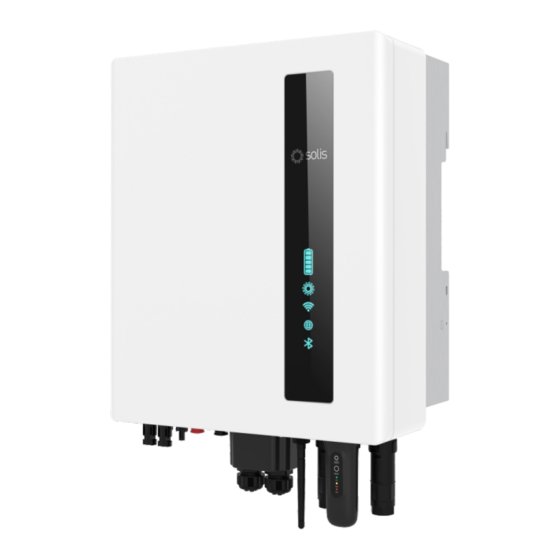

for S6 Series Hybrid Inverter
Applicable models
S6-EH1P3K-L-EU/BE
S6-EH1P3.6K-L-EU/BE
S6-EH1P4.6K-L-EU/BE
S6-EH1P5K-L-EU/BE
S6-EH1P6K-L-EU
Applicable System
Single phase system
Version 1.0, Release Date: 01,2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the solis S6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ginlong solis S6 Series

Summary of Contents for Ginlong solis S6 Series

  • Page 1 User Manual for S6 Series Hybrid Inverter Applicable models S6-EH1P3K-L-EU/BE S6-EH1P3.6K-L-EU/BE S6-EH1P4.6K-L-EU/BE S6-EH1P5K-L-EU/BE S6-EH1P6K-L-EU Applicable System Single phase system Version 1.0, Release Date: 01,2023...

  • Page 2: Table Of Contents

    Contents 1. Introduction ……………………………………………………………………………………………………………………………… 1.1 Product Description ……………………………………………………………………………………………………………… 1.2 Packaging ………………………………………………………………………………………………………………………………… 2. Safety & Warning ……………………………………………………………………………………………………………… 2.1 Safety ………………………………………………………………………………………………………………………………………… 2.2 General Safety Instructions ………………………………………………………………………………………………… 2.3 Notice For Use ………………………………………………………………………………………………………………………… 2.4 Notice for Disposal ……………………………………………………………………………………………………………… 3. Overview …………………………………………………………………………………………………………………………………… 3.1 Intelligent LED Indicators …………………………………………………………………………………………………...

  • Page 3: Introduction

    1. Introduction User Manual 1.1 Product Description The Solis S6-EH1P-L Series is designed for residential hybrid systems, which can work with batteries to optimize self-consumption. The unit can operate in both off-grid and on-grid modes. This manual covers the Solis S6-EH1P-L Series model listed below: S6-EH1P3K-L-EU/BE, S6-EH1P3.6K-L-EU/BE, S6-EH1P4.6K-L-EU/BE, S6-EH1P5K-L-EU/BE, S6-EH1P6K-L-EU Figure 1.1 Front side view...

  • Page 4: Packaging

    1. Introduction User Manual 1.2 Packaging Please ensure that the following items are included in the packaging with your machine: Back plate x1 Fastening screw x2 Inverter x1 AC grid terminal x1 RJ45 connector x8 Battery Cable x2 AC backup terminal x1 DC connector x2 RS485 Meter cable x1 Battery Temperature Sensor...

  • Page 5: Safety & Warning

    2. Safety & Warning User Manual 2.1 Safety The following types of safety instructions and general information appear in this document as described below: DANGER: “Danger” indicates a hazardous situation which if not avoided, will result in death or serious injury. WARNING: “Warning”...
  • Page 6 2. Safety & Warning User Manual WARNING: To reduce the risk of fire, over-current protective devices (OCPD) are required for circuits connected to the inverter. The DC OCPD shall be installed per local requirements. All photovoltaic source and output circuit conductors shall have isolators that comply with the NEC Article 690, Part II.

  • Page 7: Notice For Use

    2. Safety & Warning User Manual WARNING: The S6-EH1P-L Series does not support parallel in three phase operation on the AC-BACKUP port. The inverter support parallel in single phase and support generator. × × × 3 Phase LOAD WARNING: Please refer to the specification of the battery before configuration. 2.3 Notice For Use The inverter has been constructed according to the applicable safety and technical guidelines.

  • Page 8: Overview

    3. Overview User Manual 3.1 Intelligent LED Indicators There are five indicators on the The Solis S6-EH1P(3-6)K-L Series Inverter (Battery, Power, WiFi, Ethernet and Bluetooth) which indicate the working status of the inverter. The Bluetooth Antenna or WiFi datalogger shall be installed at the Antenna/COM port of the hybrid inverter before local debugging.

  • Page 9: Installation

    4. Installation User Manual 4.1 Select a Location for the Inverter To select a location for the inverter, the following criteria should be considered: Exposure to direct sunlight may cause output power derating. It is recommended to avoid installing the inverter in direct sunlight. It is recommended that the inverter is installed in a cooler ambient which doesn't exceed 104℉/40℃.

  • Page 10: Mounting The Inverter

    4. Installation User Manual Install on a wall or strong structure capable of bearing the weight of the machine (24.18kg). Install vertically with a maximum incline of +/- 5 degrees, exceeding this may cause output power derating. To avoid overheating, always make sure the flow of air around the inverter is not blocked.
  • Page 11 4. Installation User Manual 4.2 Mounting the Inverter Dimensions of mounting bracket: 407.5 unit:mm Φ6.8 3-OB11*6.8 Figure 4.3 Inverter wall mounting Once a suitable location has be found accordingly to 4.1 using figure 4.3 mount the wall bracket to the wall. The inverter shall be mounted vertically.

  • Page 12: Pe Cable Installation

    4. Installation User Manual ≤15° Vertical Backward Install vertically (+/- 5°) or tilted backward (≤15°). Don't mount inverter on the tilted forward wall. Don't mount inverter on the horizontal. 4.3 PE Cable Installation An external ground connection is provided at the right side of inverter. Prepare OT terminals: M4.

  • Page 13: Pv Input Cable Installation

    4. Installation User Manual 4.4 PV Input Cable Installation Before connecting inverter, please make sure the PV array open circuit voltage is within the limit of the inverter. Before connection, please make sure the polarity of the output voltage of PV array matches the“DC+”and“DC-”symbols.
  • Page 14 4. Installation User Manual 3. Pass the stripped DC cable through the nut and waterproof rubber ring. Positive terminal Negative terminal Figure 4.8 4. Connect the wire part of the DC cable to the metal DC terminal and crimp it with a special DC terminal crimping tool.
  • Page 15 4. Installation User Manual 6. Measure PV voltage of DC input with multimeter, verify DC input cable polarity. Figure 4.11 7. Connect the wired DC terminal to the inverter as shown in the figure, and a slight "click" is heard to prove the connection is correct. Click Figure 4.12 CAUTION:...

  • Page 16: Battery Power Cable Installation

    4. Installation User Manual 4.5 Battery Power Cable Installation Step 6: Installing the battery cable. NOTE: 1. The positive wiring (the angle of the limit tip is 90°) is connected to the positive socket, and the negative wiring (the angle of the limit tip is 180°) is connected to the negative socket;...

  • Page 17: Ac Cable Installation

    4. Installation User Manual 4.6 AC Cable Installation There are two AC terminals and the assembly steps for both are the same. TakeouttheACconnectorpartsfromthepackaging. Describe Numerical value Cable diameter 10~14mm Traverse cross sectional area 6~8mm² Exposure Length Table 4.2 Disassemble the AC connector. Strip the AC wires about 9mm 22mm 27mm Figure 4.14...
  • Page 18 4. Installation User Manual 4. Push Housing into Body. Click Figure 4.17 5. Insert Seal and Clamp Finger into socket ,then tighten the nut , torque 4+/-0.5N·m. Figure 4.18 6. The same installation for both cable end plug and socket connectors. 7.

  • Page 19: Communication Cable Installation

    4. Installation User Manual 4.7 Communication Cable Installation 4.7.1 Protective Cover for Communication Ports Figure 4.20 Inverter in the package is with a protective cover assembled to protect the communication ports. Step 1. Use Phillips screwdriver to take out the 4 screws on the cover. Step 2.
  • Page 20 4. Installation User Manual 4.7.2 Communication Port Definition Meter RS485 DRM DO/DI BMS Reserved Figure 4.21 Port Function Used for CAN communication between inverter and Lithium battery BMS. Used for RS485 communication between inverter and the smart Meter meter. It is necessary to realize the normal hybrid control logics. (Optional)To realize Demand Response or Logic interface function, this function may be required in UK and Australia.
  • Page 21 4. Installation User Manual 4.7.3 BMS Port Connection Take out the pre-made CAN cable from the package and connect one end to battery CAN port and then connect another end to the inverter BMS port. Cable Length: 3 meters. Figure 4.22 NOTE: Before connecting CAN cable with the battery, please check whether the communication pin sequence of the inverter and the battery match;...
  • Page 22 4. Installation User Manual 4.7.5 DRM Port Connection (Optional) 4.7.5.1 For Remote Shutdown Function Solis inverters support remote shutdown function to remotely control the inverter to power on and off through logic signals. The DRM port is provided with an RJ45 terminal and its Pin5 and Pin6 can be used for remote shutdown function.
  • Page 23 4. Installation User Manual NOTE: Solis hybrid inverter is designed to provide 12V power for DRED. Correspondence between the 1--8 RJ45 plug RJ45terminal cable s and the stitch es of plug Pin 1: white and orange ; Pin 2: orange 1 2 3 4 5 6 7 8 Pin 3: white and green；...

  • Page 24: Meter Installation

    4. Installation User Manual 4.8 Meter Installation CAUTION: Make sure the AC cable is totally isolated from AC power before connecting the Smart Meter and CT. A Smart Meter with the CT in product box is compulsory for hybrid system installation. It can beused to detect the grid voltages and current directions, provide the operating condition of the hybridinverter via RS485 communications.
  • Page 25 4. Installation User Manual 4.8.1 Single phase meter installation...

  • Page 26: Inverter Remote Monitoring Connection

    4. Installation User Manual 4.9 Inverter Remote Monitoring Connection The inverter can be remotely monitored via WiFi, LAN or 4G. The USB type COM port at the bottom of the inverter can connect to different kinds of Solis data loggers to realize the remote monitoring on Soliscloud platform. To install Solis data loggers, please refer to corresponding user manuals of Solis data loggers.

  • Page 27: Commissioning

    5. Commissioning User Manual 5.1 Preparation Ensure all the devices are accessible for operation, maintenance and service. Check and confirm that the inverter is firmly installed. Space for ventilation is sufficient for one inverter or multiple inverters. Nothing is left on the top of the inverter or battery module. Inverter and accessories are correctly connected.

  • Page 28: Operation

    6. Operation User Manual 6.1 Power On This inverter can be powered on by PV only, battery only and Grid only. It is suggested that turn on the battery firstly, then set the parameters. After setting, turn on PV and GRID breakers to check whether the system runs properly. When the inverter is powered on, the five indicators will be lighted at once.

  • Page 29: Log In The App Via Bluetooth

    6. Operation User Manual 6.2 Log in the APP via bluetooth Step 1: Connect with Bluetooth. Turn on Bluetooth switch on your mobile phone and then open the Soliscloud APP. Click “More Tools”->”Local Operation”->”Connect with Bluetooth” < Local Operation Register Register Hello, Hello,...

  • Page 30: Initial Set Up

    6. Operation User Manual 6.3 Initial set up After the log in for the first time, there is a setup wizard need to be finished. Inverter Time -> Battery Model -> Meter Setting -> Grid Code -> Work mode Step 4.1: Set the inverter Date and Time. You can set to follow the time on your mobile phone.
  • Page 31 6. Operation User Manual Step 4.3: Set the meter setting. - Meter Type need to be set. It must be based on the meter type that is actually connected to the inverter. - Meter Installation Location need to be set. It is suggested to install the meter at the system grid connection point and select “Meter in Grid”...
  • Page 32 6. Operation User Manual Step 4.4: Set the grid code setting. Please select the grid code based on the local grid network requirements. Quick Setting Next Battery Model Grid Code Inverter Time Meter Setting Work Mode G59/3 User-define GREECE230 HK230 RENBLAD CEI 0-16 NTS631...
  • Page 33 6. Operation User Manual Work mode1: Self-Use Mode (default) Recommended setting is Self-Use Mode. This mode can maximize the use of PV power generation for household electricity, or store it in batteries and use it for household electricity. If need manually control the battery charging and discharging with respect to time, please use the Time of Use switch and the following set points.
  • Page 34 6. Operation User Manual Work mode3: Backup Mode This mode can coexist with Self-use or Feed in priority and is only suitable for lithium battery.In this mode,part of the battery capacity is reserved for the Backup load in case of power failure.The Backup SOC needs to be set to define the capacity to retain the battery .The “Allow Grid Charging”...
  • Page 35 6. Operation User Manual Step 5: Setup complete. Now the initial settings on the inverter have been set and you can switch on the inverter DC switch and switch on battery breaker to start up the system. You can also explore in the APP to check the operating data, alarm message or other advanced settings.
  • Page 36 6. Operation User Manual Energy flow diagram The home page can display the working state, Today Yield of PV, Today Imported/ Exported of Grid, Today Charged/Discharged of battery and Today Consumption of household electricity. Today imported:0.0KWh Today Today Yield:14.2KWh Exported:0.0KWh 908W 0.0W Grid Side...
  • Page 37 6. Operation User Manual Information The Inverter page can display basic information such as historical yield, today PV input power, Inverter SN, rated power, model number, DSP/HMI firmware version, grid code and communication connection. The advanced information is authorized by the installer. Load Inverter Battery...
  • Page 38 6. Operation User Manual The Battery page can display charging&Discharging power, battery SOC, Charging& Discharging Energy, Other Parameters(From BMS), Other Parameters(From inverter). Inverter Battery Grid Load Discharge Power Battery SOC Charged Discharged Today 6.8kWh 0.2kWh Total 1830kWh 1536kWh Other Parameters(From BMS) 100% Battery SOH Battery Model...
  • Page 39 6. Operation User Manual The grid page can display Energy Imported&Exported， Grid Data and Meter data. Battery Grid Load Inverter Exported Imported Today 0.0kWh 0.0kWh Yesterday 0.0kWh 0.0kWh Total 1kWh 0kWh Grid Data Power -1399W Voltage 220.8V Frequency 49.95Hz Home Info Alarm Settings...
  • Page 40 6. Operation User Manual The Load page can display the load power consumption in the grid side and the backup side. Grid Load Inverter Battery Grid Side Grid Load Power(Active) Total Grid Load Consumption 0kWh Today Grid Load Consumption 0.0kWh This Month Grid Load 0kWh Consumption...
  • Page 41 6. Operation User Manual Settings Mode Setting The interface can display the current work mode, Self-Use/Feed in Priority/Backup/ Off-Grid. Please refer to page 32-33 for specific introduction. < Work Mode Current Work Mode Self use-time charging > Self-Use Mode > Feed in Priority Mode >...
  • Page 42 6. Operation User Manual Grid Code Setting Please select the Grid code you need. < Grid Code Setting > Grid Code G59/3 > OV-G-V 01 262.2V > OV-G-V-T 01 1.00s > OV-G-V 02 273.7V > OV-G-V-T 02 0.50s > UN-G-V 01 200.1V >...
  • Page 43 6. Operation User Manual Battery Setting Battery Model: select the battery model to be connected. Battery Over-voltage/Under-voltage Protection: fill in the appropriate data to protect the battery and extend its life. Over-discharge SOC: when the battery is discharged to the over-discharge SOC, the battery will not discharge actively.(Due to the internal current conduction, there is a small self-consumption power, if not charged for a long time, the SOC will slowly continue to decline.)
  • Page 44 6. Operation User Manual Backup Setting Backup Port Enabling Setting: please turn on it if the Backup port is needed. < Backup Setting Backup Port Enabling Setting Backup Port Reference Voltage > 230.0V Setting Voltage Droop Setting Alarm The Alarm page can display the Current Alarm(unsolved faults) and the Historical Alarm (resolved faults).

  • Page 45: Shutdown Procedure

    6. Operation User Manual 6.4 Shutdown procedure Step 1. Turn off the AC circuit breaker at the grid-connection point. Step 2. Turn off the DC switch of the inverter. Step 3. Turn off the battery circuit breaker. Step 4. Wait until the device is powered off and the system is shut down.

  • Page 46: Maintenance

    7. Maintenance User Manual Solis S6 Series inverter does not require any regular maintenance. However, cleaning the heatsink will help the inverter dissipate heat and increase the lifetime of inverter. The dirt on the inverter can be cleaned with a soft brush.

  • Page 47: Troubleshooting

    8. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion 1. Turn on the device in the ON/OFF Setting. Control device to shutdown 1. Confirm whether the inverter is connected to an external EPM/meter to prevent reverse current. 2. Confirm whether the inverter is controlled The device's output is under LmtByEPM by an external third-party device.
  • Page 48 8. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion 1. Grid side fault, restart the device. Surge Alarm On-site grid surge If it is still not eliminated, please contact the manufacturer's customer service. Grid voltage exceeds the OV-G-V01 upper voltage range Grid voltage exceeds the UN-G-V01 lower voltage range...
  • Page 49 8. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion 1. Confirm whether the battery model selection Wrong battery brand selection BatName-FAIL is consistent with the actual one. 1. Can failure is a failure of communication between inverter and battery. Check cable conditions.
  • Page 50 8. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion 1. Confirm that the grid is abnormal. 2. Confirm that the AC cable connection is not DCInj-FAULT The current DC component abnormal. (1037 DATA:0000) exceeds the limit 3. Restart the system, confirm that the fault continues.
  • Page 51 8. Troubleshooting User Manual Message Name Information Description Troubleshooting Suggestion OV-ILLC 1. Check whether the backup load is overloaded. LLC hardware overcurrent (1052 DATA:0000) 2. Restart the system, confirm that the fault continues. INI-FAULT AD zero drift overlink (1031 DATA:0000) DSP-B-FAULT The master-slave DSP 1.

  • Page 52: Specifications

    9. Specifications User Manual Technical Data S6-EH1P3K-L-EU/BE S6-EH1P3.6K-L-EU/BE Input DC (PV side) Recommended max. PV power 4800W 5700W Max. input voltage 600V Rated voltage 330V Start-up voltage MPPT voltage range 90-520V Full load MPPT voltage range 105-520V 125-520V Max. input current 16A/16A Max.
  • Page 53 9. Specifications User Manual Technical Data S6-EH1P3K-L-EU/BE S6-EH1P3.6K-L-EU/BE Output AC(Grid side) Rated output power 3.6kW Max. apparent output power 3.3kVA 4kVA Operation phase 1/N/PE Rated grid voltage 220 V/230 V The grid voltage range 187-253 V Rated grid frequency 50 Hz/60 Hz AC grid frequency range 45-55 Hz/55-65 Hz Rated grid output current...
  • Page 54 9. Specifications User Manual Technical Data S6-EH1P3K-L-EU/BE S6-EH1P3.6K-L-EU/BE General data Dimensions(W/H/D) 405*480*205mm Weight 24.18kg Topology High frequency insolation (for battery) Operation temperature range -25℃～+60℃ Ingress protection IP66 <35 dB (A) Noise emission Cooling concept Natural convection Max.operation altitude 4000m G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, Grid connection standard...
  • Page 55 9. Specifications User Manual Technical Data S6-EH1P4.6K-L-EU/BE S6-EH1P5K-L-EU/BE Input DC (PV side) Recommended max. PV power 7000W 8000W Max. input voltage 600V Rated voltage 330V Start-up voltage MPPT voltage range 90-520V Full load MPPT voltage range 160-520V 175-520V Max. input current 16A/16A Max.
  • Page 56 9. Specifications User Manual Technical Data S6-EH1P4.6K-L-EU/BE S6-EH1P5K-L-EU/BE Output AC(Grid side) Rated output power 4.6kW Max. apparent output power 4.6kVA 5.5kVA/5kVA(For Belgium) Operation phase 1/N/PE Rated grid voltage 220 V/230 V The grid voltage range 187-253 V Rated grid frequency 50 Hz/60 Hz AC grid frequency range 45-55 Hz/55-65 Hz...
  • Page 57 9. Specifications User Manual Technical Data S6-EH1P4.6K-L-EU/BE S6-EH1P5K-L-EU/BE General data Dimensions(W/H/D) 405*480*205mm Weight 24.18kg Topology High frequency insolation (for battery) Operation temperature range -25℃～+60℃ Ingress protection IP66 <35 dB (A) Noise emission Cooling concept Natural convection Max.operation altitude 4000m G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, Grid connection standard...
  • Page 58 9. Specifications User Manual Technical Data S6-EH1P6K-L-EU Input DC (PV side) Recommended max. PV power 9600W Max. input voltage 600V Rated voltage 330V Start-up voltage MPPT voltage range 90-520V Full load MPPT voltage range 210-520V Max. input current 16A/16A Max. short circuit current 24A/24A MPPT number/Max input strings number Battery...
  • Page 59 9. Specifications User Manual Technical Data S6-EH1P6K-L-EU Output AC(Grid side) Rated output power Max. apparent output power 6.6kVA Operation phase 1/N/PE Rated grid voltage 220 V/230 V The grid voltage range 187-253 V Rated grid frequency 50 Hz/60 Hz AC grid frequency range 45-55 Hz/55-65 Hz Rated grid output current 27.3 A/26.1 A...
  • Page 60 9. Specifications User Manual Technical Data S6-EH1P6K-L-EU General data Dimensions(W/H/D) 405*480*205mm Weight 24.18kg Topology High frequency insolation (for battery) Operation temperature range -25℃～+60℃ Ingress protection IP66 <35 dB (A) Noise emission Cooling concept Natural convection Max.operation altitude 4000m G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, Grid connection standard...
  • Page 61 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Please adhere to the actual products in case of any discrepancies in this user manual.
