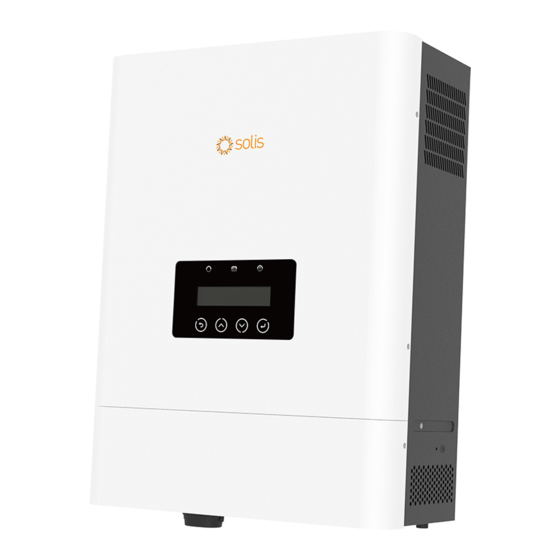

S5 EO Series Off-grid Inverter
Instruction Manual
Ver 1.1
Ginlong Technologies Co., Ltd.
No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo,
Zhejiang, 315712, P.R.China.
Tel: +86 (0)574 6578 1806
Fax: +86 (0)574 6578 1606
Ginlong Technologies Co., Ltd.
Please adhere to the actual products in case of any discrepancies in this user manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5 EO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ginlong S5 EO Series

Summary of Contents for Ginlong S5 EO Series

  • Page 1 S5 EO Series Off-grid Inverter Instruction Manual Ver 1.1 Ginlong Technologies Co., Ltd. No. 57 Jintong Road, Binhai Industrial Park, Xiangshan, Ningbo, Zhejiang, 315712, P.R.China. Tel: +86 (0)574 6578 1806 Fax: +86 (0)574 6578 1606 Ginlong Technologies Co., Ltd. Please adhere to the actual products in case of any discrepancies in this user manual.
  • Page 2 Smart O&M In order to improve our products and provide you with higher quality services, this device has a built-in data logging module for collecting relevant information during operation (such as power generation data, fault data) Commitment: 1. We will only collect, use and process your device information for the purpose of improving our products and services.

  • Page 3: Table Of Contents

    Contents 1. Introduction ………………………………………………………………………………………………………………… 1.1 Product Description ………………………………………………………………………………………………………… 1.2 System Description ………………………………………………………………………………………………………… 1.3 Packaging ………………………………………………………………………………………………………………………… 2. Safety & Warning ……………………………………………………………………………………………………… 2.1 Safety …………………………………………………………………………………………………………………………………… 2.2 General Safety Instructions …………………………………………………………………………………………… 2.3 Notice For Use ………………………………………………………………………………………………………………………… 2.4 Notice for Disposal …………………………………………………………………………………………………………………… 3. Installation ………………………………………………………………………………………………………………………………...

  • Page 4: Introduction

    1. Introduction 1. Introduction 1.2 System Description 1.1 Product Description Solis EO series inverter is designed for off-grid systems. This series of inverters is highly flexible and can work with or without the grid to provide Internet APPL Web power to the load. It has battery connections for low voltage batteries and up to 2 PV (Solis Cloud) string inputs.

  • Page 5: Safety & Warning

    2. Safety & Warning 2. Safety & Warning 2.1 Safety The following types of safety instructions and general information appear in this document as WARNING: described below: To reduce the risk of fire, over-current protective devices (OCPD) are DANGER: required for circuits connected to the inverter. “Danger”...

  • Page 6: Notice For Use

    3. Installation 2. Safety & Warning 3.1 Select a Location for the Inverter To select a location for the inverter, the following criteria should be considered: WARNING: Exposure to direct sunlight may cause the output power to decrease. It must install Solis requires using two magneto-thermic automatic switchs with an RCD the inverter indoors and avoid direct sunlight and rain.

  • Page 7: Mounting The Inverter

    3. Installation 3. Installation 3.2 Mounting the Inverter 3.3 Preparation Before connecting all wiring, please take off the bottom cover by removing the screws as shown below. WARNING: The inverter must be mounted vertically. Select the mounting height of the inverter and mark the mounting holes. It’s recommended to install the inverter tighten by using two M5 screws.

  • Page 8: Pv Input Terminal Assembly

    3. Installation 3. Installation 3.4 PV Input Terminal Assembly 3.5 Assembling the AC Connector Please ensure the following before connecting the inverter: To protected from over current of AC input, Solis recommends installing a separate AC breaker between the inverter and the AC input power source. Make sure the voltage of the PV string will not exceed the max DC input voltage This AC breaker should be at least 32A.

  • Page 9: Grounding

    3. Installation 3. Installation 3.6 Grounding 5. The dry contact is used for an onsite generator. To effectively protect the inverter, a grounding methods must be performed. Connect the external grounding terminal. Description Signal Name To connect the grounding terminal on the heat sink, please follow the steps below: RELAY1_NC 1.

  • Page 10: Battery Terminal Components

    3. Installation 3. Installation 3.7 Battery Terminal Components 3.7.3 Battery Connection 3.7.1 Lead-acid Battery To avoid DC Arcs, Solis recommends installing a DC switch between the battery(s) and inverter. If you choose a lead-acid battery, the allowed battery types are AGW-type, Ensure the cables within the suitable specifications as shown in the table below.

  • Page 11: Battery Communication

    3. Installation 3. Installation 3.8 Battery Communication 3.9 External Communication The EO Series inverter uses RS485 cable to communicate with port to RS-485 is one standard communication interface which can transmit the real data from BMS/NTC communicate with the BMS of Lithium and NTC of Lead-acid battery. inverter to PC or other monitoring equipments.

  • Page 12: Parallel Connection

    3. Installation 3. Installation 3.10 Parallel Connection 3.11 External Communcation Stick Connection Inverter provides a Monitoring port which can collect data from inverter and transmit it to The "-P" type in the EO series inverter has the parallel capability and can be operated monitoring-website via an external monitoring data collector.

  • Page 13: Commissioning

    4. Commissioning 5. Operation 4.1 Preparation of Commissioning 5.1 Startup guide Ensure all the devices are accessible for operation, maintenance and service. Please follow the steps to complete the initial setup process. Check and confirm that the inverter is firmly installed. Steps: Ensure space for ventilation is sufficient for one inverter or multiple inverters.
  • Page 14 5. Operation 5. Operation 5.3.1 General Information 5.3.3 Energy Records The example displays are shown in the following figures. Sub-sections of the Yield information section include: 1. Battery Yield The user can view it by pressing the up and down keys. 2.
  • Page 15 5. Operation 5. Operation 5.3.4 BMS Information The example displays are shown in the following figures. Display Description The user can view it by pressing the up and down keys. Values are for reference only. LoadE Total: Shows total load energy. 0000000kWh Display Description...

  • Page 16: Settings

    5. Operation 5. Operation 5.4 Settings 5.4.4.1 Work Mode The following submenus are displayed when the Settings menu is selected: This section describes the working logic of each work mode of the inverter. 1. Set Time/Date 2. Set Address Display Description 3.

  • Page 17: Advanced Infomation

    5. Operation 5. Operation 5.5 Advanced Information 5.5.2 Warning Message The display shows the warning messages appeared on screen, can store in total 500pcs. Press the ESC key to return to the previous menu. NOTE: This area is for fully qualified and accredited technicians only. Msg000: T:01-01 00:02 D:0000 Enter the password 1000 to access to the following sections.
  • Page 18 5. Operation 5. Operation 5.5.5 Yield Profile 5.5.5.1 Energy Battery Display Description Shows the battery charge & discharge energy. Ground Voltage: Shows the voltage to the ground. 000.0V Display Description Relay-Fault Func.: Shows the status of the relay. Shows the battery charge energy. Battery Charge GRID-INTF.02 Func.: Shows the interference status from the grid.

  • Page 19: Advanced Settings

    5. Operation 5. Operation 5.6 Advanced Settings Display Description NOTE: This area is for fully qualified and accredited technicians only. BackupVoltage: Shows the backup voltage 220.0V-230.0V Enter the password 1000 to access to the following sections. BackupFrequency: 1. Output Settings Shows the backup frequency 50.0Hz or 60.0Hz...
  • Page 20 5. Operation 5. Operation Display Description Battery Select: PYLON_LV Max Charge Current. Max Charge Curr Figure 5.28 Battery Select Max Charge Current from Grid. Max Grid Chg Cur 5.6.2.2 Battery Wakeup The battery wake-up button will put low voltage on the battery port to wake up the battery. Force Charge Current Setting.
  • Page 21 5. Operation 5. Operation For lead acid batteries, these are the following settings: Display Description Display Description The lowest discharge voltage. If grid is not available， battery may be continuously discharged until it reaches Batt Under Max Charge Current. Max Charge Curr Volt.
  • Page 22 5. Operation 5. Operation 5.6.3.1 Power Switch 5.6.3.4 ISO Set When choose On. Inverter will generate power (default) ISO set is the monitoring of insulation resistance to ground. The PV+\- input has an When choose Off ,inverter stops generating. equivalent impedance value to ground, and ISO limit is the protection threshold setting of the impedance value.
  • Page 23 5. Operation 5. Operation 5.6.3.7 No-Batt PV Gen 5.6.4 Equalizer Settings This function is to allow PV to support loads when there is no battery. This function is designed to realize the equalizing charging stage for the batteries. When select "Disable", loads are supported fully by the grid when battery is not available, The battery voltage may be unbalanced due to the difference in the cells.

  • Page 24: Maintenance

    6. Maintenance 7. Troubleshooting Solis EO series inverters do not require any regular maintenance. However, cleaning the heatsink The inverter has been designed in accordance with international interconnection will help the inverter dissipate heat and increase the lifespan. The dirt on the inverter can be cleaned standards for safety and electromagnetic compatibility requirements.
  • Page 25 7. Troubleshooting 7. Troubleshooting Alarm Message Failure description Alarm Message Failure description Solution Solution 1. Restart System and ensure whether the G_AB Over Volt Bus Under Volt DC Bus is undervolgage fault is existing. G_BC Over Volt G_CA Over Volt DC Bus is unbalanced 1.
  • Page 26 7. Troubleshooting 7. Troubleshooting Alarm Message Failure description Alarm Message Failure description Solution Solution 1. Restart System and ensure whether the 1. Check whether Backup port wire is normal. 12V Power Err 12V power undervoltage fault is existing. Backup Over Volt Bypass overvoltage fault 2.

  • Page 27: Specifications

    7. Troubleshooting 8. Specifications Model S5-EO1P4K-48 S5-EO1P4K-48-P Alarm Message Failure description Solution Parallel Capability Yes,max. 10 units 1. Restart DSP to ensure whether the fault Dsp Comm Fail DSP communication fault is existing. Battery 1. Restart the Battery to ensure whether the BMS Alarm Alarm fault of BMS Battery Type...
  • Page 28 8. Specifications 8. Specifications Model S5-EO1P4K-48 S5-EO1P4K-48-P Model S5-EO1P5K-48 S5-EO1P5K-48-P Protection Parallel Capability Yes,max. 10 units Output Over Voltage Protection Battery Outout Over Current Protection Battery Type Lithium/ Lead-acid Short Circuit Protection Rated Battery Voltage 40-60V Surge Protection Max. Charge / Discharge Current 100A Inverter Output Temperature Compensation Protection...
  • Page 29 8. Specifications Model S5-EO1P5K-48 S5-EO1P5K-48-P Protection Output Over Voltage Protection Outout Over Current Protection Short Circuit Protection Surge Protection Temperature Compensation Protection Gerneral Data Dimension(H*W*D) 450*335*160mm Net Weight 14kg Relative Humidity 5% to 95% (Non-condensing) Operation Temperature Range -10℃-60℃ Storage Temperature Range -25℃-60℃...
